Sioux Chief 696-G2313CF Oxbox 4 in x 5-1/2 in x 3-1/2 in Washing Machine CPVC Supply Box

Product Description

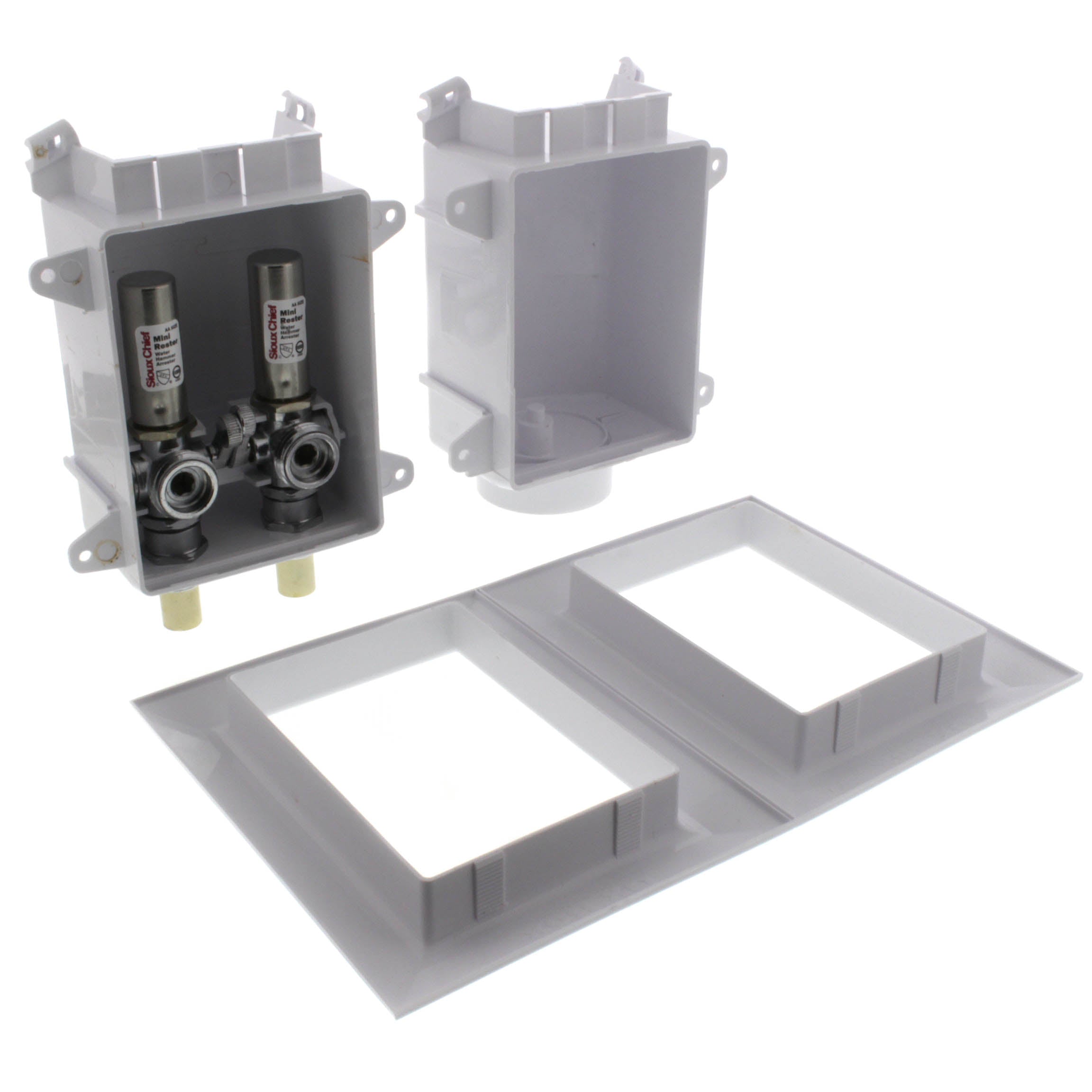

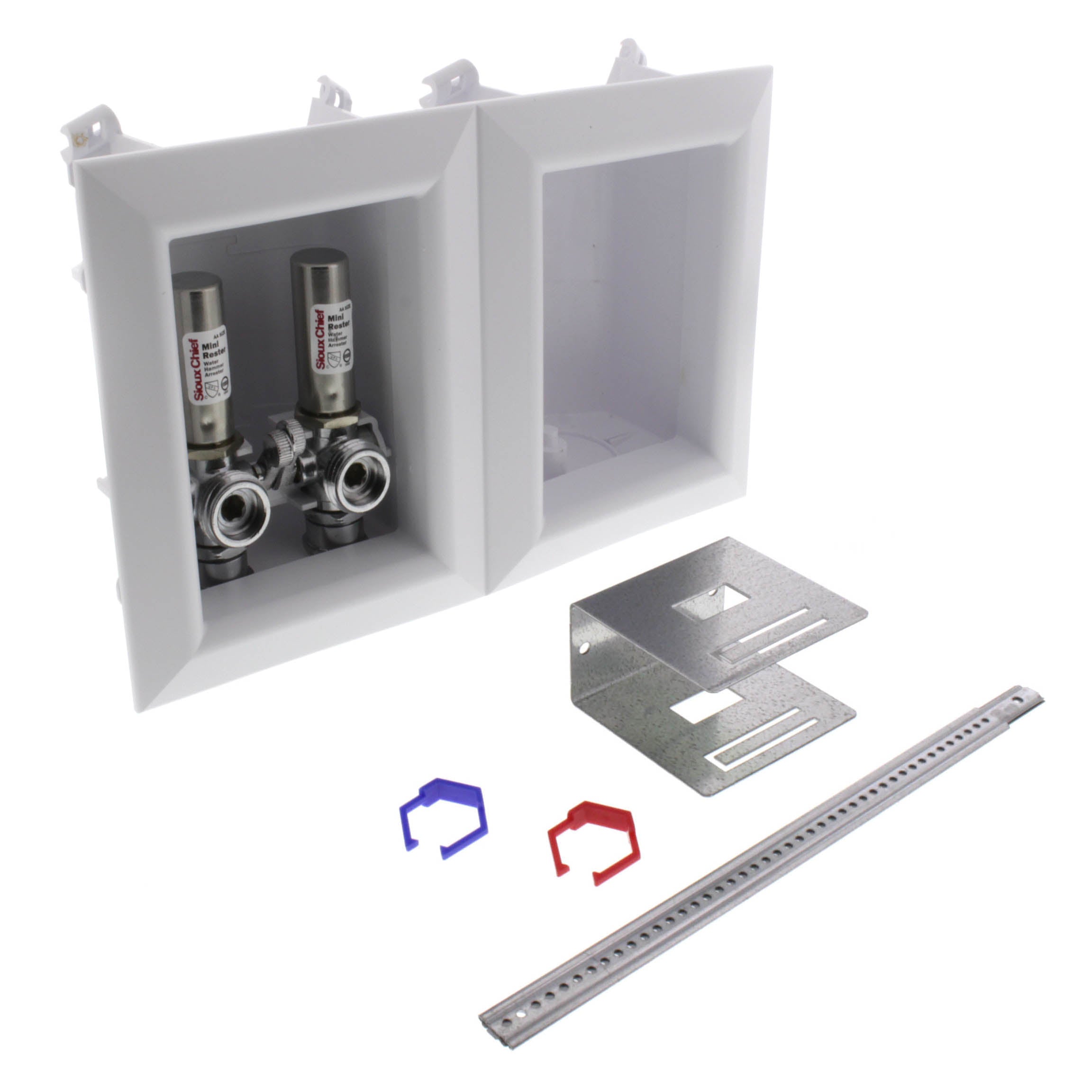

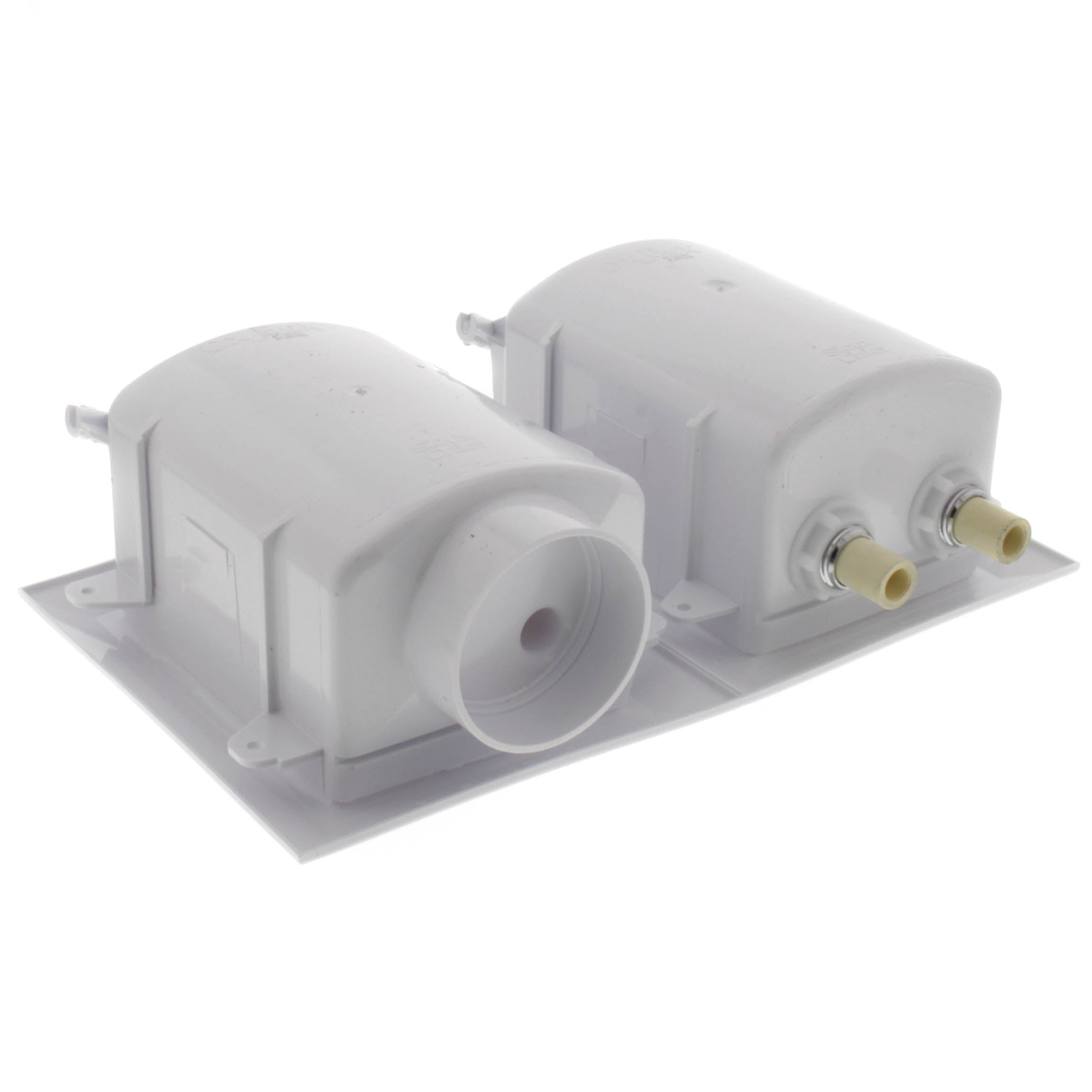

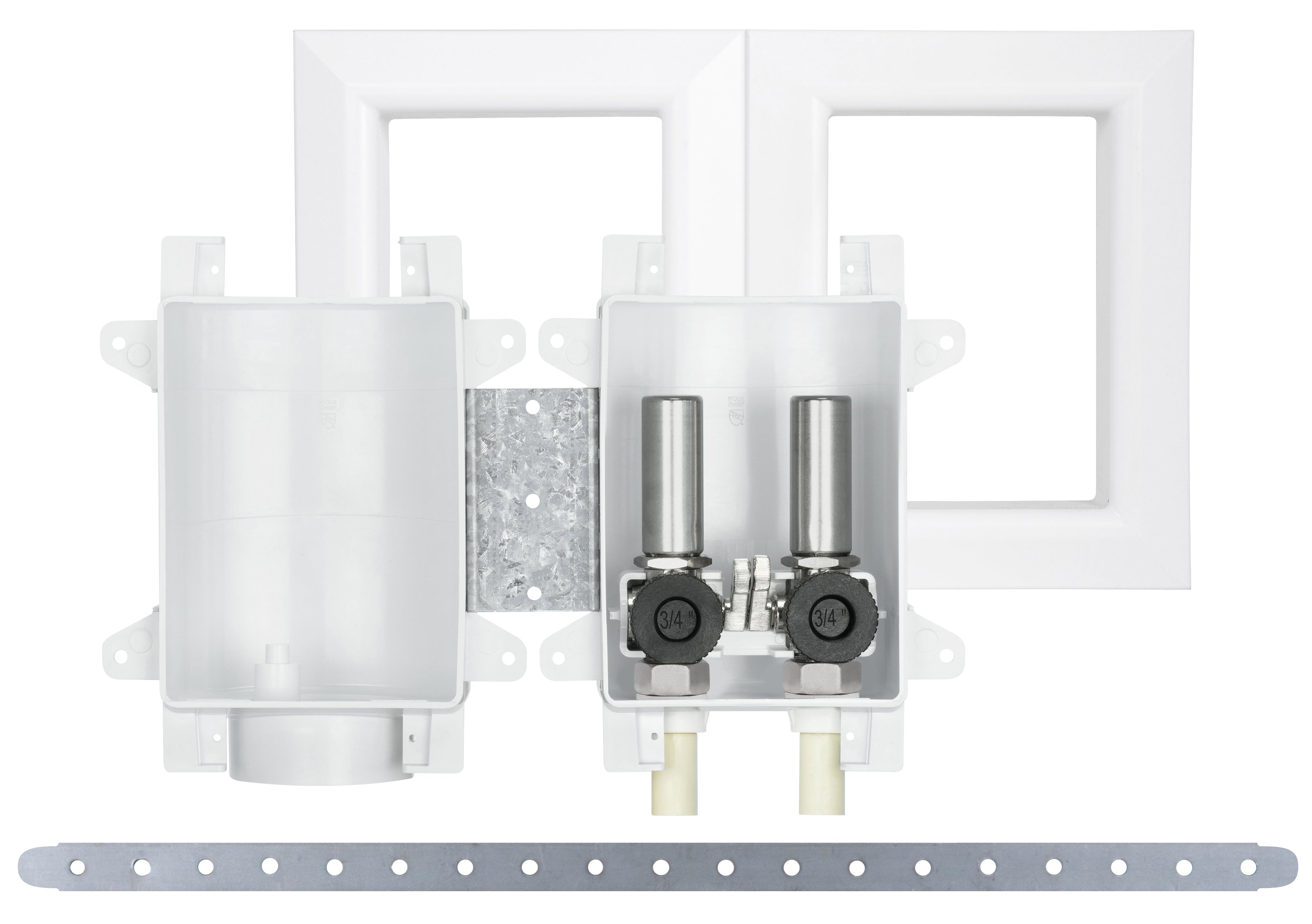

The SIOUX CHIEF 696-G2313CF Oxbox includes high-quality quarter-turn ball valves with 3/4" male hose-thread connections. Separate boxes offer flexible layout. Boxes mount securely to stud or over studs and includes debris covers. It separates supply and drainage systems into two stud bays.

• Includes high-quality quarter-turn ball valves with 3/4" male hose-thread connections
• Separate boxes offer flexible layout
• Boxes mount securely to stud or over studs

Product Highlights

The product features durable ABS boxes with quarter-turn ball valves and water hammer arrestors. It mounts securely over stud or between studs.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G2313CF
• Country of Origin: CN

Technical Specifications

• Application: Washing Machine
• Inlet Size: 1/2"
• Outlet Size: 3/4"
• Inlet Type: Male CPVC
• Outlet Type: Male Threaded
• Max Pressure (PSI): 150
• Max Temp (F): 250°F
• Material: ABS
• Product Type: Washing Machine Outlet Box
• Lead Free: Yes
• Description: No Lead Ox Box Wash Cpvc W/arresters
• Manufacturer: Sioux Chief
• PDW MFR CAT: 696-G2313CF
• Pittman #: 209169
• Arrester?: Yes
• Connection 1 Size: 1/2 IN
• Connection 1 Type: MIP
• Connection 2 Size: 3/4 IN
• Connection 2 Type: Hose Thread
• Fire-Rated?: No
• Type: With Frame
• Brand: SIOUX CHIEF
• MFR Part No: 696-G2313CF
• TSCO Part Number: 424431
• Warranty Length: Limited Lifetime
• Domestic/Import: Import
• Pressure Rating: 250 psig
• Temperature Rating: 250 deg F
• Series: 696
• For Use With: Washing Machine
• Suitable For Use With: Washing Machine
• Dimensions: 7-1/4 in H x 11-1/2 in W
• Manufacturer #: 696-G2313CF
• Item Height: 5
• Item Width: 9
• MPN: 696-G2313CF
• Model: 696-G2313CF
• UPC: 739236100320
• Country of Origin: United States
• ASME: ASME A112.18.1
• Box Material: Plastic
• Collection: OxBox™
• Connection Size: 1/2
• Height: 7-1/4
• Length: 3-1/2
• NSF: NSF 61-G
• NSF Certified: Yes
• Overall Box Size: 4 in x 5-1/2 in x 3-1/2 in
• Supply Box Connection Type: CPVC
• Supply Box Type: Washing Machine
• Water Hammer Arrestor Included: Yes
