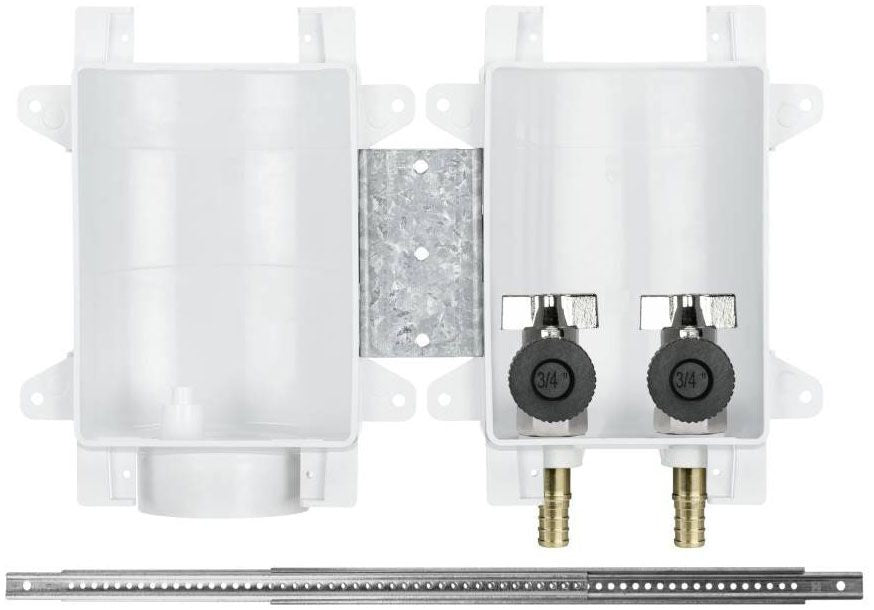

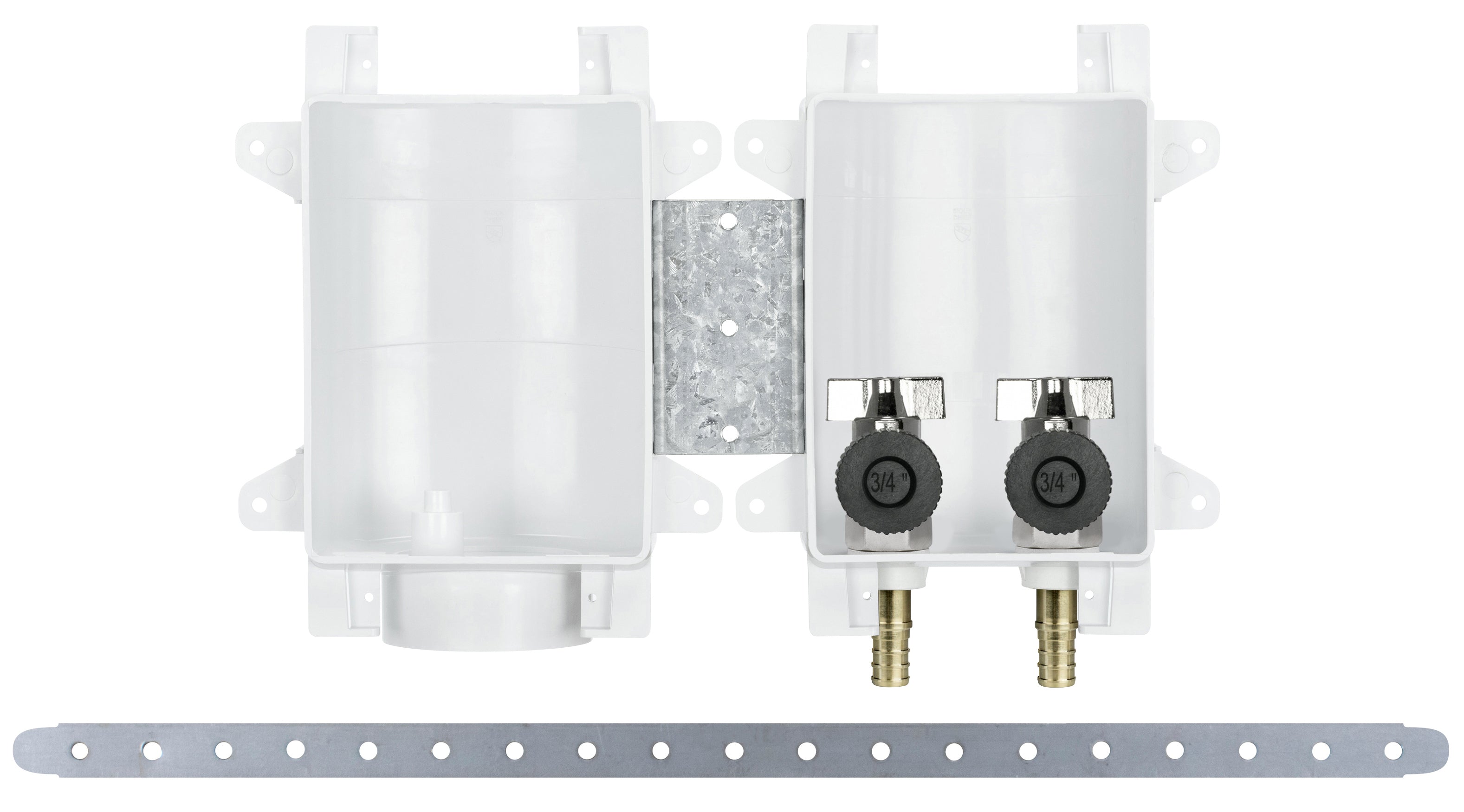

Sioux Chief 696-G2303XR OxBox Washing Machine Outlet Box 1/2 in PEX F1807

Product Description

The SIOUX CHIEF 696-G2303XR OxBox™ is designed for residential and commercial plumbing supply and drainage systems. It includes high-quality quarter-turn ball valves with 3/4" male hose-thread connections. Supply lines can be mounted from above or below. The unit can be secured directly over a vertical stud or between studs.

• Includes high-quality quarter-turn ball valves
• 3/4" male hose-thread connections
• Supply lines can be mounted from above or below

Product Highlights

The OxBox washing machine outlet box features durable ABS construction, quarter-turn ball valves, and a design that mounts securely over or between studs.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G2303XR
• Country of Origin: Domestic

Technical Specifications

• Arrester?: No
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 3/4 IN
• Connection 2 Type: Hose Thread
• Fire-Rated?: No
• Type: Outlet Box
• Brand: Sioux Chief
• Series: 696
• Material: ABS
• Size: 1/2 in
• Specifications: F1807 Crimp PEX
• Manufacturer: Sioux Chief
• Manufacturer #: 696-G2303XR
• MFR Part No: 696-G2303XR
• Inlet Size: 1/2 in
• Inlet Type: PEX F1807
• Outlet Size: 3/4 in
• Outlet Type: PEX F1807 Crimp
• Pressure Rating: 250 psig
• Temperature Rating: 250 deg F
• Standard Approvals: ASME A112.18.1, NSF-372, IAPMO/UPC Listed
• Model: 696-G2303XR
• UPC: 739236102010
• MPN: 696-G2303XR
• Country of Origin: United States
• Temperature Rating (deg): 200 deg F
