Sioux Chief 696-G2303VF No Lead Oxbox Wash F3347 W/Frame

Product Description

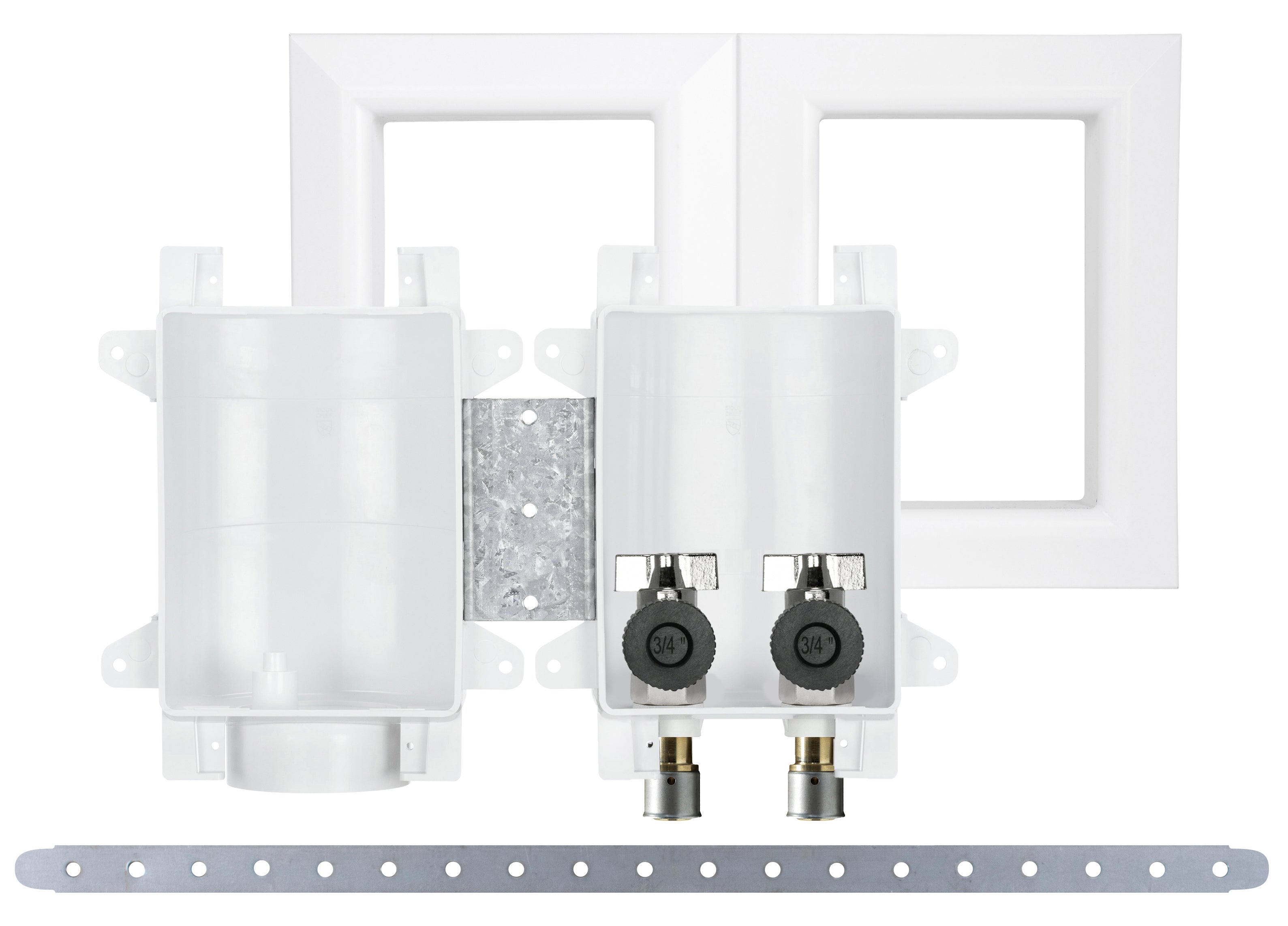

The SIOUX CHIEF 696-G2303VF No Lead Oxbox Wash F3347 with Frame is designed for residential or commercial plumbing supply and drainage systems. It accommodates supply lines from above or below and can be secured directly over a vertical stud or between studs using the provided bracket. The unit features a fire-rated ABS frame and a chrome-plated forged brass valve.

• Lead Free
• 1/2 in Inlet with Viega PureFlow PEX
• 3/4 in Outlet with Viega PureFlow PEX

Product Highlights

This washing machine outlet box features easy installation and durable construction, suitable for various plumbing configurations.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G2303VF
• Country of Origin: CN

Technical Specifications

• Brand: SIOUX CHIEF
• Item Number: 696-G2303VF
• Material: ABS
• Inlet Type: Viega® PureFlow® PEX
• Outlet Type: Viega® PureFlow® PEX
• Pressure Rating: 250 psig
• Inlet Size: 1/2 in
• Outlet Size: 3/4 in
• Temperature Rating: 250 deg F
• Domestic/Import: Domestic
• Series: 696
• Type: Washing Machine Box
• Includes Box: Yes
• Connection Type: 1/2 Viega Pex
• Includes Water Hammer Arresters: No
• Valve Type: Single Lever
• Separate Boxes: Yes
• Height (inches): 5.50
• Depth (inches): 3.50
• Fire Rated: Yes
• Faceplate Height (inches): 7.25
• Valve Mount: Bottom
• Collection: OxBox™
