Sioux Chief 696-G1010XR OxBox Ice Maker Outlet Box With MiniRester 1/2 inches PEX F1807 Crimp

Product Description

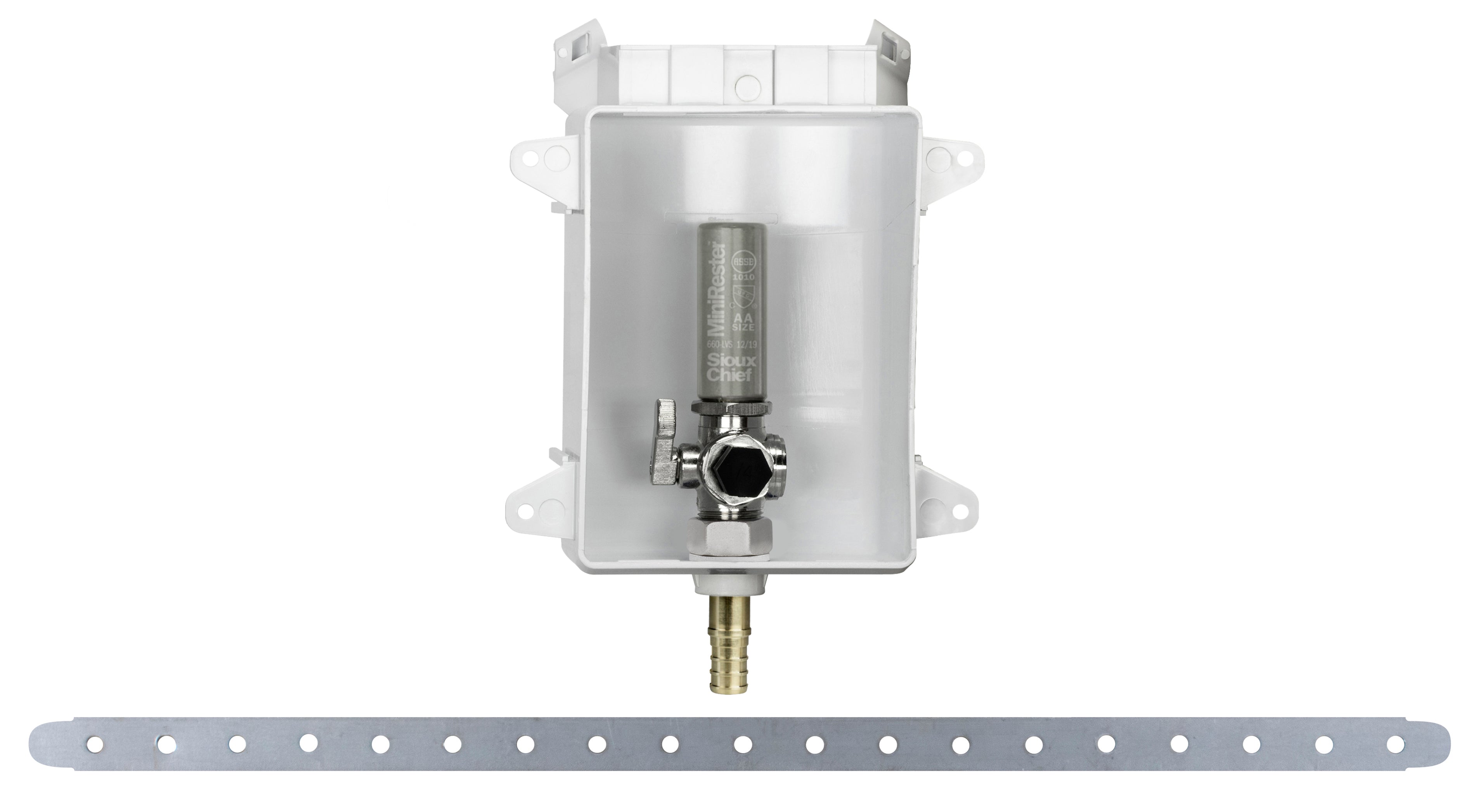

The SIOUX CHIEF 696-G1010XR OxBox ice maker outlet box with MiniRester water hammer arresters is designed for plumbing supply systems. It features a quarter-turn ball valve with a 1/4" OD compression connection. The durable ABS box mounts securely to a stud or between studs. Debris covers are included to protect the box and valve.

• Durable ABS box mounts securely to stud or between studs
• Features a quarter-turn ball valve with 1/4" OD compression connection
• Includes debris covers to protect box/valve from dust, mud, and paint

Product Highlights

The OxBox provides a secure and protected outlet for ice maker connections, ensuring a reliable plumbing supply system.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G1010XR
• Country of Origin: CN

Technical Specifications

• Description: No Lead Oxbox Im F1807 Mini Roughin Pack W/arrester
• Manufacturer: Sioux Chief
• PDW MFR CAT: 696-G1010XR
• Pittman #: 222789
• Arrester?: Yes
• Brand: OxBox
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 1/4 IN
• Connection 2 Type: Comp.
• Fire-Rated?: No
• Type: No Frame
• Series: 696
• Material: ABS
• Manufacturer #: 696-G1010XR
• Inlet Size: 1/2 in
• Inlet Type: PEX F1807
• Outlet Size: 1/4 in
• Outlet Type: Compression
• Pressure Rating: 250 psig
• Temperature Rating: 250 deg F
• Standard Approvals: ASME A112.18.1, ASSE 1010 Listed, IPC Certified, IAPMO Listed, UPC Certified
• Equivalent Part Number: 696G1010XR
