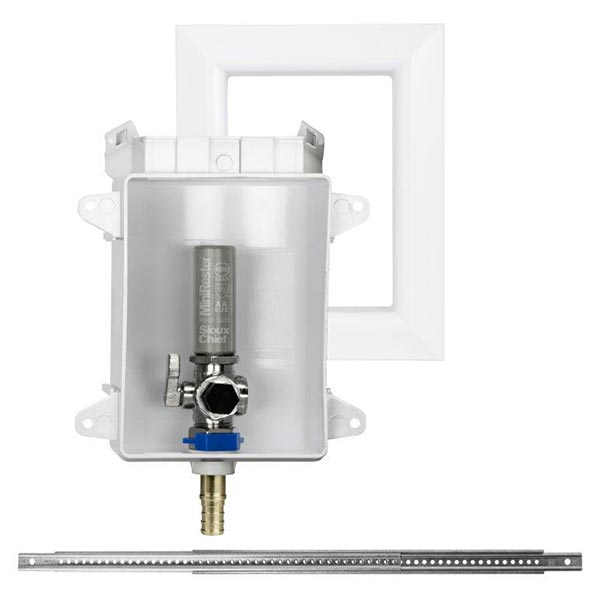

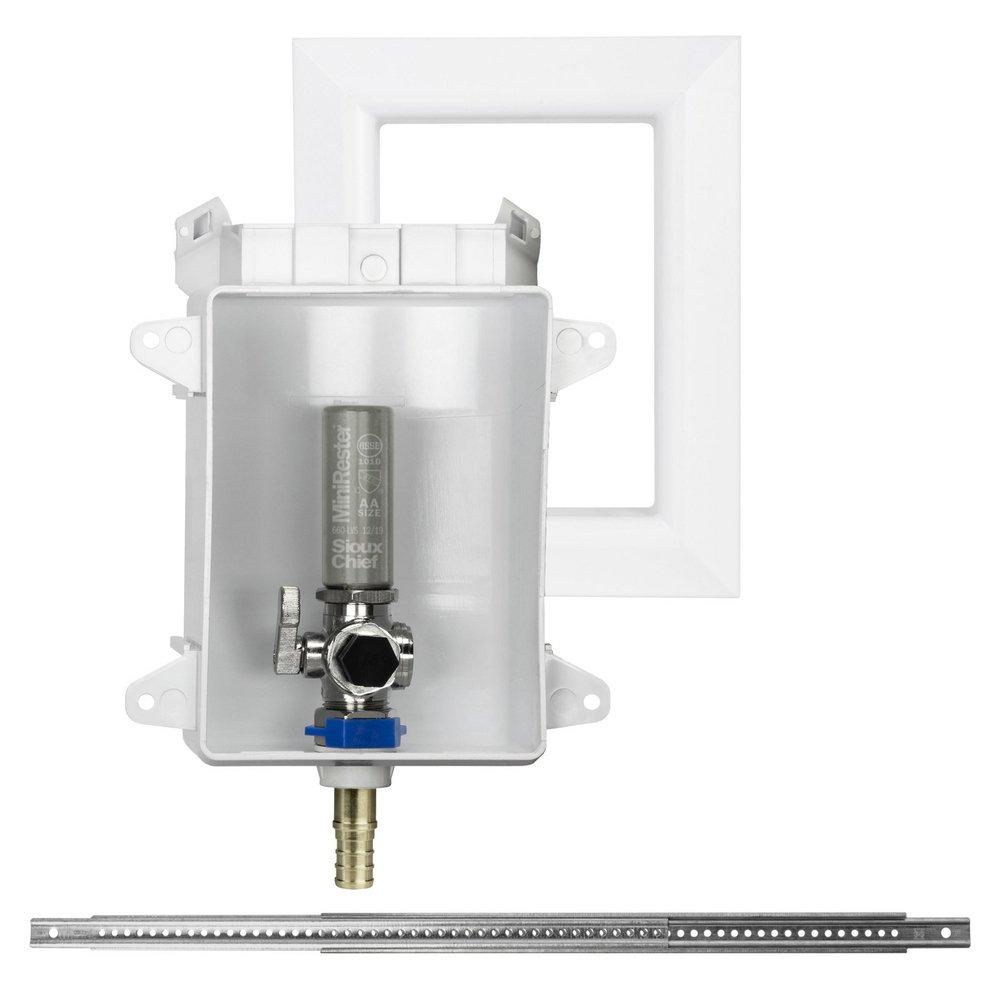

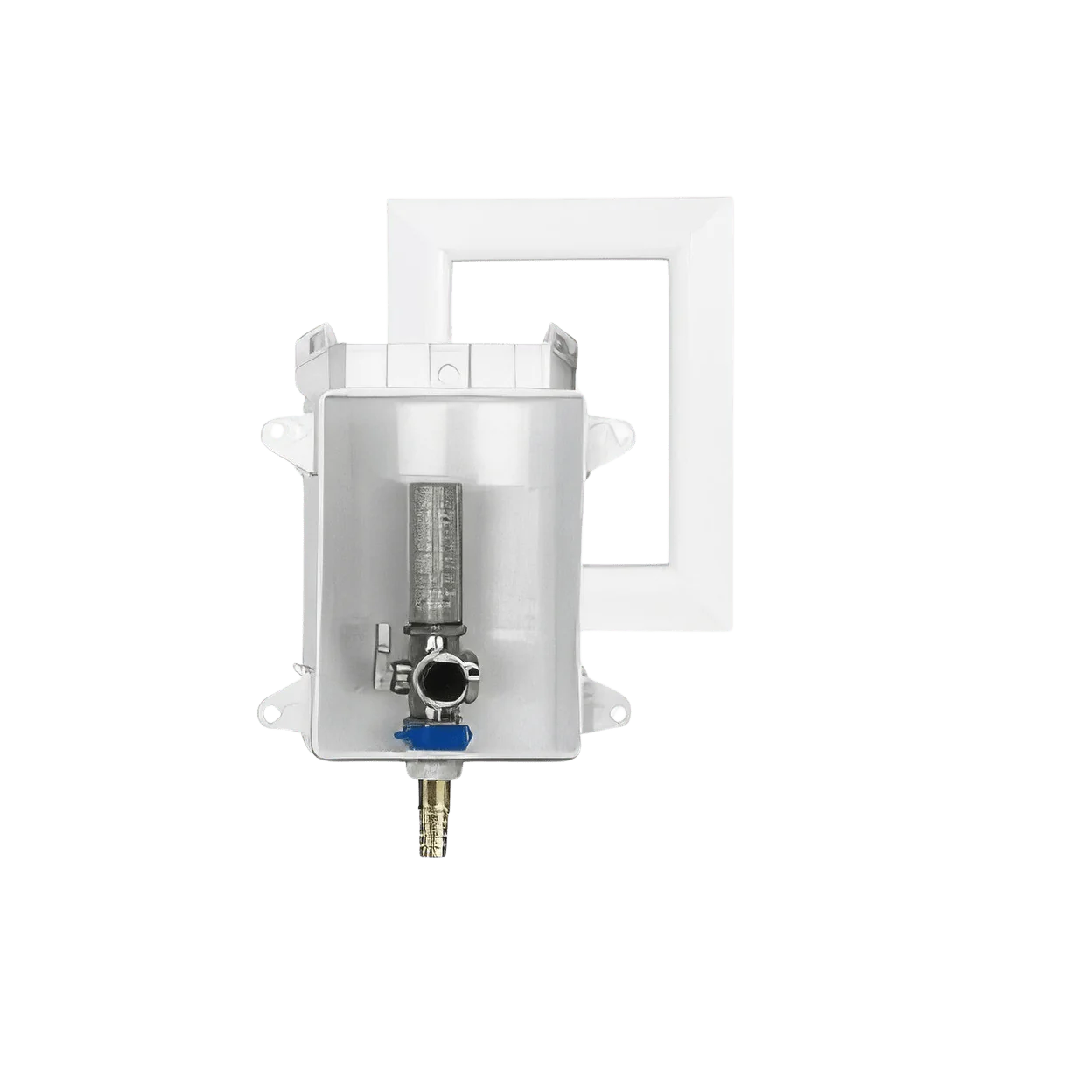

Sioux Chief 696-G1010XF OxBox 1/2 inch 1/4 inch PEX Ice Maker Outlet Box

Product Description

The Sioux Chief 696-G1010XF is an ice maker outlet box designed for plumbing applications. It features a 1/2 inch F1807 PEX connection and is constructed from durable ABS plastic. The dimensions of the box are four inches wide, three and a half inches deep, and five and a half inches tall. This product is compliant with various standards including ASME A112.18.1, IAPMO, CUPC, and NSF 372, ensuring it is lead-free and safe for residential use.

• Includes a male threaded/female soldered valve
• Comes with a frame, bracket, debris cover, and water hammer arrester
• High-quality 1/4 turn ball valve for reliable operation

Product Highlights

This ice maker supply box is ideal for installations that require secure mounting and reliable water flow. It accommodates both top and bottom supply lines and includes features that protect it from construction debris.

Product Information

Standard Information

• Material: ABS Plastic
• Valve Type: 1/4 Turn Ball

Technical Specifications

• Dimensions: 4 inches width x 3.5 inches depth x 5.5 inches height
• Face Plate Size: 5.75 inches width x 7.25 inches height
• Pressure Rating: 100 PSIG
• Temperature Rating: 250°F
• Applicable Standards: ASME A112.18.1, IAPMO, CUPC, NSF 372
