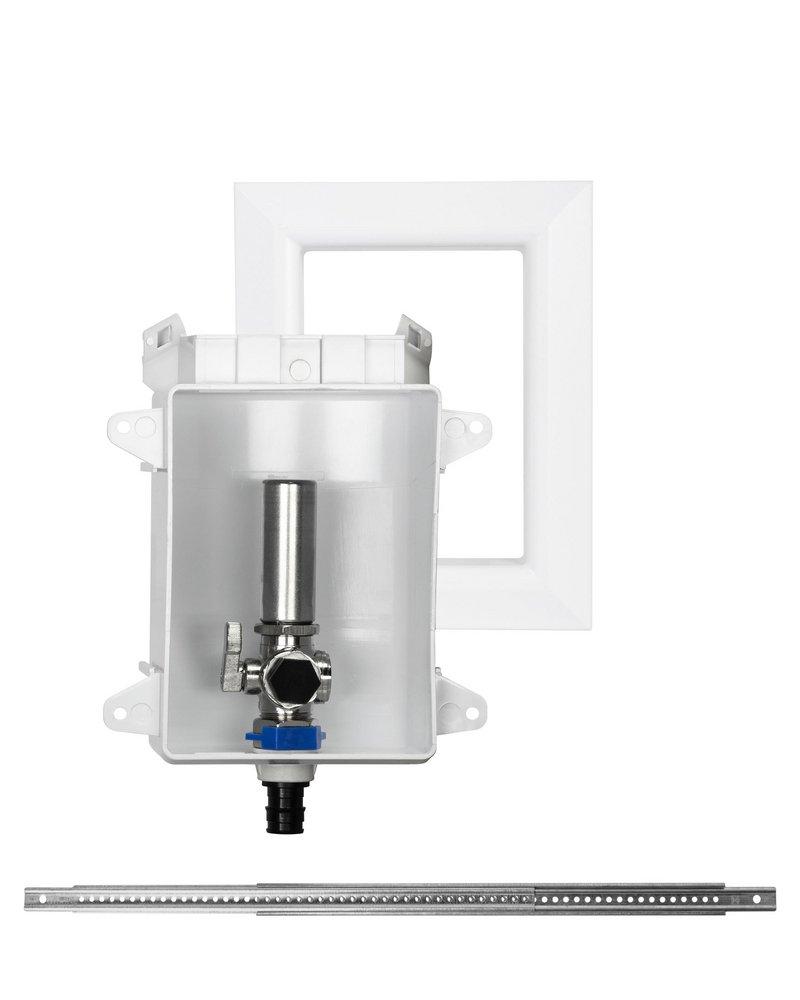

Sioux Chief 696-G1010WF OxBox 4 x 5-1/2 x 3-1/2 in. Ice Maker F1960 PEX Supply Box

Product Description

Sioux Chief offers the 696-G1010WF, a well-designed ice maker outlet box. This unit measures four inches in width, three and a half inches in depth, and five and a half inches in height. It features a 1/2 inch F1960 PEX grip connection and a 1/4 inch compression outlet. This reliable supply box is suitable for ice maker applications.

• Integrated water hammer arrester minimizes noise in plumbing systems.
• Includes high-quality quarter-turn ball valves.
• Debris covers are included to protect from drywall mud and paint.

Product Highlights

This product installs securely to studs and can be mounted easily for top or bottom supply. Designed for durability, the ABS construction stands up to job site use.

Product Information

Standard Information

• Manufacturer: Sioux Chief
• MPN: 696-G1010WF

Technical Specifications

• Material: ABS Plastic
• Valve Type: 1/4 turn
• Height: 5-1/4 inches
• Width: 4 inches
• Depth: 3-1/2 inches
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees F
• Frame Opening Size: 3-3/8 inches width x 5-1/8 inches height
