Sioux Chief 696-G1010MR OxBox 4 in x 5-1/2 in x 3-1/2 in Ice Maker Female Sweat Supply Box

Product Description

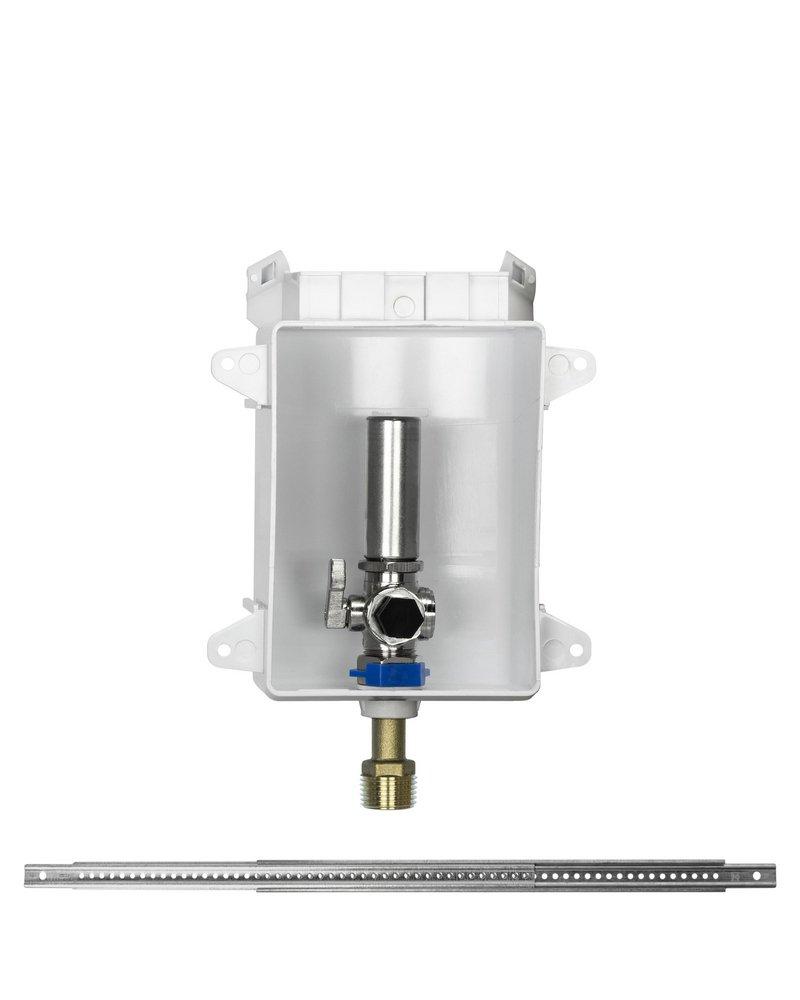

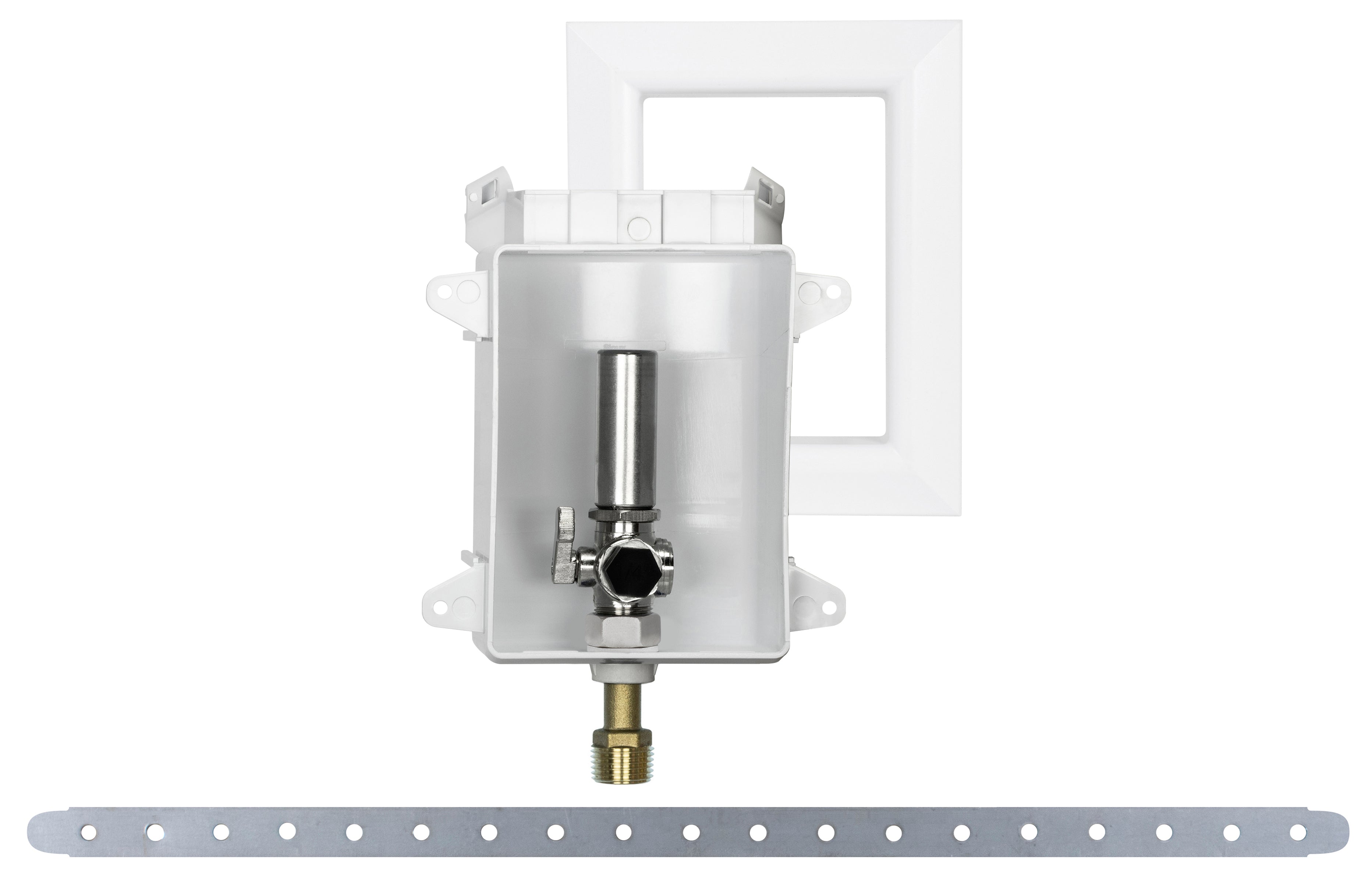

The SIOUX CHIEF 696-G1010MR OxBox™ is an ice maker female sweat supply box with dimensions of 4 in x 5-1/2 in x 3-1/2 in. It features a quarter-turn ball valve with a 1/4" OD compression connection. The durable ABS box mounts securely to a stud or between studs. Debris covers are included to protect the box and valve from dust, mud, and paint.

• Lead-Free
• Boxes mount securely to stud or over studs
• Durable ABS stands up to job site abuse

Product Highlights

The OxBox ice maker outlet box includes debris covers to protect from drywall mud and paint during construction.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G1010MR
• Country of Origin: CN

Technical Specifications

• Connection: 1/2 in
• Application: Ice Maker
• Product Type: Ice Maker Outlet Box
• Outlet Size: 1/4"
• Outlet Type: Compression
• Inlet Size: 1/2"
• Inlet Type: Sweat
• Material: ABS
• Includes: Water Hammer Arrestor
• Features: 1/4 Turn Ball Valves
• Max Temp (F): 250°F
• Max Pressure: 250 psig
• Lead Free: Yes
• Arrester?: Yes
• Brand: OxBox™
• Connection 1 Size: 1/2 IN
• Connection 1 Type: FSWT
• Connection 2 Size: 1/4 IN
• Connection 2 Type: Comp.
• Fire-Rated?: No
• Type: With Frame
