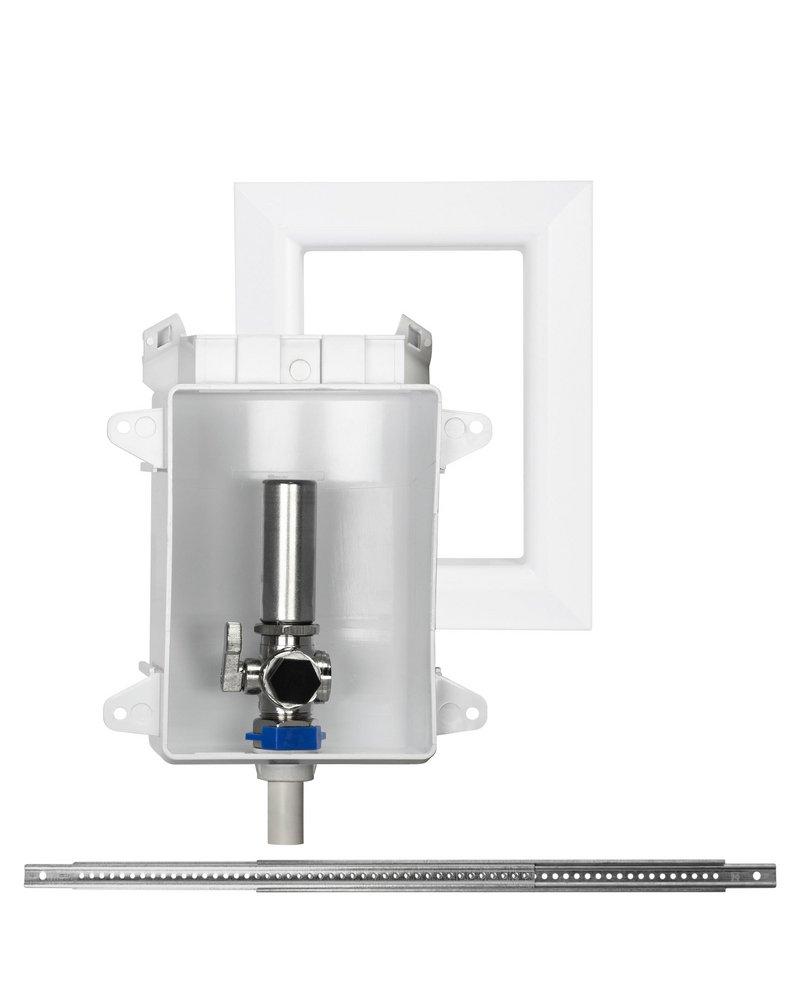

Sioux Chief 696-G1010CF OxBox 4 in x 5-1/2 in x 3-1/2 in Ice Maker CPVC Supply Box

Product Description

The Sioux Chief 696-G1010CF is an Ice Maker CPVC Supply Box designed for reliable performance. This supply box is made from durable ABS and includes a high-quality quarter-turn ball valve for effective operation. The box allows for convenient installation with options to mount supply lines from either the top or bottom, making it adaptable for various plumbing configurations.

• Includes a MiniRester water hammer arrester to reduce water hammer effects.
• Debris covers protect valves during construction and painting.
• Meets industry standards for safe operation and installation.

Product Highlights

This unit is ideal for both residential and commercial plumbing applications. Its design ensures easy access for maintenance and installation while providing long-lasting durability to withstand job site conditions.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696-G1010CF
• Material: ABS

Technical Specifications

• Inlet Size: 1/2 inch
• Inlet Type: CPVC Male
• Outlet Size: 1/4 inch
• Outlet Type: Compression
• Pressure Rating: 250 psig
• Temperature Rating: 250 deg F
• Dimensions: 5-3/4 inches W x 7-1/4 inches H
• Series: 696
