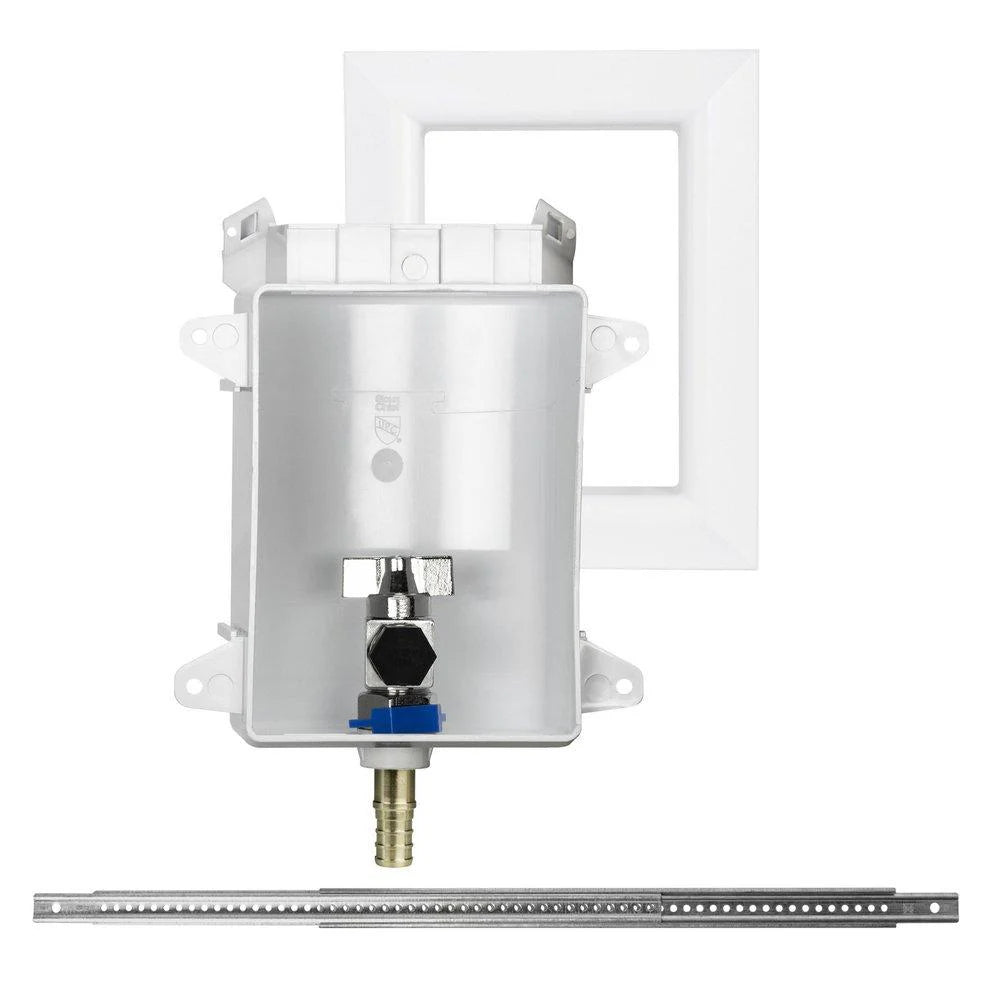

Sioux Chief 696-G1001XF OxBox 3-1/2 x 5-3/4 x 7-1/4 in. Dishwasher or Toilet PEX F1807or F2159 Supply Box

Product Description

The Sioux Chief 696-G1001XF is a lead-free OxBox designed for use as a supply box for dishwashers and toilets. This unit supports PEX connections using the F1807 standard. The box dimensions are three and one-half inches by five and three-quarter inches by seven and one-quarter inches. This product integrates easily into your plumbing system, ensuring reliability and efficiency.

• Designed for easy installation with no lead materials
• Includes high-quality quarter-turn ball valves
• Mounts securely to stud or over studs

Product Highlights

This supply box simplifies plumbing installation and maintenance by allowing for secure and straight supply stops that are recessed into the wall. The included debris covers protect against drywall mud and paint.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696-G1001XF

Technical Specifications

• Dimensions: 7-1/4 inches H x 5-3/4 inches W
• Material: ABS
• Connection Type: 1/2 inch PEX F1807 Crimp
• Pressure Rating: 150 psi
• Max Temperature: 250 degrees Fahrenheit
• Includes: Frame, 1/4 Turn Ball Valves
• Country of Origin: US
• Mfg Standards/Approvals: ASME A112.18.1, IPC Certified, NSF-61, UPC/IAPMO Listed
