Sioux Chief 696-G1000XR Ice Maker Outlet Box 4 in x 5-1/2 in x 3-1/2 in

Product Description

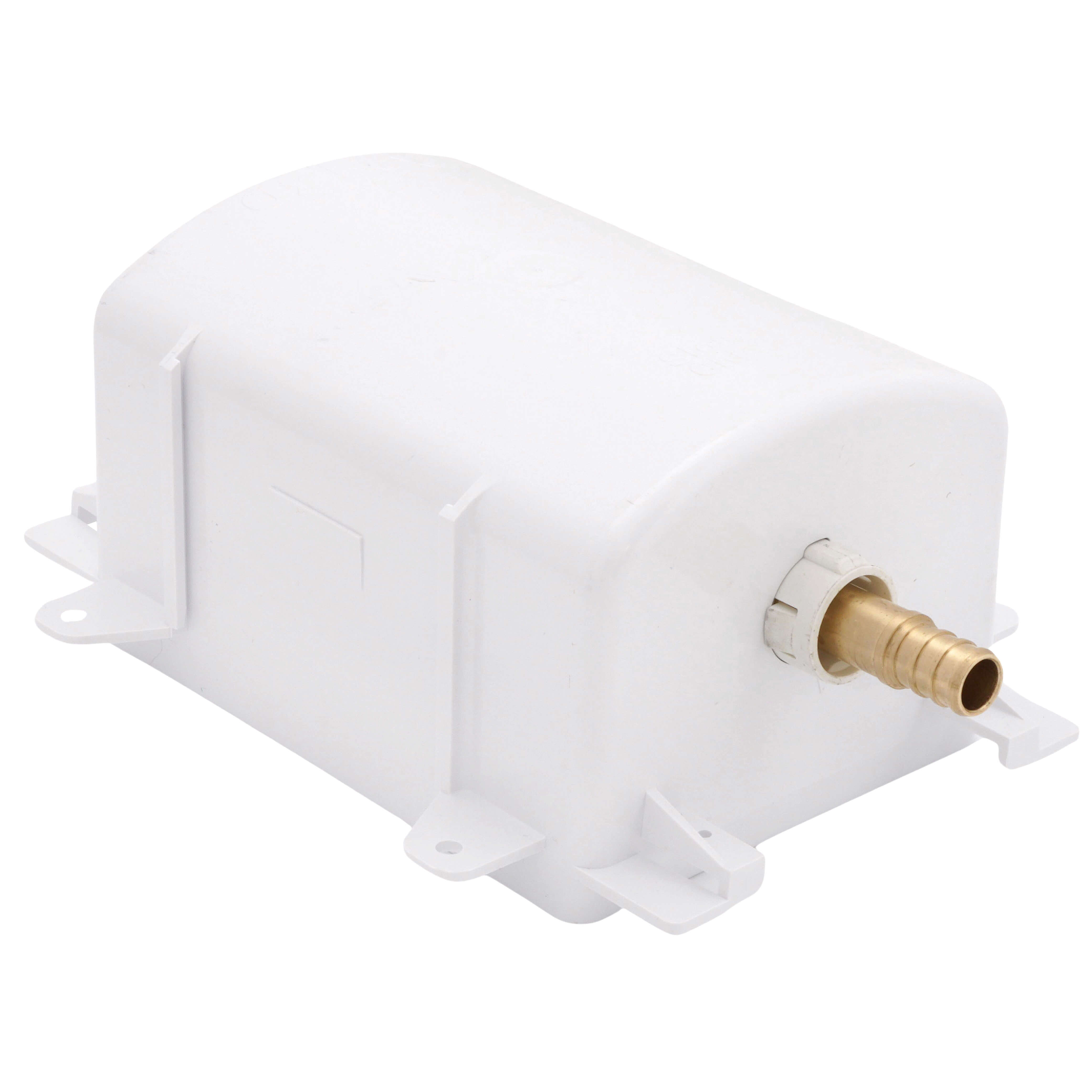

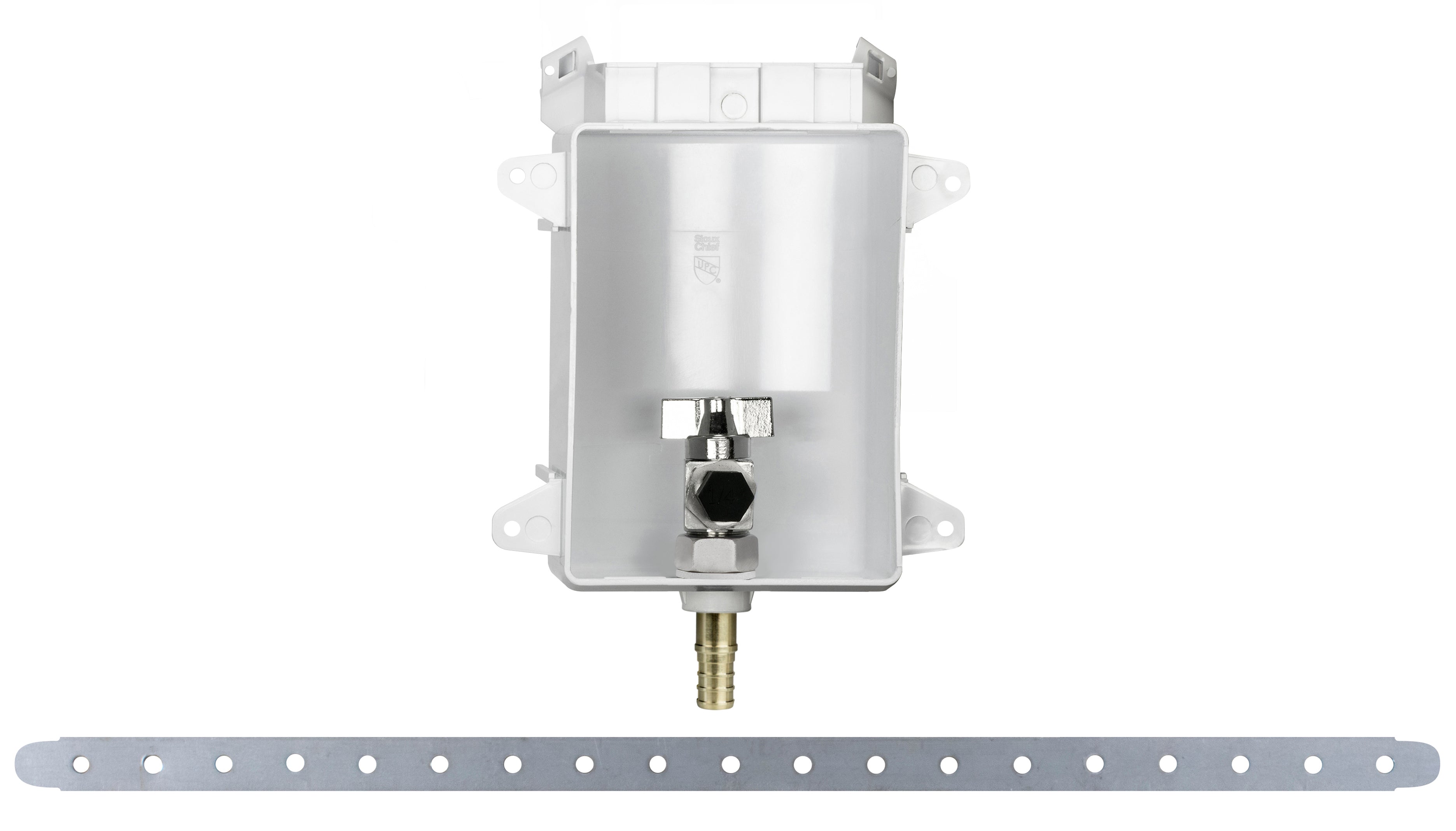

The SIOUX CHIEF 696-G1000XR Ice Maker Outlet Box allows for straight and secure supply stops recessed into the wall. The white ABS box mounts securely to stud or over studs and includes a high-quality quarter-turn ball valve and debris covers. Designed for plumbing systems, it allows for mounting with supply lines from top or bottom, on-stud or between-studs.

• Allows for straight and secure supply stops recessed into the wall
• Includes debris covers
• White ABS box mounts securely to stud or over studs

Product Highlights

Durable ABS construction ensures resistance to job site conditions. Features a quarter-turn ball valve and includes debris covers for protection during construction.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G1000XR
• Country of Origin: CN

Technical Specifications

• Application: Ice Maker
• Inlet Size: 1/2 in
• Inlet Type: PEX F1807
• Outlet Size: 1/4 in
• Outlet Type: Compression
• Max Pressure: 250 psig
• Max Temp (F): 250°F
• Product Type: Ice Maker Outlet Box
• Brand: SIOUX CHIEF
• Material: ABS
• Pressure Rating: 250 psig
• Temperature Rating: 250 deg F
• Standard Approvals: ASME A112.18.1, ASSE 1010, CSA B125.1-05
• Series: 696 Series
• Box Depth: 3-1/2 in
• Box Height: 5-1/2 in
• Box Width: 4 in
• Connection Size: 1/2 x 1/4 in
• Connection Type: PEX x Compression
• Faceplate Height: 7-1/4 in
• Faceplate Material: ABS
• Faceplate Width: 5-7/8 in
• Valve Material: Brass
• Valve Type: Quarter-Turn Ball
• Lead Free: Yes
