Sioux Chief 696-G1000MF OxBox 4 in x 5-1/2 in x 3-1/2 in Ice Maker Female Sweat Supply Box

Product Description

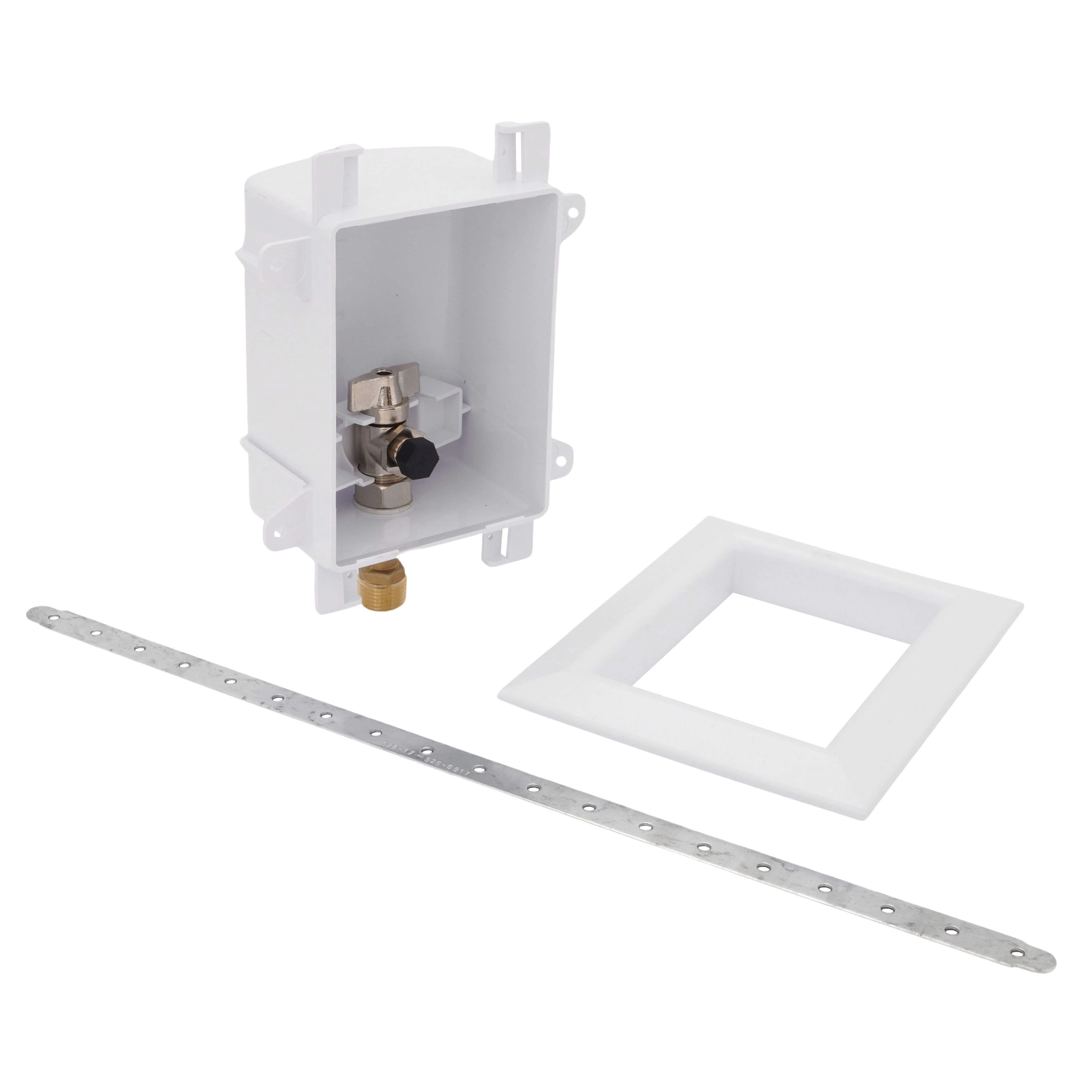

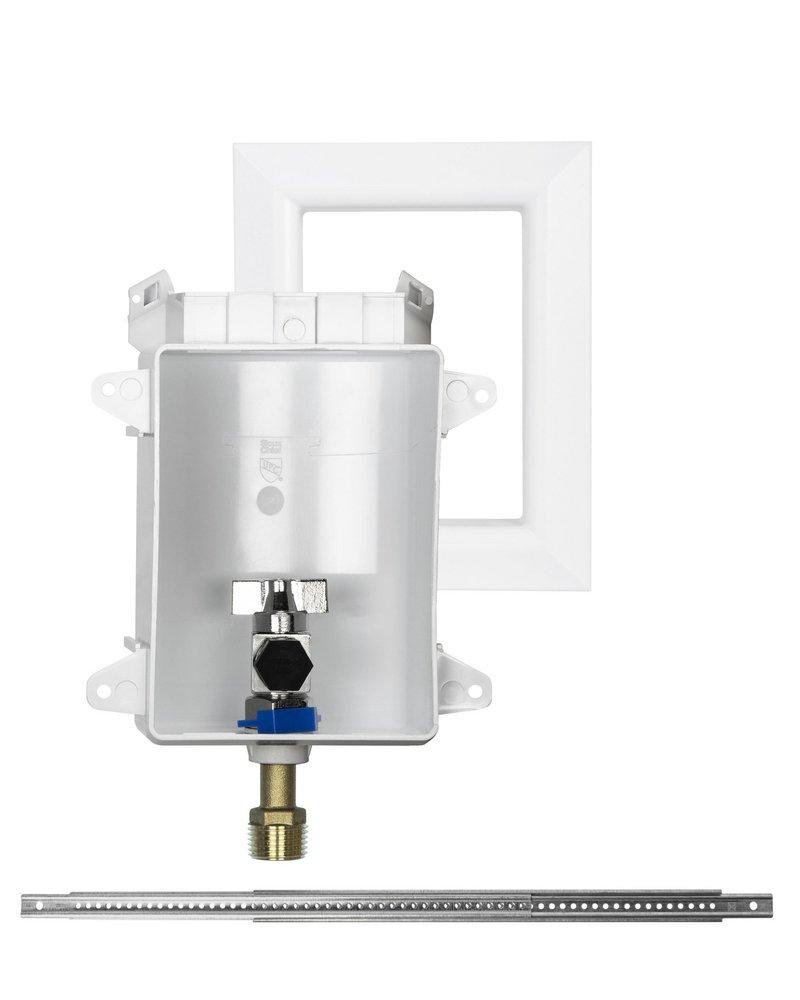

Sioux Chief presents the MPN 696-G1000MF, an OxBox Ice Maker Outlet Box designed to facilitate Ice Maker connections. This supply box is suitable for both residential and commercial plumbing applications.

• High quality quarter-turn ball valve included.
• Ductile ABS material enhances durability for tough job site conditions.
• Designed to easily mount on studs for top or bottom supply connections.

Product Highlights

This supply box includes features aimed at streamlining installation and maintaining functionality throughout its lifecycle.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696-G1000MF

Technical Specifications

• Dimensions: 1.658 inches wide x 1.616 inches high
• Inlet Size: 1/2 inch
• Material: ABS
• Pressure Rating: 250 psig
• Temperature Rating: 250 degrees Fahrenheit
• Outlet Size: 1/4 inch
• Outlet Type: Compression
• Series: 696
• Domestic/Import: Import
• Assembly Required: Yes
• Compliance: ASME A112.18.1, ASSE 1010, CSA B125.1-05
