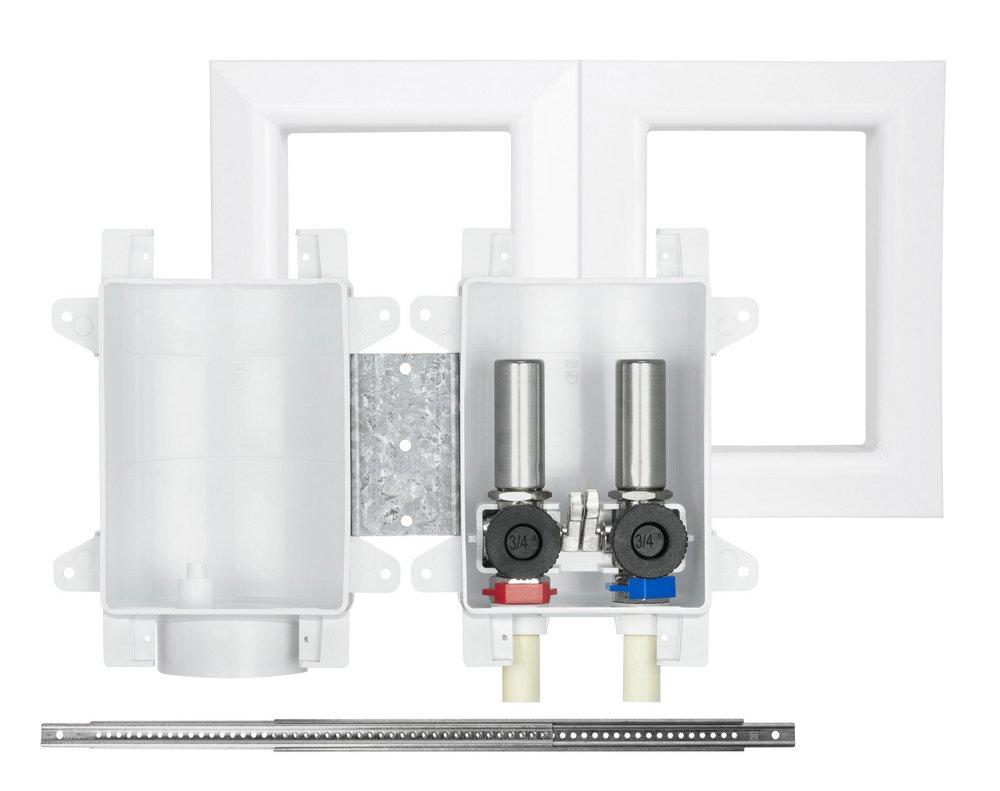

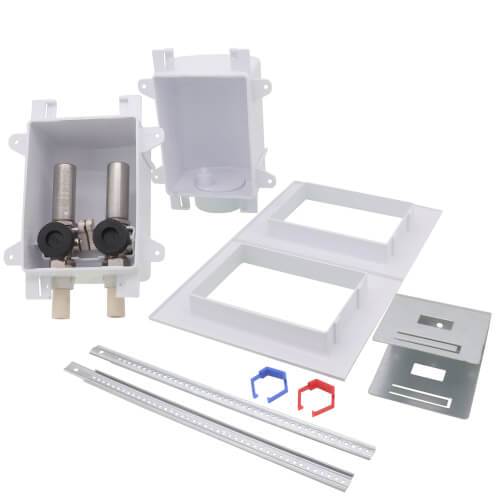

Sioux Chief 696-2313CF Ox Box 1/2 CPVC Washing Machine Outlet Box with Valve

Product Description

The Sioux Chief 696-2313CF Ox Box is a washing machine outlet box designed for plumbing supply and drainage. It features 1/2 inch CPVC male connections and is built to separate supply lines and drainage systems effectively.

• Mounts securely to studs
• Includes high-quality quarter-turn ball valve
• Made of durable ABS plastic

Product Highlights

This outlet box helps in efficient plumbing installations with its flexible layout options.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696-2313CF

Technical Specifications

• Material: ABS Plastic
• Valve Type: Quarter-Turn Ball Valve
• Pipe Connection: 1/2 Inch CPVC Male x 3/4 Inch Male Hose Threaded
• Box Size: 10 Inches Width x 3-1/2 Inches Depth x 5-1/2 Inches Height
• Face Plate Size: 11-1/2 Inches Width x 7-1/4 Inches Height
• Drain Connection: 2 Inch Hub
• Temperature Rating: 250 Degrees F
• Pressure Rating: 250 PSIG
• Certification: ASME A112.18.1, IAPMO, CUPC
