Sioux Chief 696-1001WF Ox Box Toilet/Dishwasher Outlet Box Standard Pack - 1/2 inches F1960 PEX Connection

Product Description

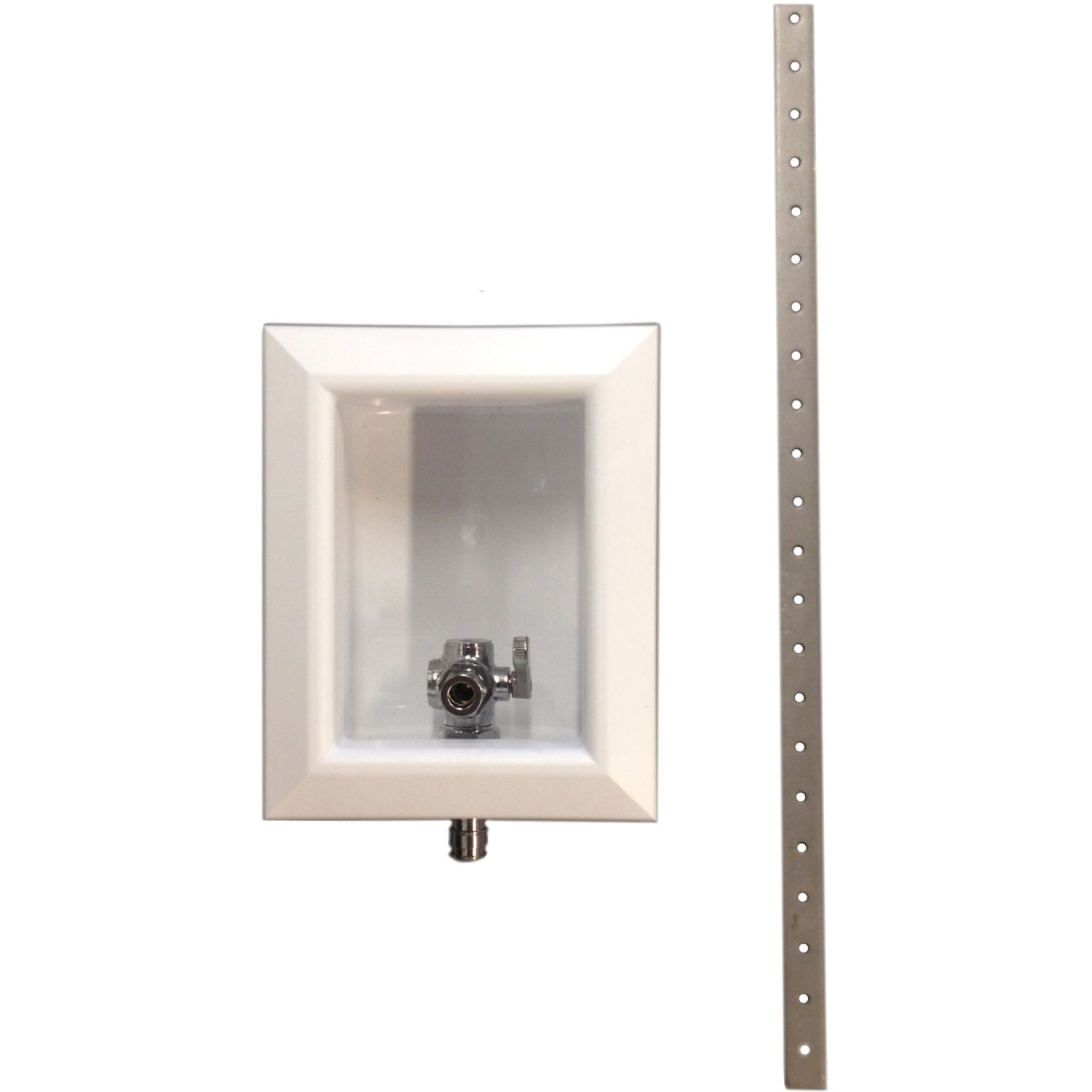

The Sioux Chief 696-1001WF Ox Box is designed for both toilet and dishwasher installations. This outlet box securely mounts to a stud and provides reliable supply stops that are positioned inside the wall for a clean look. Built with high-quality components, it includes quarter-turn ball valves with a three-eighths inch O.D. compression outlet connection and a one-half inch PEX connection.

• Securely mounts to stud for stability
• Equipped with quarter-turn ball valves
• Includes a debris cover for protection during installation

Product Highlights

The outlet box is ideal for use in both dishwasher and toilet applications.

Product Information

Standard Information

• Application: Dishwasher, Toilet
• Material: ABS

Technical Specifications

• Outlet Size: 3/8 inches
• Outlet Type: Compression
• Inlet Size: 1/2 inches
• Inlet Type: PEX Expansion
• Max Temperature (F): 250 degrees Fahrenheit
• Max Pressure (PSI): 150
• Brand: Sioux Chief
• MPN: 696-1001WF
