Product Description

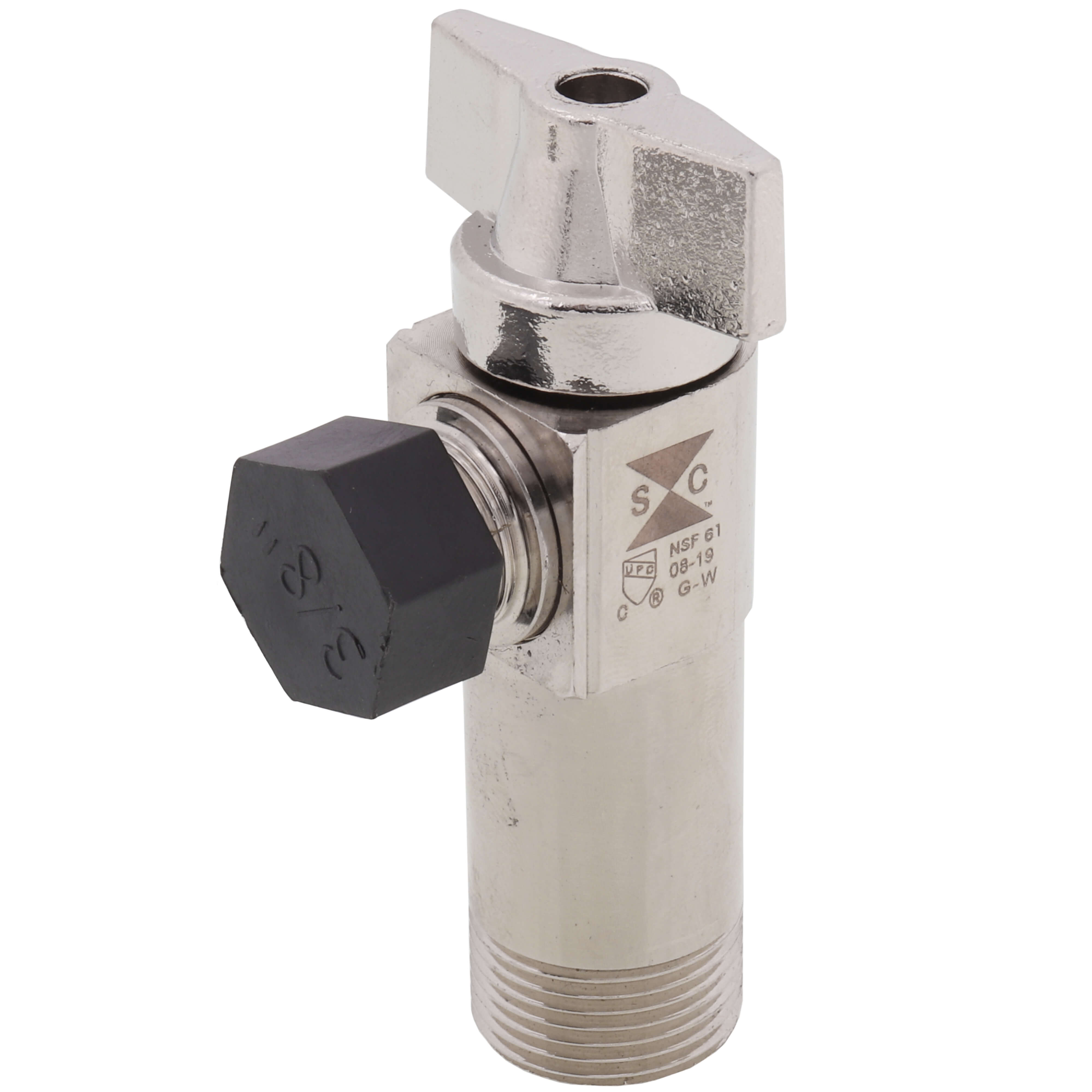

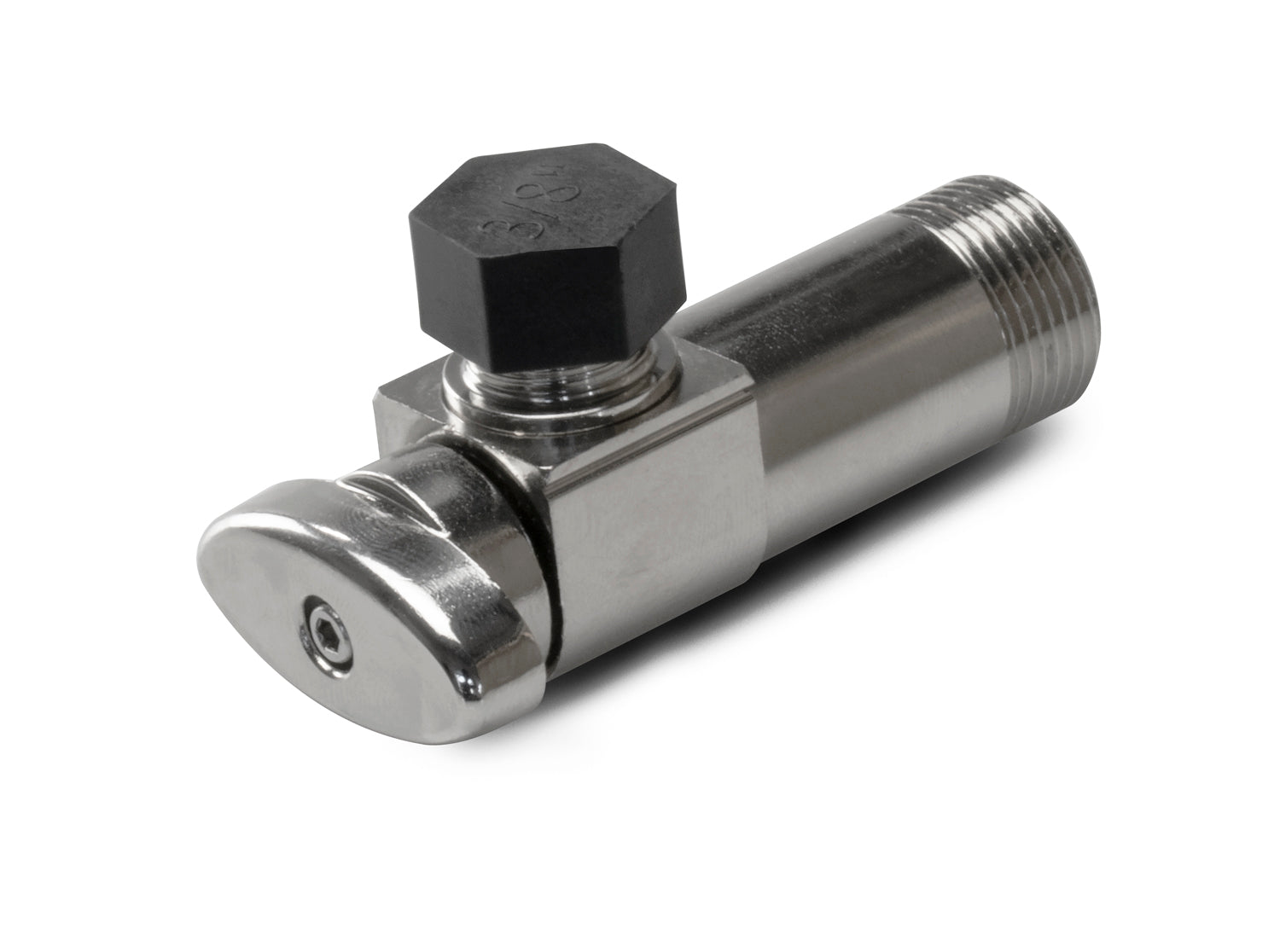

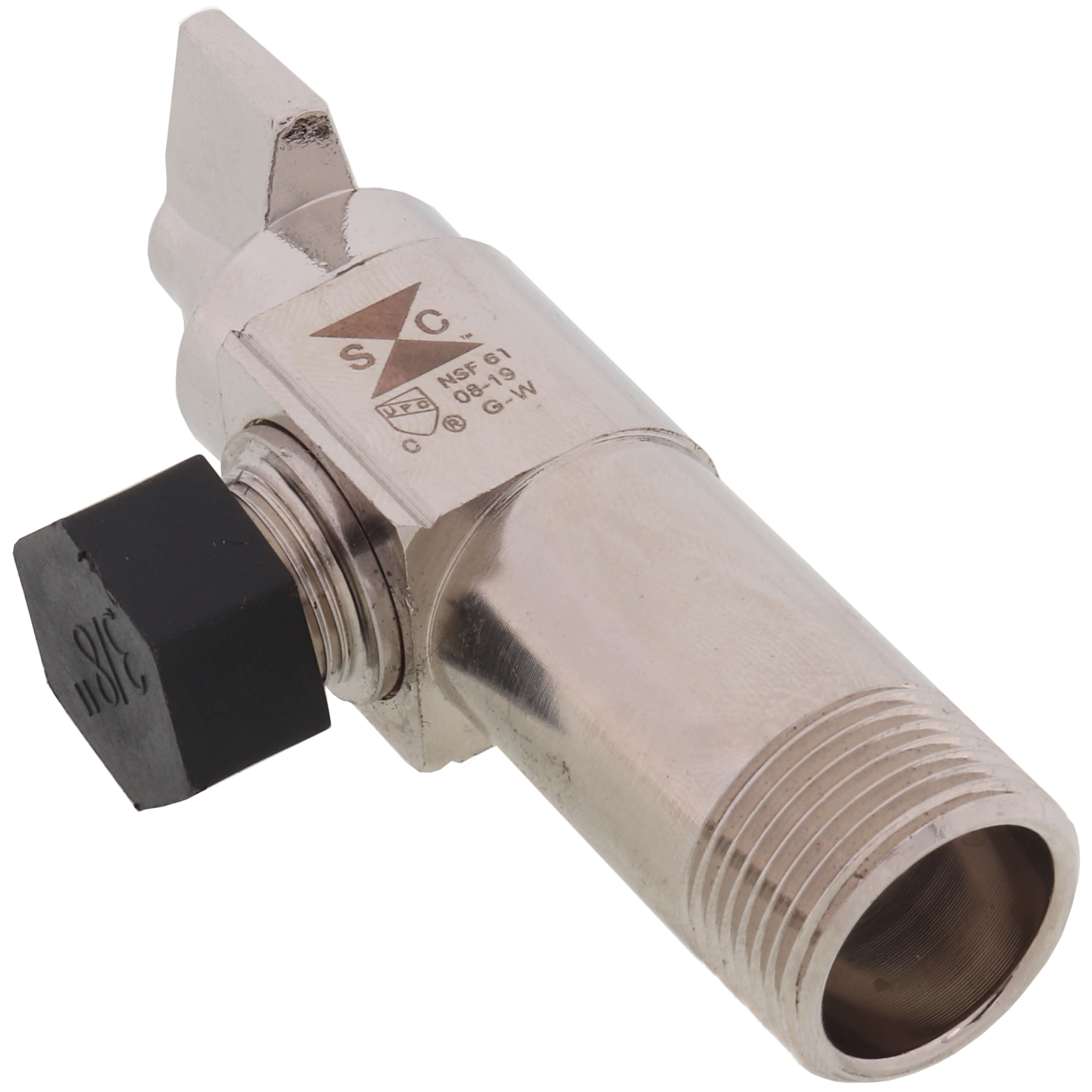

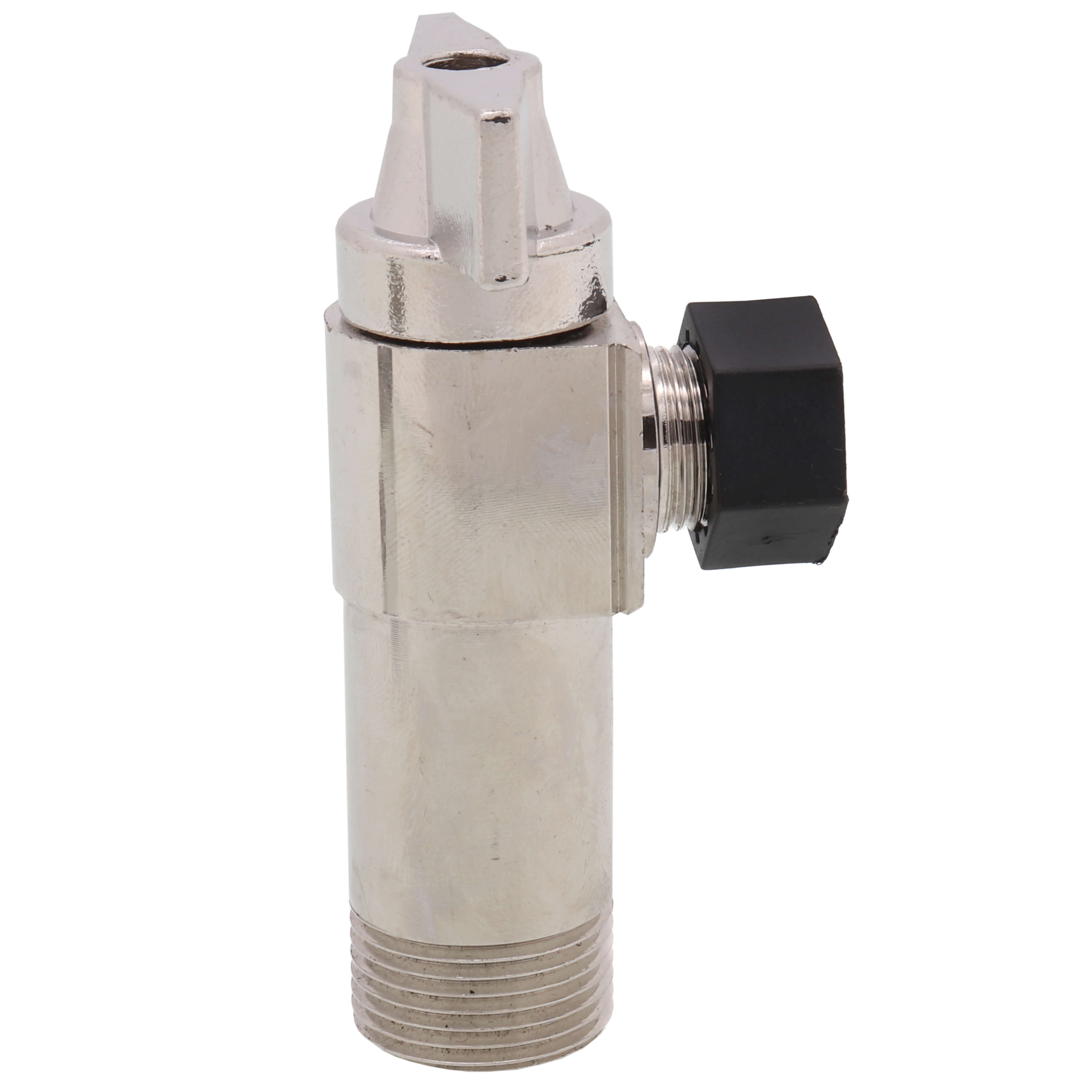

The SIOUX CHIEF 688-G1CE Extended Angle Stop Valve is engineered for Omegaplate applications, featuring an extended design for replacing standard valves requiring additional length. This valve provides angle stop functionality with a 5/8'' OD Comp. Thread inlet and a 3/8'' OD Comp. Outlet. Constructed from NL/DZR Brass, it offers an angle pattern and quarter-turn operation, and includes a 3/8 inch outlet with a nylon test cap.
- Extended design for Omegaplate applications.
- Features 5/8'' OD Comp. Thread inlet and 3/8'' OD Comp. Outlet.
- Angle stop valve with quarter-turn operation.
Product Highlights
Extended angle stop valve for Omegaplate applications, featuring 5/8'' OD x 3/8'' OD compression connections and quarter-turn operation.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 688-G1CE
-
Country of Origin: China
Technical Specifications
-
MPN: 688-G1CE
-
Brand: SIOUX CHIEF
-
SKU: 688-G1CE
-
Reference ID: SIOUXCHIEF688G1CE
-
Product Type: Angle Stop Valve
-
Application: Omegaplate
-
Inlet Connection: 5/8'' OD Comp. Thread
-
Outlet Connection: 3/8'' OD Comp. Outlet
-
Design: Extended
-
Country of Origin: CN
-
Material: NL/DZR Brass
-
Pattern: Angle
-
Operation: Quarter-turn
-
Finish: Chrome
-
Series: ProPlate™
-
Certifications: ASME - A112.18.1, CSA - B125.1, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
