Sioux Chief 688-G11XR Classic Plastic Center Wash With Mini PEX Rough (Each)

Product Description

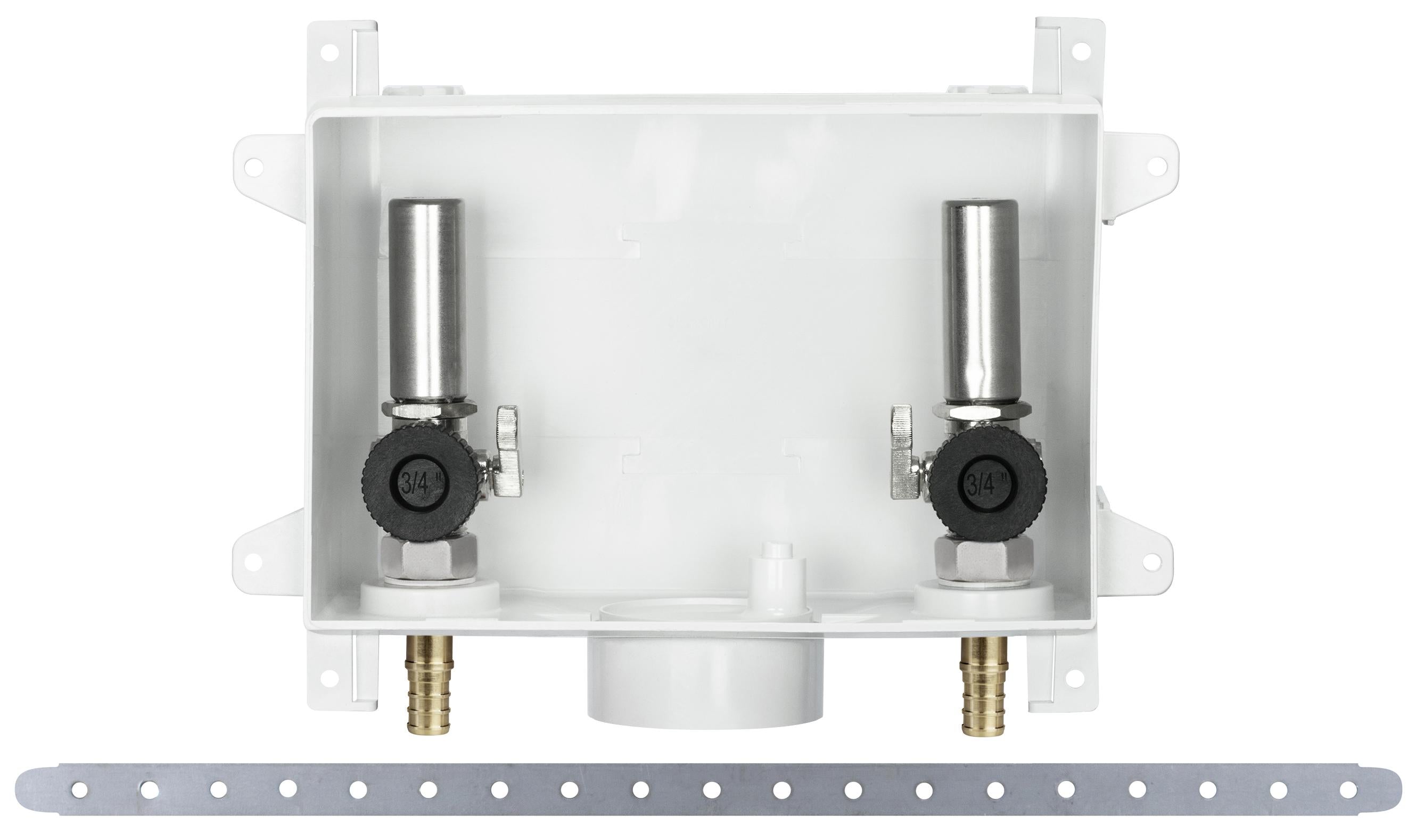

Sioux Chief 688-G11XR is a classic plastic center wash outlet box with a mini PEX rough-in designed for laundry and washing machine connections. The assembly provides a 1/2 in PEX F1807 inlet and a 3/4 in male outlet and includes integrated water hammer arrestors and quarter-turn ball valves for rough-in installations. The durable ABS box mounts to a stud or between studs and includes a removable test cap and debris cover.

• Classic center wash configuration with mini PEX rough-in and 1/2 in PEX F1807 inlet to 3/4 in male outlet
• Integrated water hammer arrestor and quarter-turn ball valves; test cap removable with pliers
• Durable ABS mounting box designed to install on a stud or between studs; includes debris cover

Product Highlights

Classic plastic center wash laundry outlet box with mini PEX rough-in, integrated water hammer arrestor, quarter-turn ball valves, and 1/2 in PEX F1807 inlet to 3/4 in male outlet.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 688-G11XR
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 688-G11XR
• Brand: Sioux Chief
• Description: Classic Plastic Center Wash W/mini Pex Rough
• UPC: 73923610310
• Country of Origin: US
• Inlet Type: PEX F1807
• Inlet Size: 1/2 in
• Outlet Size: 3/4 in
• Outlet Type: Male
• Material: ABS
• Valve Type: Quarter-turn ball valves
• Water Hammer Arrestor: Integrated
• Mounting: Mounts to stud or between studs
• Certifications: NSF-372; UPC; PROP65; Lead Free; IAPMO Listed; ASME A112.18.1; ASSE 1010
• Series: 688
• Type: ClassicBox
• Application: Laundry/washing machine outlet box
• Compatible With: 3/4" male hose outlet configurations
