Sioux Chief 688-G10XR Classic Plastic Center Wash Pex Rough 1/2 Inch F1807 PEX

Product Description

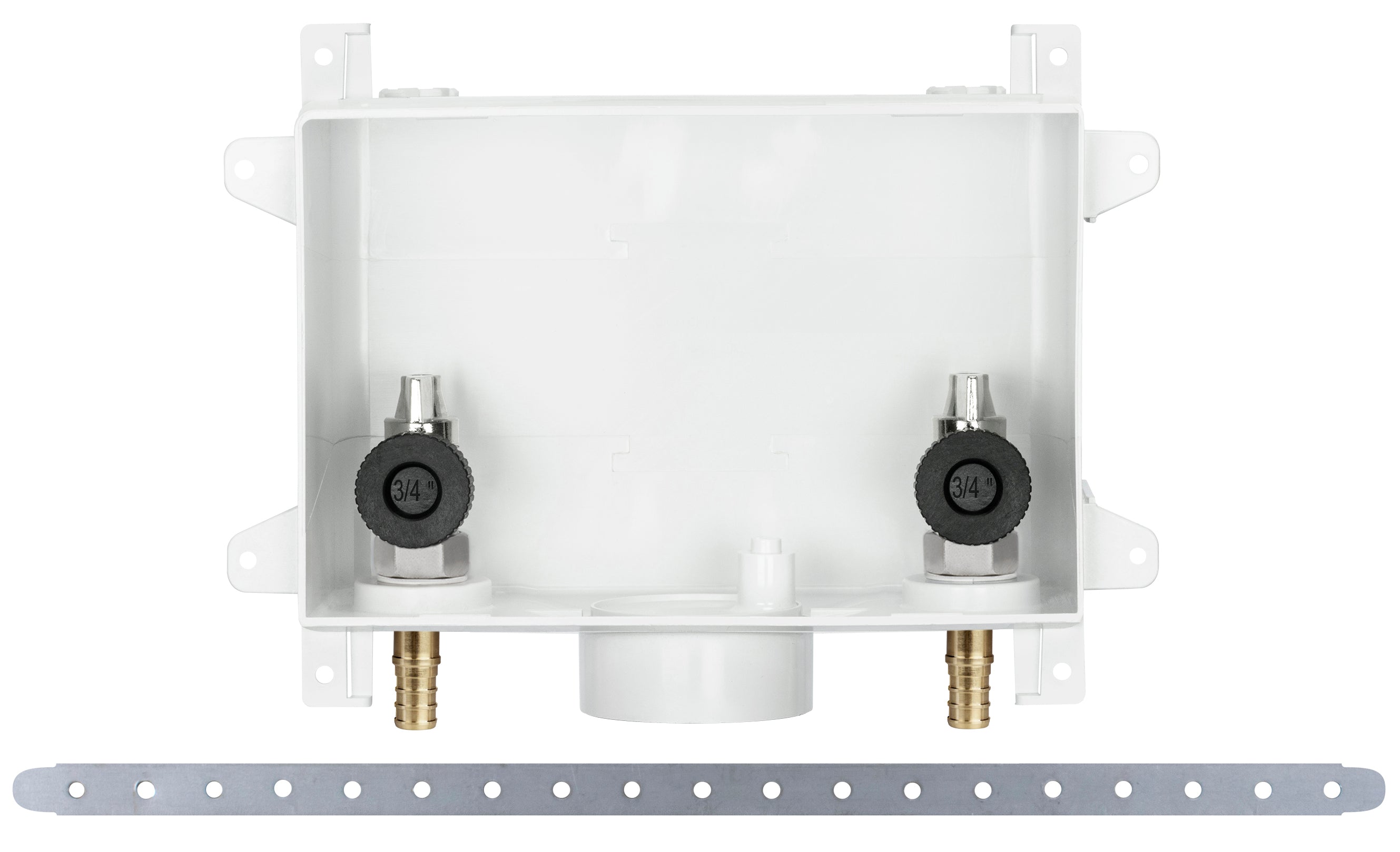

The Sioux Chief 688-G10XR is a ClassicBox laundry outlet box. It is a non-arrester rough-in outlet designed for 1/2 inch F1807 PEX connections, featuring a 3/4 inch hose thread outlet. Constructed with a durable ABS box and quarter-turn ball valves, it mounts securely to a stud or between studs. The test cap is easily removable with pliers. This product is compliant with ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, and NSF/ANSI/CAN 61 standards.

• Features a durable ABS box with quarter-turn ball valves.
• Designed for secure mounting to a stud or between studs.
• Test cap is easily removable with pliers.

Product Highlights

Compliant with multiple industry standards including ASME A112.18.1 and NSF/ANSI/CAN 372.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 688-G10XR
• Country of Origin: US

Technical Specifications

• MPN: 688-G10XR
• Brand: Sioux Chief
• Arrester: No
• Inlet Size: 1/2 inch
• Inlet Type: F1807
• Outlet Size: 3/4 inch
• Outlet Type: Hose Thread
• Fire-Rated: No
• Type: No Frame
• Series: 688
• Product Line: ClassicBox
• Compliance: NSF-372 Compliant, UPC, PROP65, LEAD FREE, IAPMO Listed, ASME A112.18.1, ASSE 1010
• Equivalent Part Number: 688G10XR
