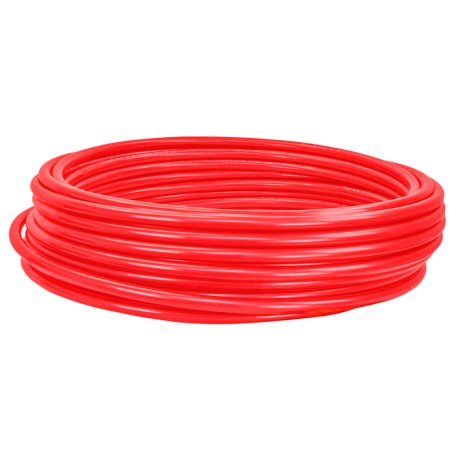

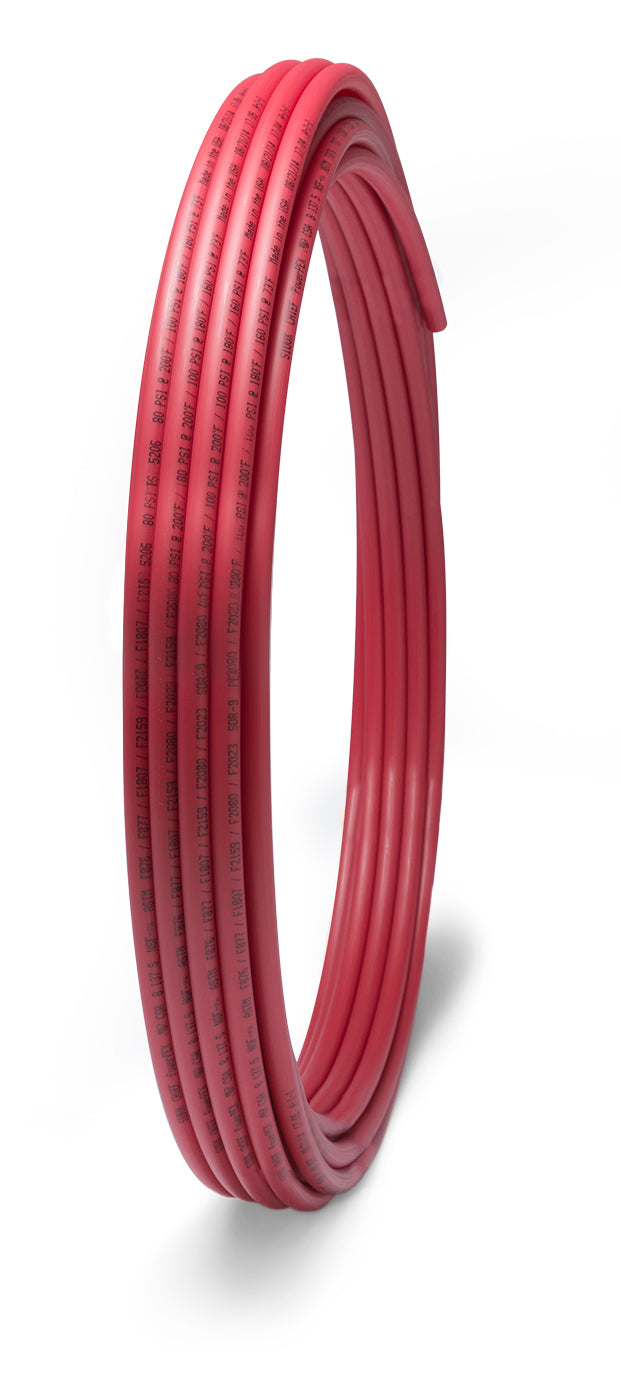

Sioux Chief 665X3R100 PowerPEX 3/4 in x 100 ft

Product Description

The SIOUX CHIEF 665X3R100 PowerPEX tubing is designed for hot and cold potable water distribution or approved non-potable system applications. This Type B PEX tubing measures 3/4 inch in diameter and 100 feet in length. Made in the USA and compatible with ASTM F1807/F2159/F1960/F3347 and ASSE 1061 fitting systems.

• Made in USA
• 24 in inner Dia of coil

Product Highlights

Durable PEX tubing suitable for plumbing, radiant, fire suppression, geothermal, water reclamation, turf conditioning, and irrigation.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 665X3R100
• Country of Origin: USA

Technical Specifications

• Brand: SIOUX CHIEF
• MPN: 665X3R100
• Coil Length: 100 ft
• Country of Origin: US
• Diameter: 3/4" Nominal (7/8" OD)
• Domestic/Import: Domestic
• Length: 100 ft
• Material: PEX
• Method of Manufacture: Silane Graft
• Mfg Standards/Approvals: ASTM F-1807/F-2080/F-2159/F-876/F-877, cNSfus-PW, IAPMO/cUPC, NSF-14, NSF-61
• Nominal Inside Diameter: 0.671
• Nominal Size: 3/4 in
• OD: 0.875" 0.004
• Outside Diameter: 7/8 in
• Schedule Rating: SDR-9
• Series: 665
• Type: Type B
• Volume(Gal)/100 ft: 1.82
• Wall Thickness: 0.097" 0.010
• Weight Per Ft: 0.1023
• Inside Diameter: 0.671 Inch
• Working Pressure: 160 psi
• Temperature Rating: 73 deg F
• Industry Standards: ASTM F876, ASTM F877, ASTM F1807, ASTM F2080, ASTM F2159
• Tube Size: 3/4 IN
• Application: Potable Water, Open-loop Heating
• Calculated ID: 0.681
• Approved Fitting Systems: PEX-B Tubing: ASTM F1807 / ASTM F2080 / ASTM F1960 / ASTM F2159
• Chlorine Resistance / UV Resistance: PEX-B Tubing: 5206 or 5306
