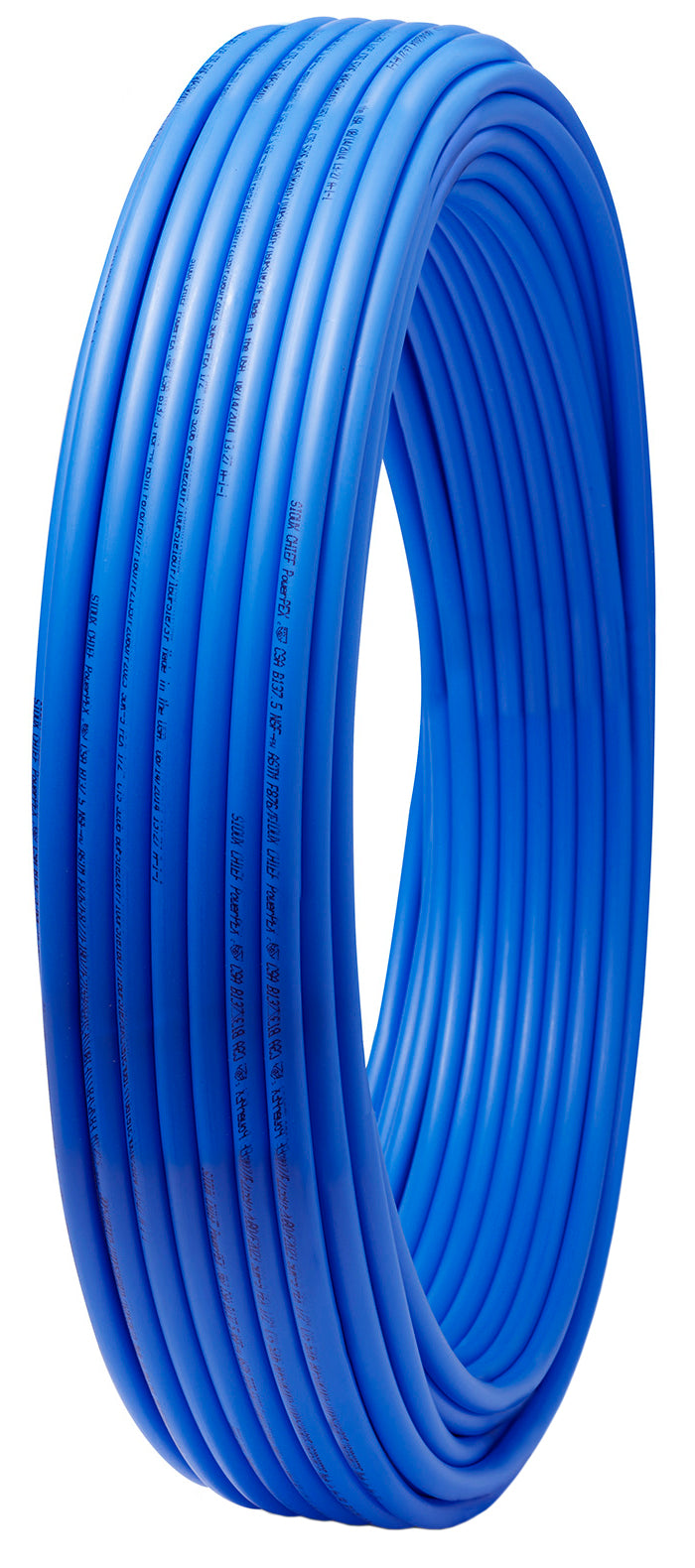

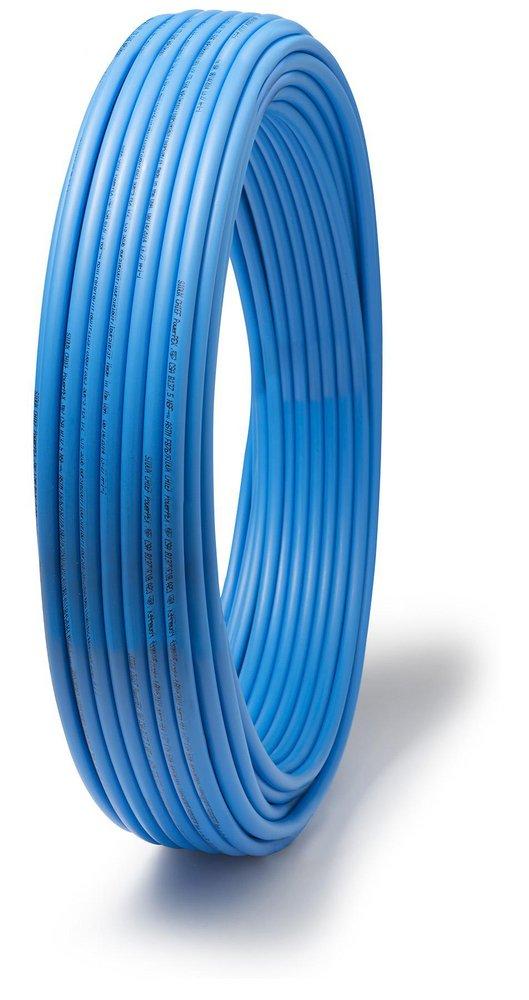

Sioux Chief 665X2B300 Pex Tube 1/2 x 300

Product Description

The SIOUX CHIEF 665X2B300 Pex Tube is ideally suited for water distribution. This Type B PEX tube has dimensions of 1/2 x 300. Sioux Chief recommends using a self-rotating, power expansion tool for all F1960 expansion joints with PowerPEX Type-B tubing. Compatible with ASTM F1807/F2159/F1960/F3347 and ASSE 1061 fitting systems.

• Ideally suited for water distribution.
• Compatible with ASTM F1807/F2159/F1960/F3347 and ASSE 1061 fitting systems.
• Sioux Chief strongly recommends all F1960 expansion joints with PowerPEX Type-B tubing be made with a self-rotating, power expansion tool.

Product Highlights

The SIOUX CHIEF 665X2B300 Pex Tube is a reliable choice for potable water distribution.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 665X2B300
• Country of Origin: US

Technical Specifications

• Description: Pex Tube 1/2 X 300 Blue Coil
• Manufacturer: Sioux Chief
• PDW MFR CAT: 665X2B300
• Pittman #: 220700
• Brand: SIOUX CHIEF
• Item: 665X2B300
• UM: CL
• Color: Blue
• Length: 300 FT
• Style: Coil
• Tube Size: 1/2 IN
• Type: Type B
• ASTM: ASTM F-876, ASTM F-877, ASTM F-1807, ASTM F-2080, ASTM F-2159, ASTM F-1960
• Application: Plumbing, Radiant, Fire Suppression, Geothermal, Water Reclamation, Turf Conditioning, Irrigation
• CSA Certified: CSA B137.5
• Collection: PowerPEX
• Color Finish Name: Blue
• Diameter - Inside 1: 97/200
• Diameter - Outside: 5/8 in
• End Connection 1: Barbed
• End Connection 2: Barbed
• End Connections: Barbed
• FM Approved: No
• Fire Suppression System Rated: No
• GSA Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Plastic
• Material Type: PEX
• Maximum Temperature: 200
• NSF: NSF 14, NSF 61
• NSF Certified: Yes
• PipeTubing Size: 1/2
• Pressure - Maximum: 160 psi
• Schedule Class: SDR 9
• UL Listed: No
• UPC: 739236421555
• Nominal Size: 1/2 Inch
• Inside Diameter: 0.485 Inch
• Outside Diameter: 5/8 Inch
• Wall Thickness: 0.07 Inch
• Series: 665X
• Outside Dia: 1/2 in
• Domestic / Import: Domestic
• Manufacturer #: 665X2B300
