Product Description

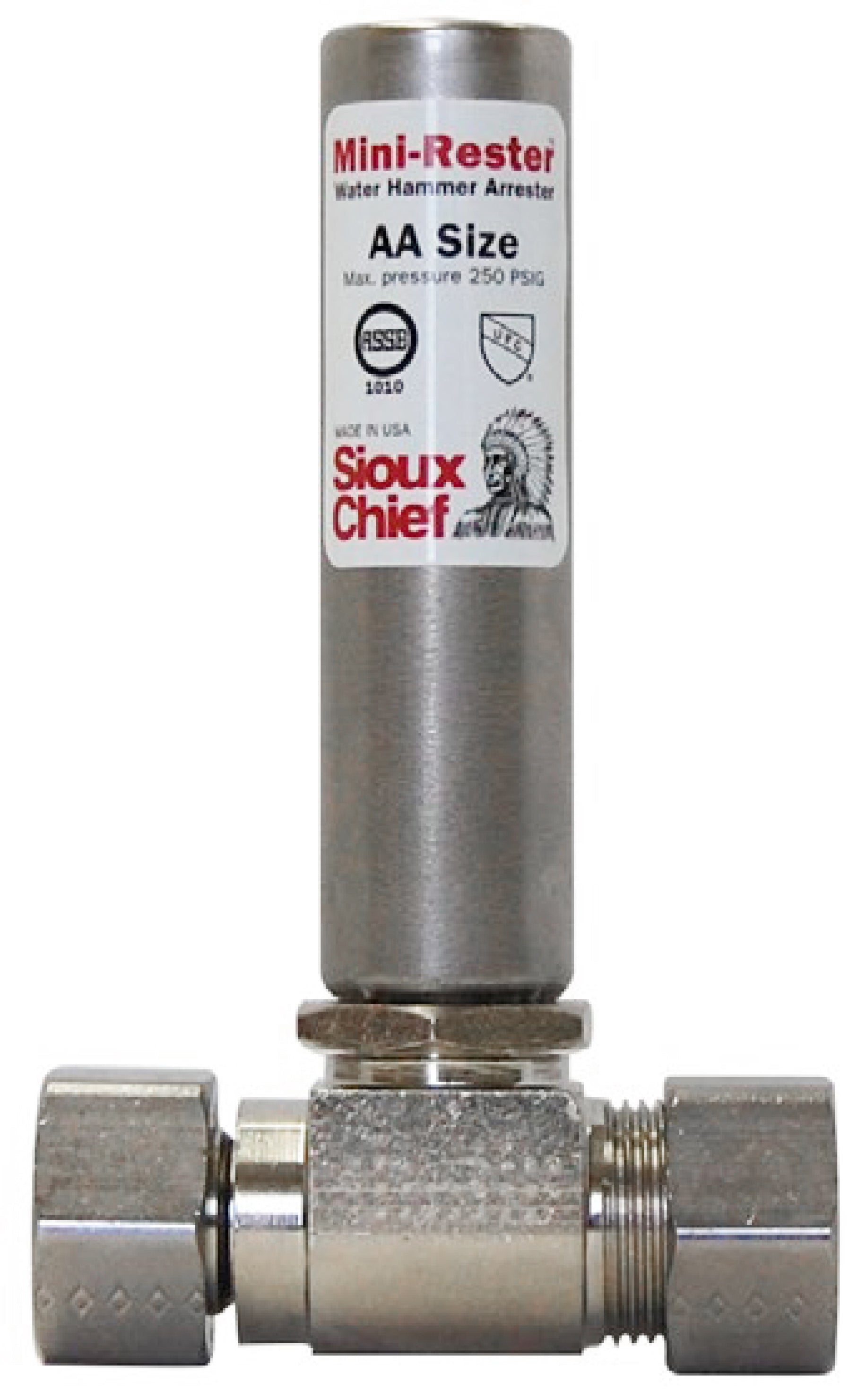

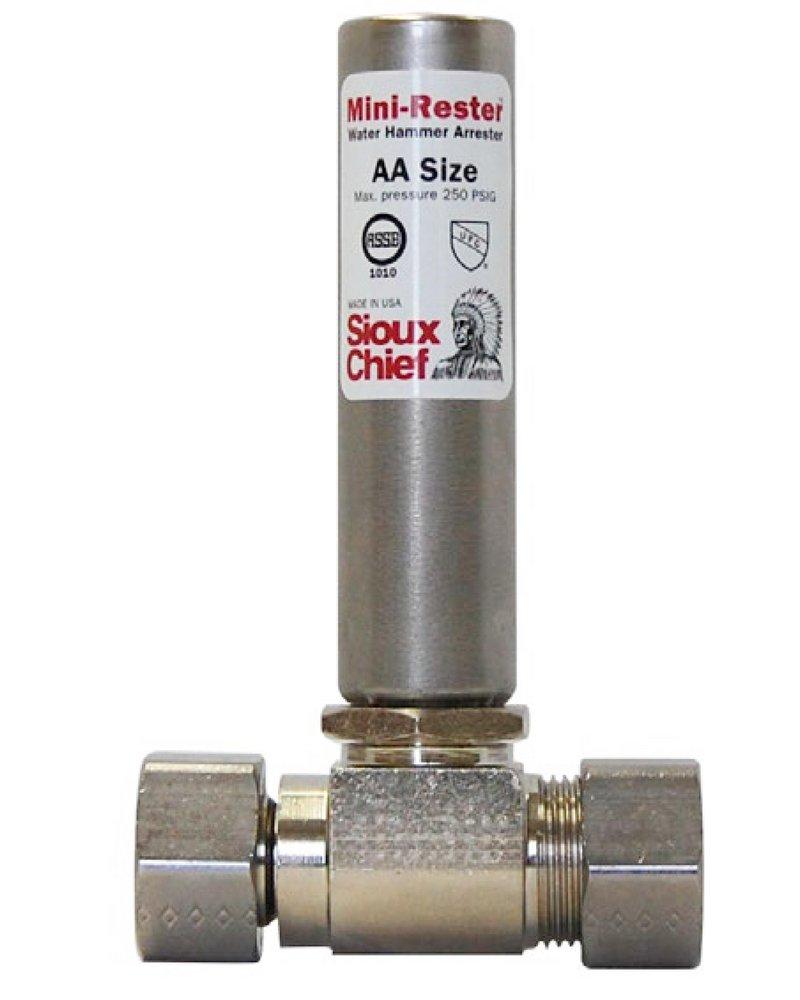

The SIOUX CHIEF 660-GTRB Mini-Rester provides continuous protection without maintenance and installs at any angle. Designed for installation at the supply stop valve and allows for installation in a 2 x 4 wall cavity. It is suitable for residential, single-fixture applications and is made in the USA.
- Installs at any angle
- Designed to provide continuous protection, without maintenance
- Installs to the supply stop valve
Product Highlights
The Mini-Rester water hammer arrestor is perfect for retrofit and installs directly to supply stops.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 660-GTRB
-
Country of Origin: USA
Technical Specifications
-
Brand: SIOUX CHIEF
-
Item: 660-GTRB
-
End Style: OD Compression x Female Compression
-
Nominal Size: 5/8 in
-
Pressure Rating: 250 psig
-
Body Material: 304 Stainless Steel
-
Manufacturer: Sioux Chief
-
Manufacturer #: 660-GTRB
-
Overall Height: 4-1/2 in
-
Series: 660-GTR
-
Softgoods Material: EPDM O-Ring
-
Sub-Brand: MiniRester
-
Temperature Rating: 250 deg F
-
Domestic / Import: Domestic
-
Connections: 5/8" O.D. compression x female compression
-
Max. Temperature (F): 250
-
Max. Pressure (PSIG): 350
-
Materials: body is copper tube, piston is poly piston with two EPDM o-rings, piston lubrication is Dow-corning, 111 FDA approved silicone compound
-
Material: Stainless Steel
-
Connector Type: Threaded
