Sioux Chief 654-CS Water Hammer Arrestor 1 Inch Type L Copper

Product Description

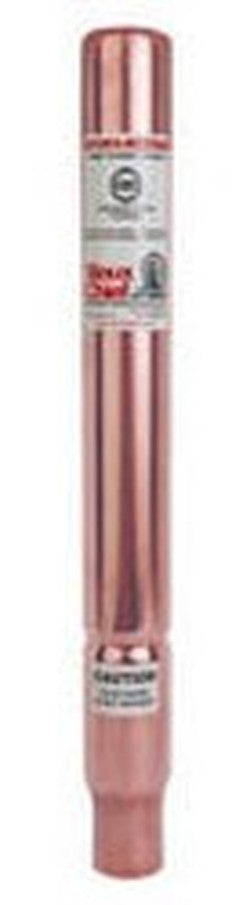

The Sioux Chief 654-CS Water Hammer Arrestor is specifically engineered to stabilize pressure surges in plumbing systems, ensuring longevity and reliability. This essential component is crafted from durable Type L copper and features a polypropylene piston designed to absorb sudden shocks effectively.

• Equipped with a 1-inch male soldered or press inlet connection.
• Lifetime tested to withstand up to 500,000 cycles without failure.
• Lead-free construction meets ANSI/ASSE 1010 standards for health and safety regulations.

Product Highlights

This water hammer arrestor is certified by the American Society of Sanitary Engineering, featuring a straightforward design that allows for installation at any angle. Its robust construction is suitable for both commercial and residential installations.

Product Information

Standard Information

• Manufacturer: Sioux Chief
• Model: 654-CS
• Material: Type L Copper, Polypropylene

Technical Specifications

• Inlet Size: 1 inch
• Maximum Working Pressure: 350 psi
• Burst Pressure: 2900 psi
• Overall Height: 12-1/2 inches
• Installation: Can be installed at any angle; no access panel required
• Compliance: ANSI/ASSE 1010, Lead-Free
