Sioux Chief 654-C HydraRester 1 MIP ASSE-C Water Hammer Arrestor

Product Description

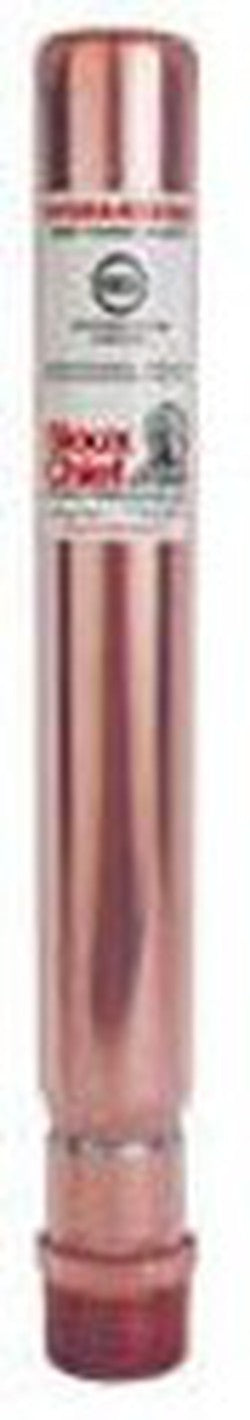

The Sioux Chief 654-C is a water hammer arrestor designed to protect piping systems from the effects of water hammer. This model features a piston-operated mechanism that effectively absorbs shock. The inlet size is one inch with male threaded connections. With a height of eleven inches, it is made from lead-free copper and designed for commercial applications.

• Type: Piston Operated
• Pressure Rating: 350 PSIG (Working), 2900 PSIG (Burst Tested)
• Temperature Rating: 250 Deg F

Product Highlights

The 654-C is recognized for its reliable function in dampening pressure surges, making it essential for plumbing systems where sudden changes in water flow can cause damage.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 654-C

Technical Specifications

• Body Material: Type L Copper
• Spherical Piston Material: Polypropylene
• Inlet Connection: Male Threaded
• Fixture Unit Rating: 33-60
• Overall Height: 11 inches
• Top Shape: Round
• Top Size: 1-3/8 inches Diameter
• Applicable Standard: ANSI/ASSE 1010, FDA
• Capacity: 11 Cubic Inch
• Lead-Free: Yes
• Inclusions/Features: Cold Rolled, Spun Closed Seamless Chamber End, Pressurized Air Cushion, Poly Piston, (2) EPDM O-Ring, Dow-Corning Lubrication, Seamless Cold Formed Reduction
