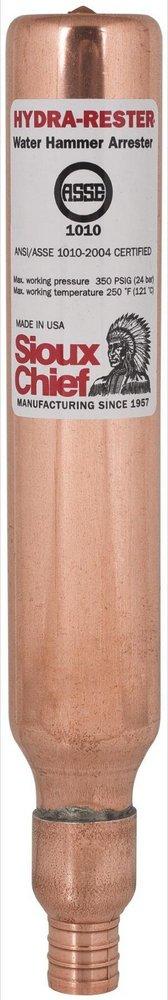

Sioux Chief 653-BX HydraRester 3/4 in. Copper PEX and F1807 Water Hammer Arrestor

Product Description

The Sioux Chief HydraRester 3/4 in. Copper PEX and F1807 Water Hammer Arrestor, part number 653-BX, is designed to mitigate water hammer issues in plumbing systems. This device allows for installation in standard two by four wall cavities and can be installed at any angle. It is tested to withstand 10,000 shock cycles, ensuring consistent performance over time.

• Compatible with press-fitting systems.
• Maintenance-free design.
• Constructed from no-lead components.

Product Highlights

The HydraRester provides reliable protection without the need for maintenance and allows flexible installation options.

Product Information

Standard Information

• Brand: Sioux Chief
• Part Number: 653-BX

Technical Specifications

• Connection Type: PEX Crimp
• Maximum Pressure Rating: 350 PSI
• Maximum Temperature Rating: 250 degrees F
• Material: Copper
• Weight: 0.75 lbs
• Height: 8.75 inches
• For Use With: 12-32 fixture units
• Specifications Met: ANSI/ASSE 1010-2004
