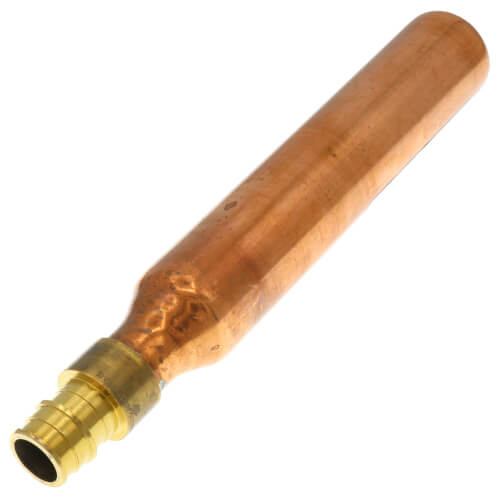

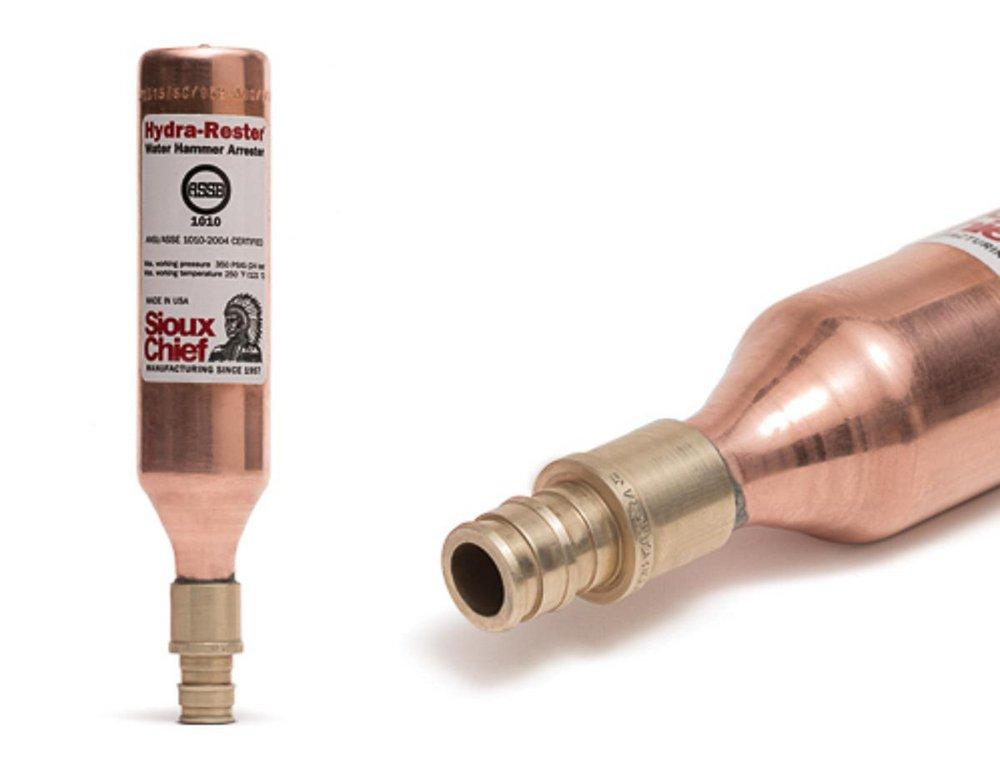

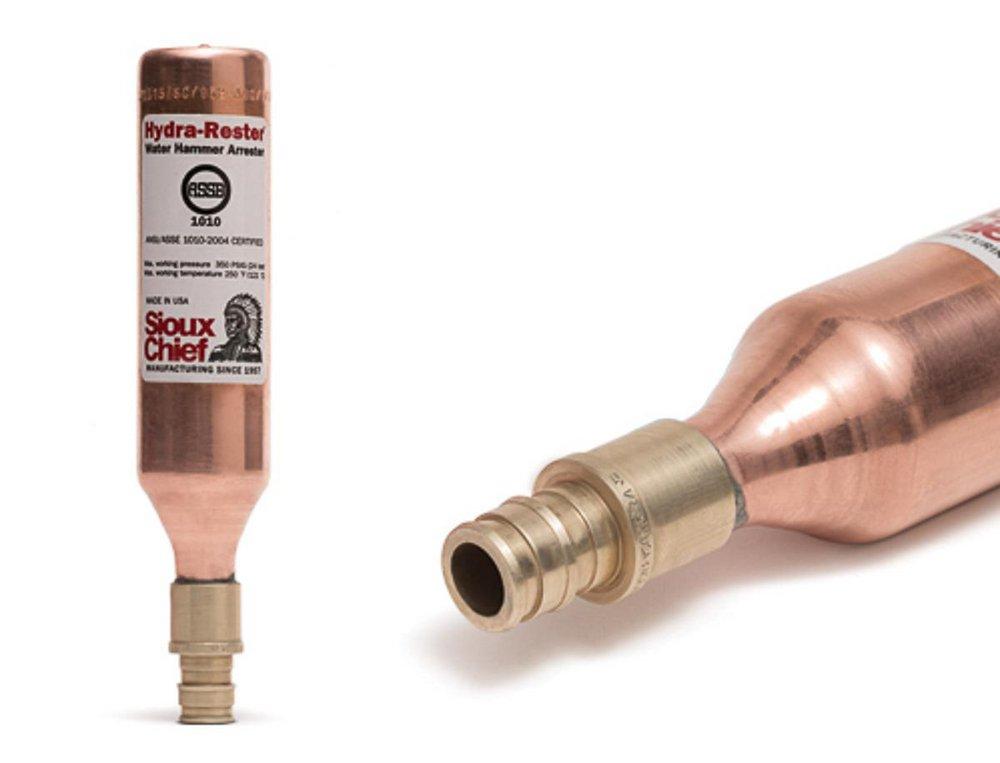

Sioux Chief 653-BWG HydraRester 3/4 in. Copper PEX and F1960 Water Hammer Arrestor

Product Description

The Sioux Chief HydraRester 3/4 in. Copper PEX and F1960 Water Hammer Arrestor, MPN 653-BWG, is an effective solution for preventing water hammer in plumbing systems. It allows for installation at any angle within a 2 by 4 wall cavity, ensuring flexibility during setup.

• Installation at any angle
• Designed for use in 2 by 4 wall cavities
• Maintenance-free operation with a single moving piston

Product Highlights

This water hammer arrestor is certified by the American Society of Sanitary Engineering and is designed for continuous operation without maintenance, providing long-term reliability.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 653-BWG

Technical Specifications

• Material: Type L copper tube
• Connection Type: F1960 PEX
• Maximum Pressure Rating: 350 PSIG
• Maximum Temperature Rating: +250 degrees F
• Weight: 0.79 lbs
• Test Cycles: Over 500,000 cycles without failure
• Standards Complied: ANSI/ASSE 1010-2004
• Piston Seal: FDA approved silicone compounds
