Sioux Chief 648XG3XRV Valve 3/4 Pex X 3/4 Pex

Product Description

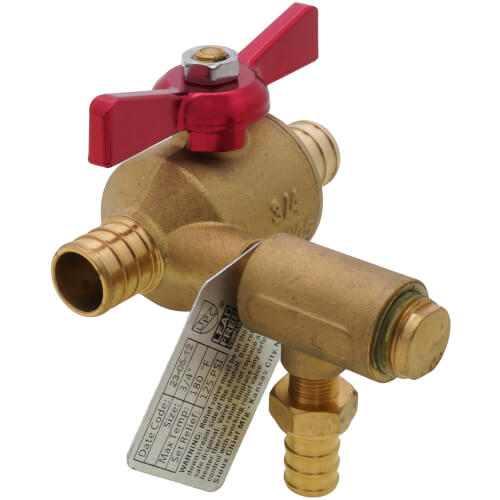

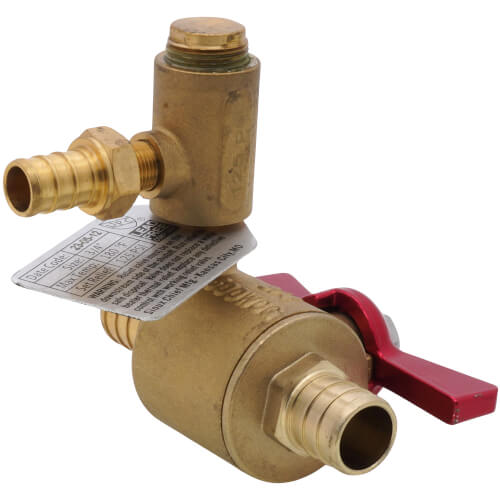

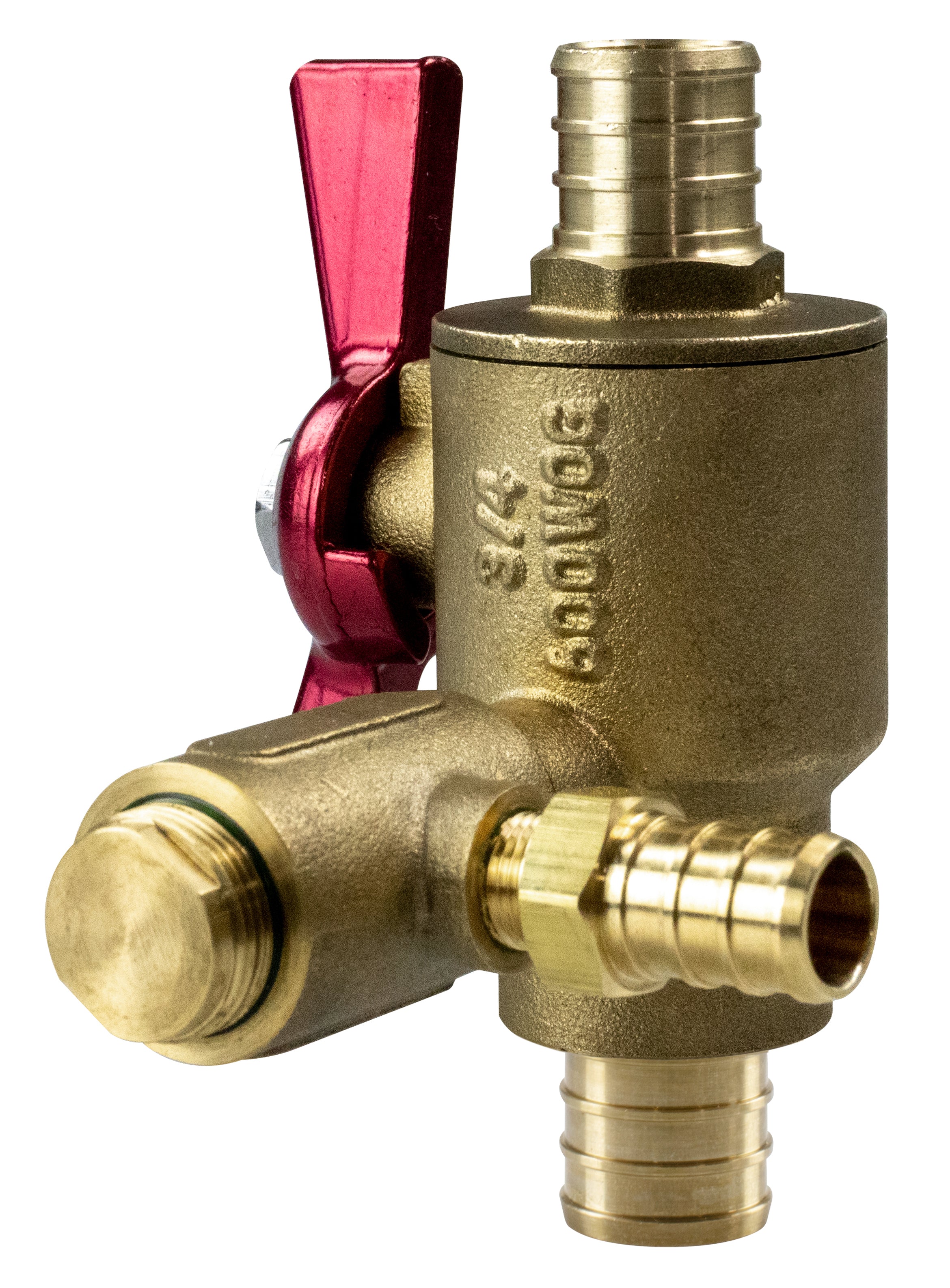

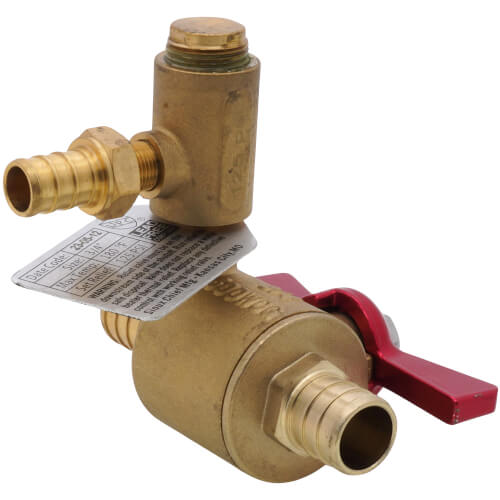

The SIOUX CHIEF 648XG3XRV is a valve designed for controlling increased pressure caused by thermal expansion in water distribution systems. It features a brass valve body with PTFE seats, stainless steel springs, and EPDM o-rings. The valve has a 3/4" PEX crimp inlet and outlet, along with a 1/2" PEX crimp relief valve connection.

• 3/4" PEX crimp inlet and outlet
• 1/2" PEX crimp relief valve connection
• Maximum temperature of 180°F

Product Highlights

This thermal expansion relief valve is designed to prevent explosions or damage to water heaters and surrounding structures.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 648XG3XRV
• Country of Origin: CN

Technical Specifications

• Brand: SIOUX CHIEF
• Item: 648XG3XRV
• Material: Brass
• Lead Free: Yes
• Inlet Size: 3/4"
• Inlet Type: PEX Crimp
• Outlet Size: 3/4"
• Outlet Type: Pex Crimp
• Handle Style: Easy Twist Handle
• Max Temp (F): 180
• Relief Valve: 1/2"
• Connection Method: PEX Crimp
• Max Pressure (PSI): 125
• Product Type: Pex Ball Valve
• Nominal Size: 3/4 inch
• Pressure Class: 125
• Inlet Connection: PEX Crimp
• Outlet Connection: PEX Crimp
• Body Material: Brass
• Temperature Rating: 180 deg F
• Type: Valve
• Number in Pack: 1
• Connection 1 Size: 3/4 IN
• Connection 1 Type: F1807
• Connection 2 Size: 3/4 IN
• Connection 2 Type: F1807
• Relief Connection Size: 1/2 IN
• Relief Connection Type: F1807
• Relief PSI: 125 PSI
