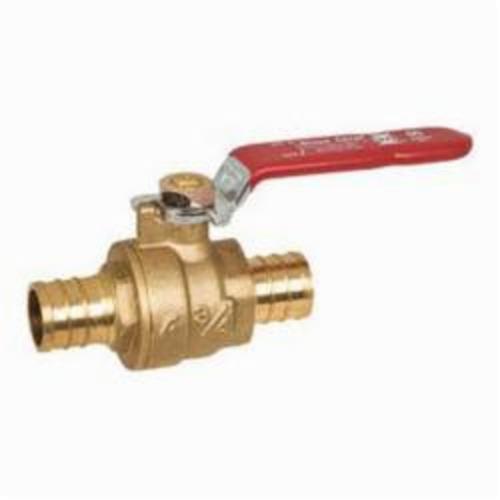

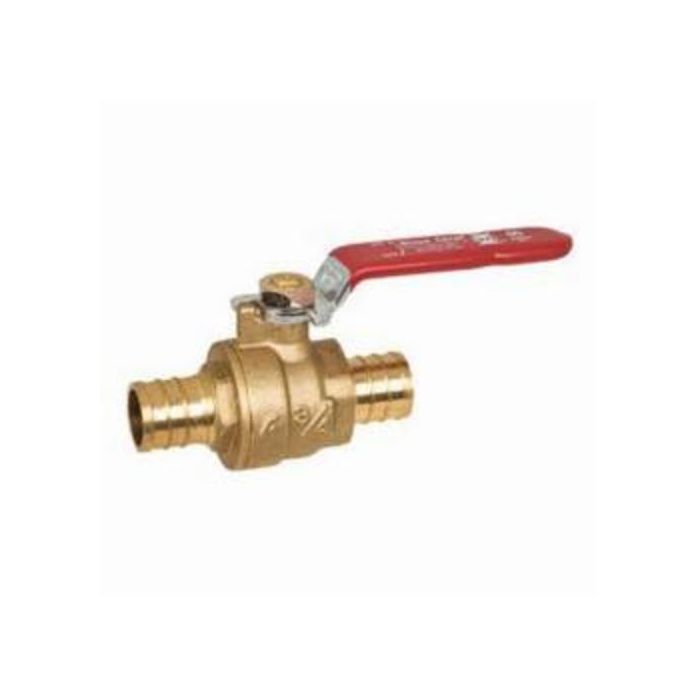

Sioux Chief 648XG2 PEX Ball Valve 1/2 Inch F1807 PEX Crimp End

Product Description

The SIOUX CHIEF 648XG2 is a PowerPEX® ball valve with a 1/2 inch nominal size and F1807 PEX crimp end style. It features a brass body and a blow-out-proof stem. This valve is suitable for use in water supply systems requiring a 1/4-turn valve. Compliant with ANSI/NSF 61 and ASTM F1807 standards.

• PowerPEX®
• Brass Body
• F1807 PEX Crimp End Style

Product Highlights

The SIOUX CHIEF 648XG2 ball valve offers a reliable shutoff solution for PEX plumbing systems, featuring a durable brass body and secure crimp connections.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 648XG2
• Country of Origin: Import

Technical Specifications

• End Style: F1807 PEX Crimp™
• Nominal Size: 1/2 in
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Mfg Standards/Approvals: ANSI/NSF 61, ASTM F1807, cUPC Complaint, NSF61-G
• Series: 648
• Manufacturer: Sioux Chief
• Manufacturer #: 648XG2
• End Connection: Pex Crimp
• Material: Brass
• Valve Size: 1/2"
• ANSI: ANSI 61
• ASTM: ASTM F-1807
• Collection: 648 Series
• End Connection 1: PEX
• End Connection 2: PEX
• End Connections: PEX x PEX
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 61
• NSF Certified: Yes
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Water, Oil, Gas
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Standard Port
• Valve Seat Material: PTFE
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
