Sioux Chief 637X25 Elbow 90 degree, 1/2 inch

Product Description

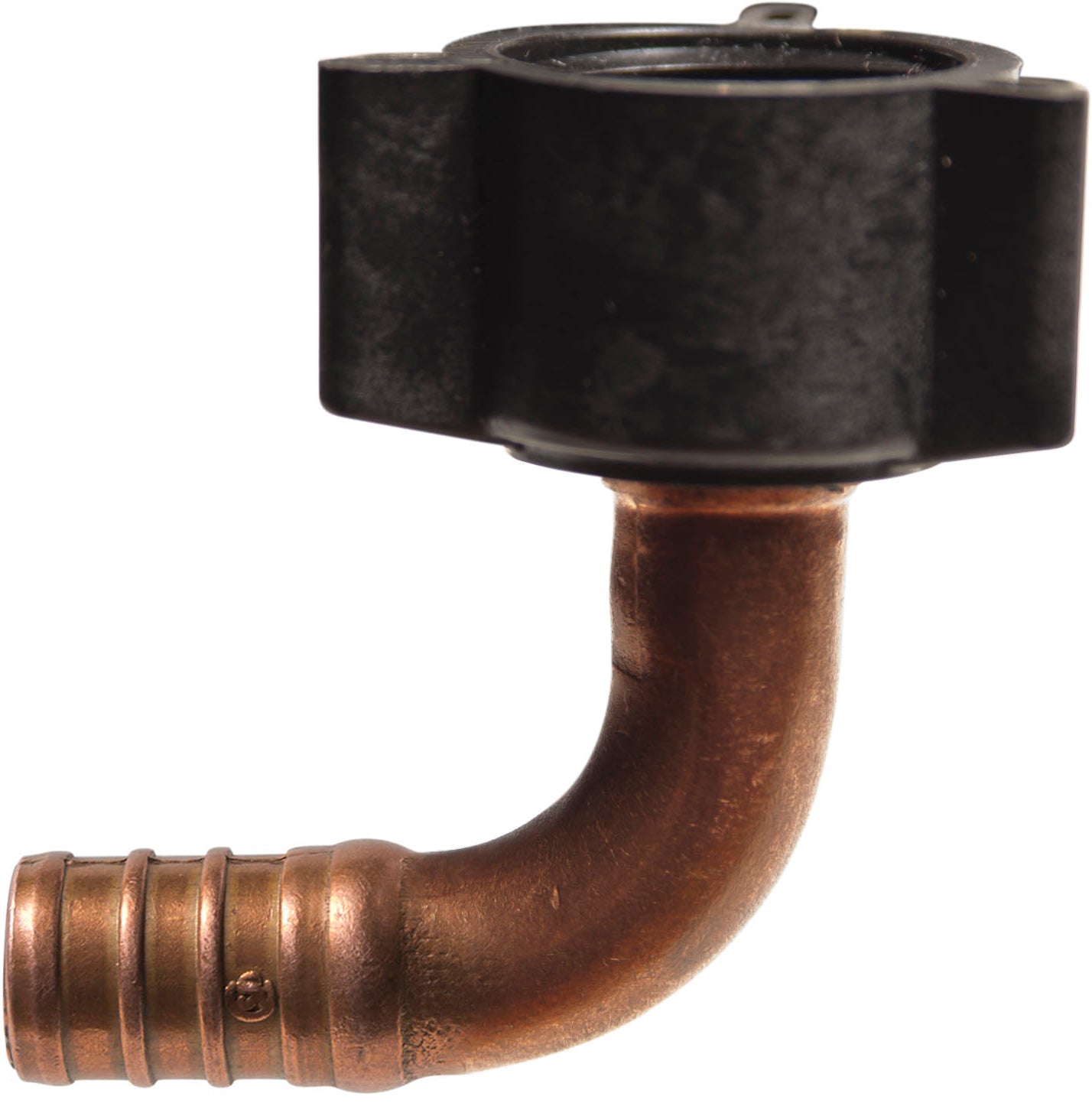

The SIOUX CHIEF 637X25 is a 90-degree PowerPEX® faucet elbow adapter constructed from copper. This fitting features a 1/2 inch nominal size with an F1807 Crimp PEX x FNPT Swivel end style, designed to connect PEX tubing to faucet threads. It is part of the 637 series and is suitable for various plumbing installations, ensuring a secure connection.

• Easily connects PEX to faucet thread.
• High impact FIP swivel nut includes nose cone gasket.
• Complies with ASTM F1807, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61, and CSA - B137.5 standards.

Product Highlights

90-degree copper elbow adapter for PEXxFNPT Swivel connections, featuring a nose cone seal that eliminates the need for thread sealant.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 637X25
• Country of Origin: US

Technical Specifications

• MPN: 637X25
• Brand: SIOUX CHIEF
• UPC: 739236481580
• Unit Of Measure: EA
• Product Grouping: Supply > PowerPex® Systems > ASTM F1807 > ASTM F1807 - Fittings, Adapters & Connectors > Adapters/Connectors > Faucet Adapter - F1807 > 1/2" FIP Swivel > ELBOW - COPPER
• Series: 637
• Fitting/Connector Type: 90 deg Adapter
• Nominal Size: 1/2 in
• End Style: F1807 Crimp PEX x FNPT Swivel
• Material: Copper
• Type: Swivel
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 1/2 IN
• Connection 2 Type: FIP-Swvl.
• Product Type: Plumbing Part
