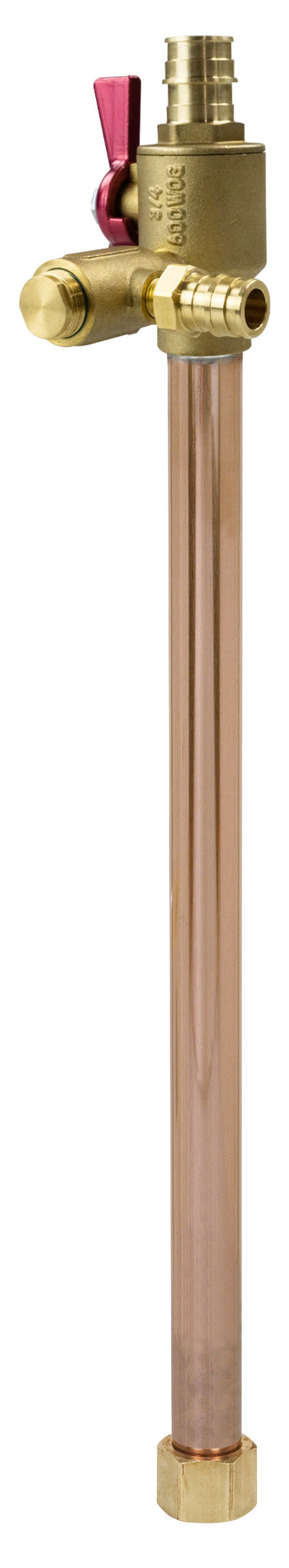

Sioux Chief 633WG18WRV Whc 3/4 F1960 X 3/4 Fswvl Fp W/F1960 Exp Relief 18 Nl

Product Description

The SIOUX CHIEF 633WG18WRV is a WHC 3/4 F1960 X 3/4 FSWVL FP W/F1960 EXP RELIEF 18 NL, designed for plumbing systems to safely distribute hot or cold water. The thermal expansion relief valve discharges water and excess pressure as needed. Connectors are used for fluid communication with plumbing devices and fixtures.

• Inlet Connection: 3/4" FIP swivel
• Valve Outlet Connection: 3/4" F1960 Expansion PEX
• Thermal Relief Connection: 1/2" F1960 Expansion PEX

Product Highlights

This water heater connector features a brass FIP swivel nut with gasket, full flow design, and a lead-free solder joint.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 633WG18WRV

Technical Specifications

• Brand: SIOUX CHIEF
• Item: 633WG18WRV
• Item Description: WHC 3/4 F1960 X 3/4 FSWVL FP W/F1960 EXP RELIEF 18 NL
• Length: 18"
• Connection Type: FIP Swivel x ProPEX
• Type: Straight
• Inlet Size: 3/4"
• Inlet Type: FIP Swivel
• Outlet Size: 3/4"
• Outlet Type: Expansion PEX
• Relief Valve: 1/2"
• Connection Method: ProPEX
• Material: Copper, Brass
• Max Temp (F): 180
• Lead Free: Yes
• body Material: Copper
