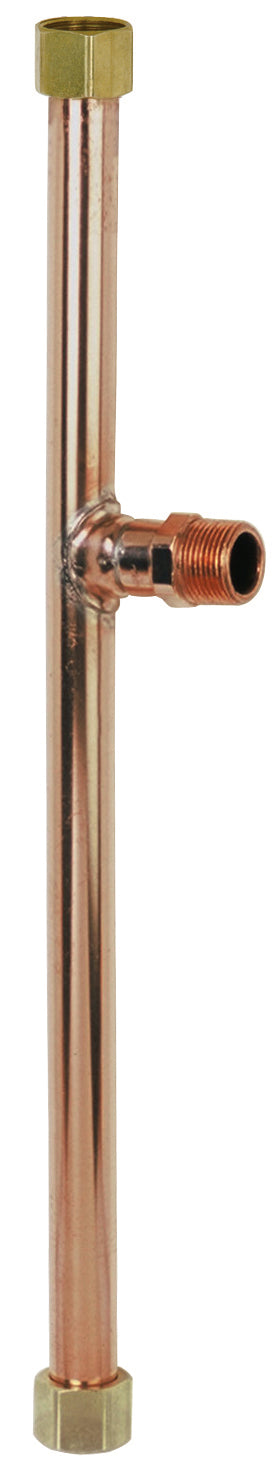

Sioux Chief 633-G3TM15 Grip™ Water Heater Connector 15 x 3/4 in.

Product Description

The SIOUX CHIEF 633-G3TM15 Grip™ Water Heater Connector includes a gasket, making it a dielectric fitting. It maintains the necessary 18 in. distance from PEX and allows the expansion tank to be installed to the top of the fitting. This connector is a pre-manufactured assembly.

• Includes gasket, making it a dielectric fitting
• 15 in. length
• 3/4 in. swivel FIP x 3/4 in. swivel FIP x 3/4 in. FIP tee
• Maintains the necessary 18 in. distance from PEX

Product Highlights

This water heater connector features a 3/4 in. swivel FIP x 3/4 in. swivel FIP x 3/4 in. FIP tee and is made in the USA.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 633-G3TM15
• Country of Origin: USA

Technical Specifications

• Length: 15 in.
• Size: 3/4 in.
• Material: Copper
• Specifications: 3/4 x 3/4 in FNPT Swivel x 3/4 in MNPT Branch
• Domestic/Import: Domestic
• ASTM: ASTM F-1960, ASTM F-876
• Application: Hot and Cold Water Distribution, PEX Tubing
• End Connection 1: FIPS
• End Connection 2: MIPS
• End Connections: FIPS x MIPS
• Fitting Size 1: 3/4 in
• Fitting Size 2: 3/4 in
• Fitting Sizes: 3/4 in
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 14
• Rigid: Yes
• UL Listed: No
• UPC: 739236411518
• Manufacturer Name: Sioux Chief
• Type: Water Heater Connector
• End Connection: 3/4" Female Swivel x 3/4" Female Swivel x 3/4" Male Threaded
• Tubing Material: Copper
• Inclusions/Features: Gasket
• No Lead: Yes
• Packaging Quantity: 25 per Case
• Warranty: Lifetime Limited
