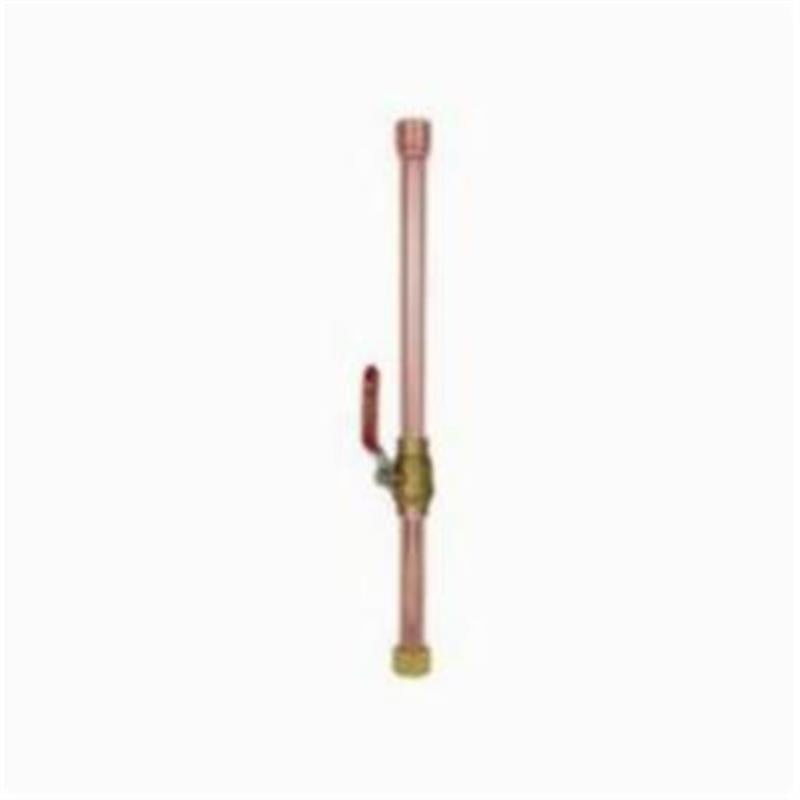

Sioux Chief 633-CG18FP Metal Head Water Heater Connector 18 x 3/4 In

Product Description

The SIOUX CHIEF 633-CG18FP Metal Head Water Heater Connector is designed for water heater installations, featuring an 18-inch length and a 3/4-inch nominal size. This connector includes a full port ball valve and a 3/4 inch swivel FIP x 3/4 inch CPVC connection, ensuring efficient flow for plumbing applications. Constructed from brass, it functions as a dielectric fitting with an included gasket, maintaining the necessary 18-inch distance from plastic tubing.

• Includes gasket, making it a dielectric fitting.
• Features a full port ball valve for efficient flow control.
• Equipped with a 3/4 inch swivel FIP x 3/4 inch CPVC connection.

Product Highlights

Straight water heater connector with full port valve, maintaining 18-inch distance from plastic tubing.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 633-CG18FP
• Country of Origin: USA

Technical Specifications

• Brand: Sioux Chief
• Manufacturer Part Number: 633-CG18FP
• Part Number: S633CG18FP
• Item Number: 4507036
• Unit of Measure: EACH
• Series: 633
• Fitting/Connector Type: Connector
• Nominal Size: 3/4 in
• Connection Type: FNPT Swivel x CPVC Socket
• Length: 18 in
• Material: Brass
• Lead-Free Status: Lead-Free
• Pressure Rating: 600 psi
• Temperature Rating: 180 deg F
