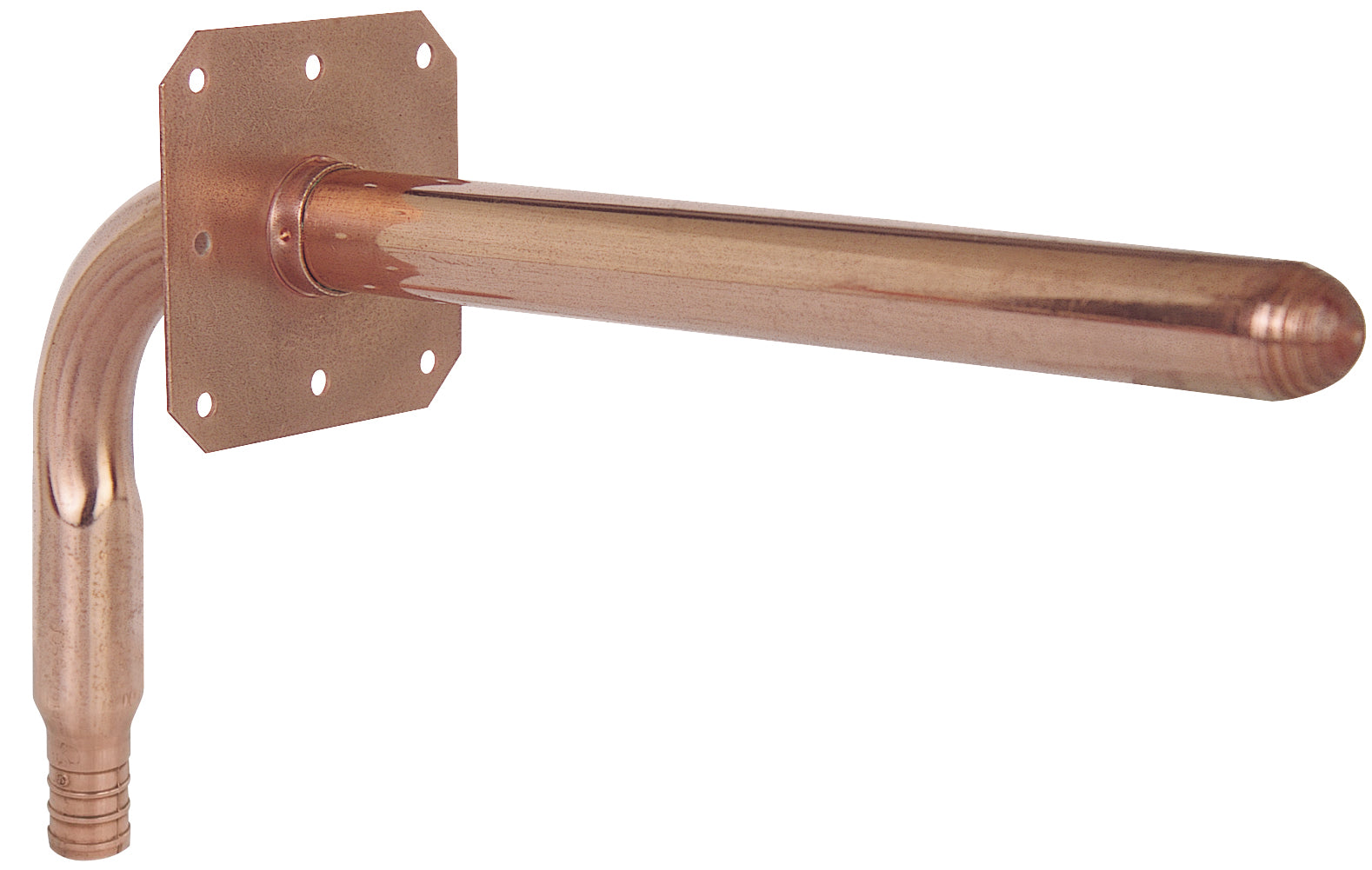

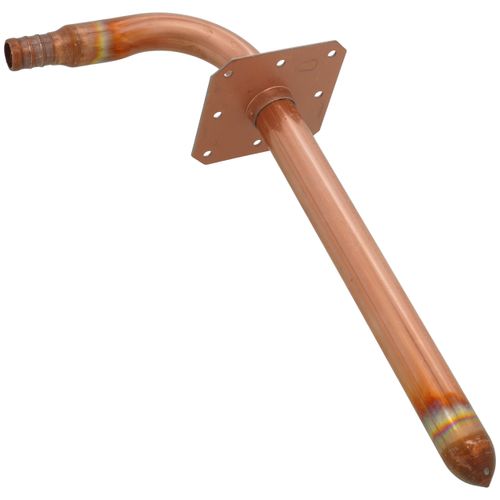

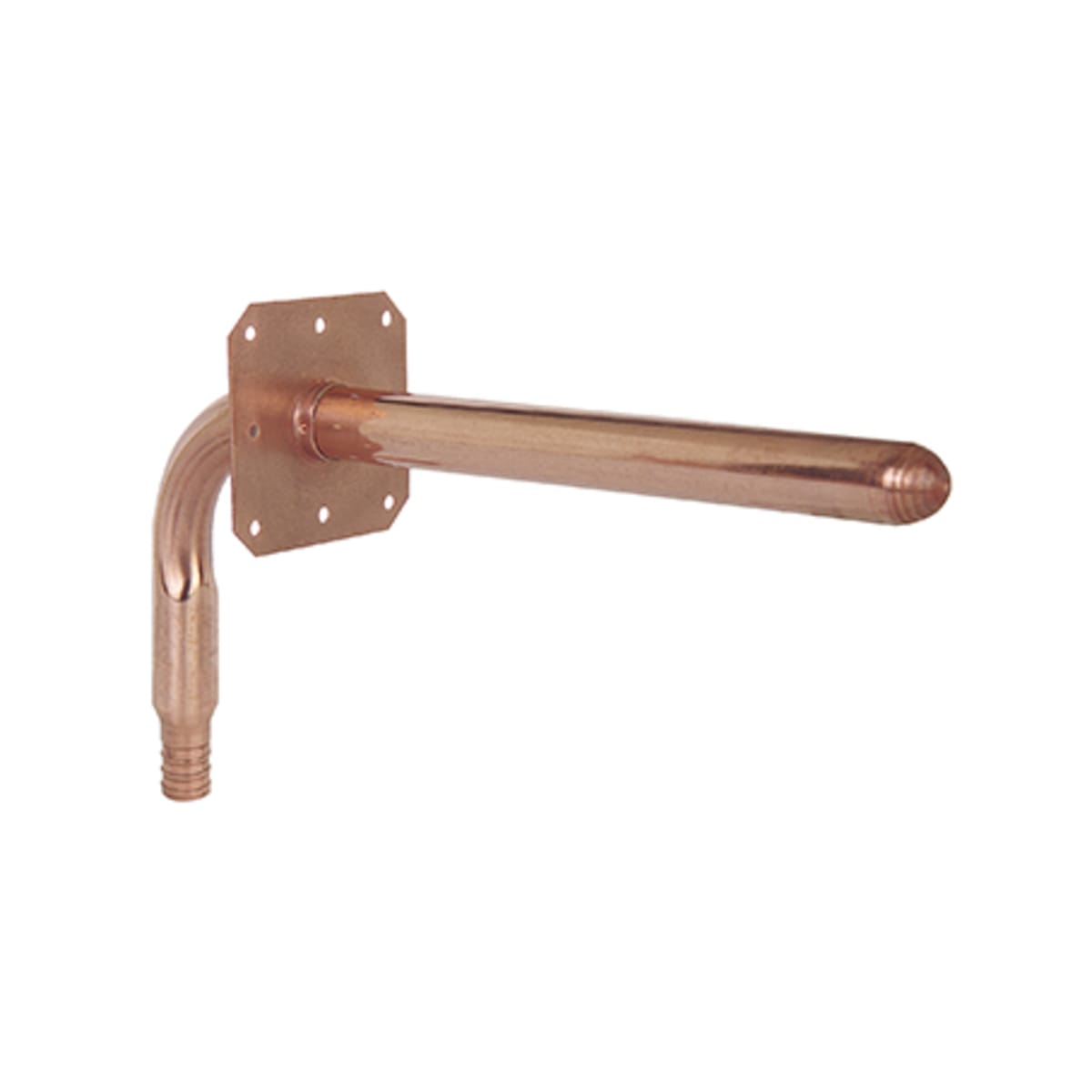

Sioux Chief 630X248E Copper Stub Out Elbow for 1/2 inches PEX Tubing, with Ear

Product Description

The SIOUX CHIEF 630X248E is a copper stub out elbow designed for 1/2" PEX tubing, and includes an ear. It is suitable for plumbing applications. The elbow combines the easy adaptation of copper stub outs with the easy installation of PEX systems.

• Square O-Strap Affix Easily to the Edge Bracket or any Backing Board to Provide Solid Installation
• Combines easy adapting of copper stub out with easy installation of PEX System
• Accepts sweat, push fitting and compression valve

Product Highlights

This copper stub out elbow is ideal for transitioning between PEX tubing and copper pipes. Its square O-strap allows for easy and secure installation.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630X248E
• Country of Origin: US

Technical Specifications

• Material: Copper,Pex
• Measurement System: Inch
• Size: 1/2" x 3-1/2" x 8"
• Type: Stub Out Elbows
• Connection_Type: F1807 (Crimp)
• Description: Ell 1/2 X 3-1/2 X 8 Pex Stub-out W/ Ear
• Manufacturer: Sioux Chief
• Model #: 630
• PDW MFR CAT: 630X248E
• Pittman #: 130396
• Brand: SIOUX CHIEF
• Item Description: ELL 1/2 X 3-1/2 X 8 PEX STUB-OUT W/ EAR
• ITEM: 630X248E
• Length: 3-1/4 inch x 8 inch
• Nominal Size: 1/2 inch CTS
• Pressure Rating: 160 psi
• Bend Radius: 1-1/4 inch
• Bend Angle: 90 Deg
• Length 1: 3-1/4 inch
• Length 2: 8 inch
• Connection Type: CTS PEX
• Temperature Rating: 200 Deg F
• Item Type: Copper Stub Out Elbows
• Item Number: 630X248E
• UPC: 739236495266
• Application: Plumbing
• Inclusions/Features: Square O-Strap
• Lead-Free: True
• Packaging Type: Bulk
• Tube Size: 1/2 Inch
• Height (Inches): 3.5"
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 1/2 IN
• Connection 2 Type: Closed
• Height: 3-1/2 IN
• Square Strap?: Yes
• Stub-out length: 8"
• Inlet: 1/2" PEX, crimp style
• Copper pipe size: 1/2"
• Shape: 90 Deg Elbow
• Number in Pack: 1
• Dimensions: 8 in W
• Domestic/Import: Domestic
• Fitting/Connector Type: 90 deg Elbow
• Standard/Approvals: ASTM F1807
