Sioux Chief 630X248E copper stub out elbow for 1/2 in PEX with ear 1/2 in x 3-1/2 in x 8 in S630X248E

Product Description

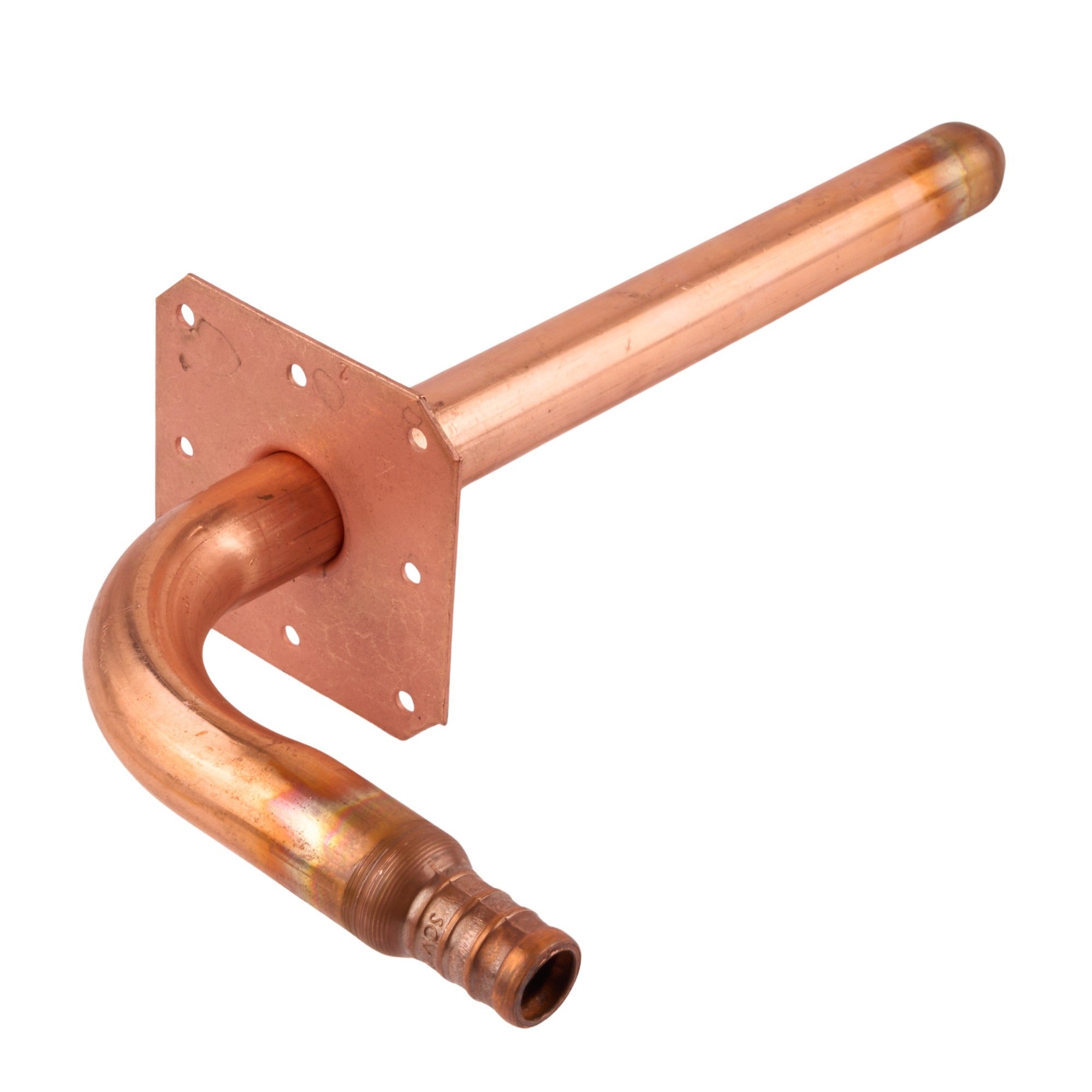

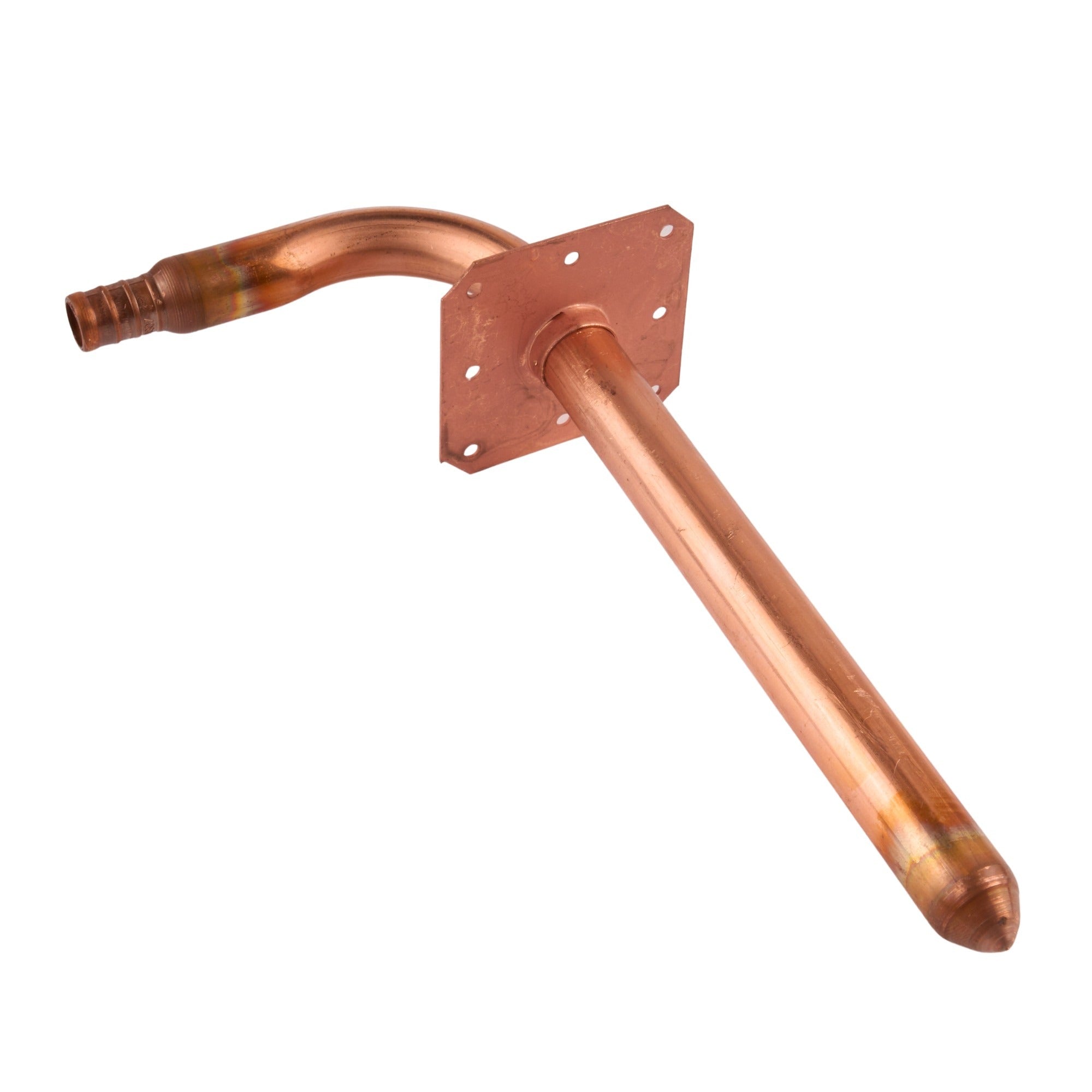

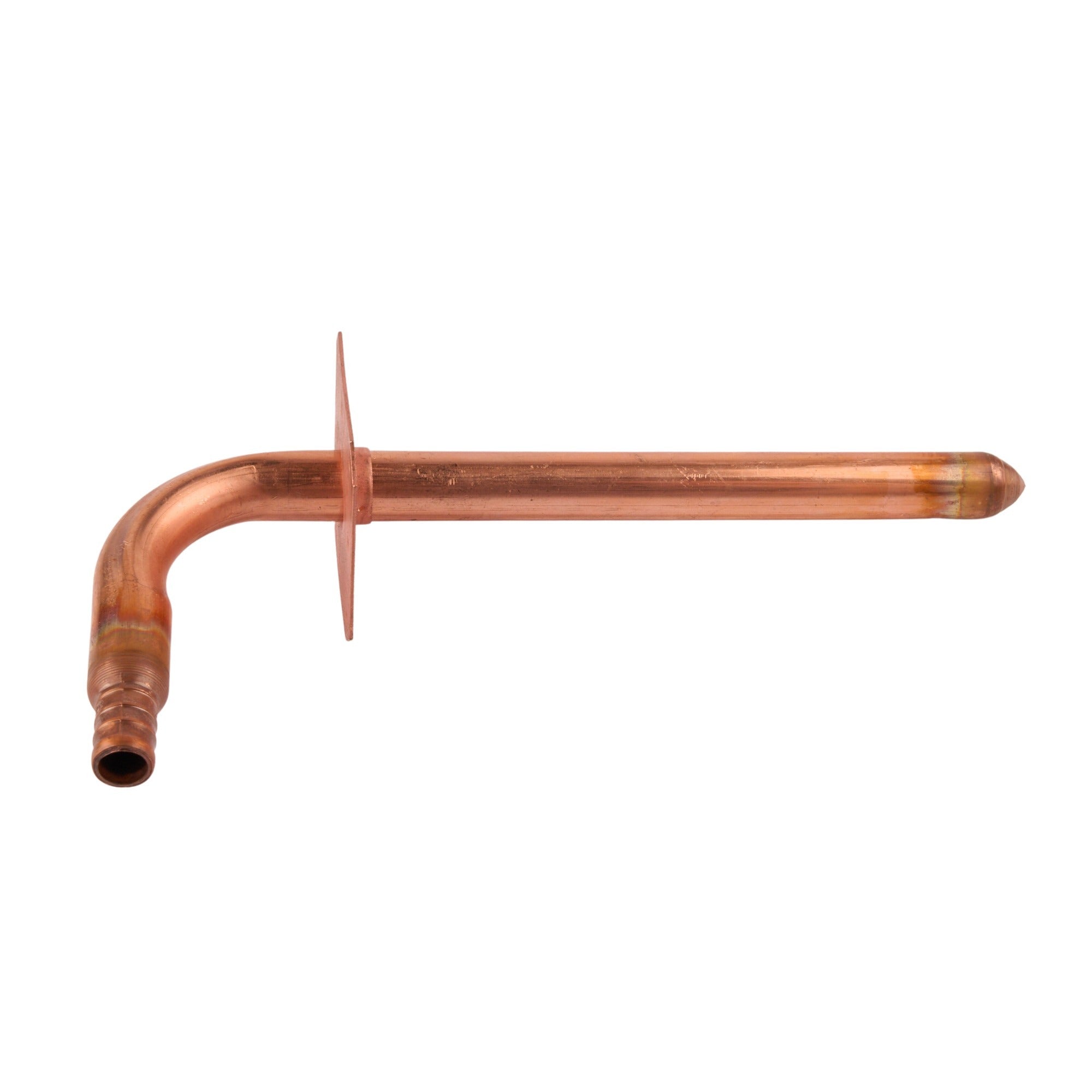

Sioux Chief 630X248E is a copper stub-out elbow designed for 1/2 in PEX tubing and includes an integral ear for secure mounting. The fitting measures 1/2 in x 3-1/2 in x 8 in and accepts PowerPEX crimp connections as well as sweat, push-fitting, and compression stop valves. It is intended for plumbing rough-ins, fixture stub-outs, and hot and cold water distribution or hydronic heating applications.

• Type L copper construction with integral ear and square O-strap for mounting
• End style: ASTM F1807 PowerPEX crimp x CTS; accepts sweat, push-fitting, and compression valves
• Overall dimensions 1/2 in x 3-1/2 in x 8 in; lead-free design; unit sold individually

Product Highlights

Type L copper PEX stub-out elbow, ASTM F1807 PowerPEX crimp x CTS end, 3-1/2 in stub length with 8 in strap, accepts multiple valve connections, integral mounting ear/square O-strap

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630X248E
• Country of Origin: US

Technical Specifications

• Brand: Sioux Chief
• Manufacturer: Sioux Chief
• Manufacturer Part Number: 630X248E
• Replacement Part Number: S630X248E
• Product Type: PEX stub-out elbow
• Series: 630
• Nominal Size: 1/2 in
• Dimensions: 1/2 in x 3-1/2 in x 8 in
• Stub Length: 3-1/2 in
• Strap Width/Length: 8 in
• Material: Type L copper
• End Type: ASTM F1807 PowerPEX crimp x CTS
• Connections Accepted: Sweat, push-fitting, compression stop valves
• Mounting: Integral ear and square O-strap; multiple mounting holes for side/bottom/top
• Standards/Certifications: ASTM F1807; ASTM F876/F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 372; NSF/ANSI/CAN 61
• Lead Free: Yes
• Unit of Measure: Each
• Package Quantity: 1
• Weight: 4.8 ounces (0.30 lb)
• UPC: 73923649526
• ASIN: B003QSM7KE
• Country of Origin: US
• Application: Hot and cold water distribution; hydronic heating; plumbing rough-ins and fixture stub-outs
• Radius: 1-1/4 in
• Catalog Number: 630X248E
