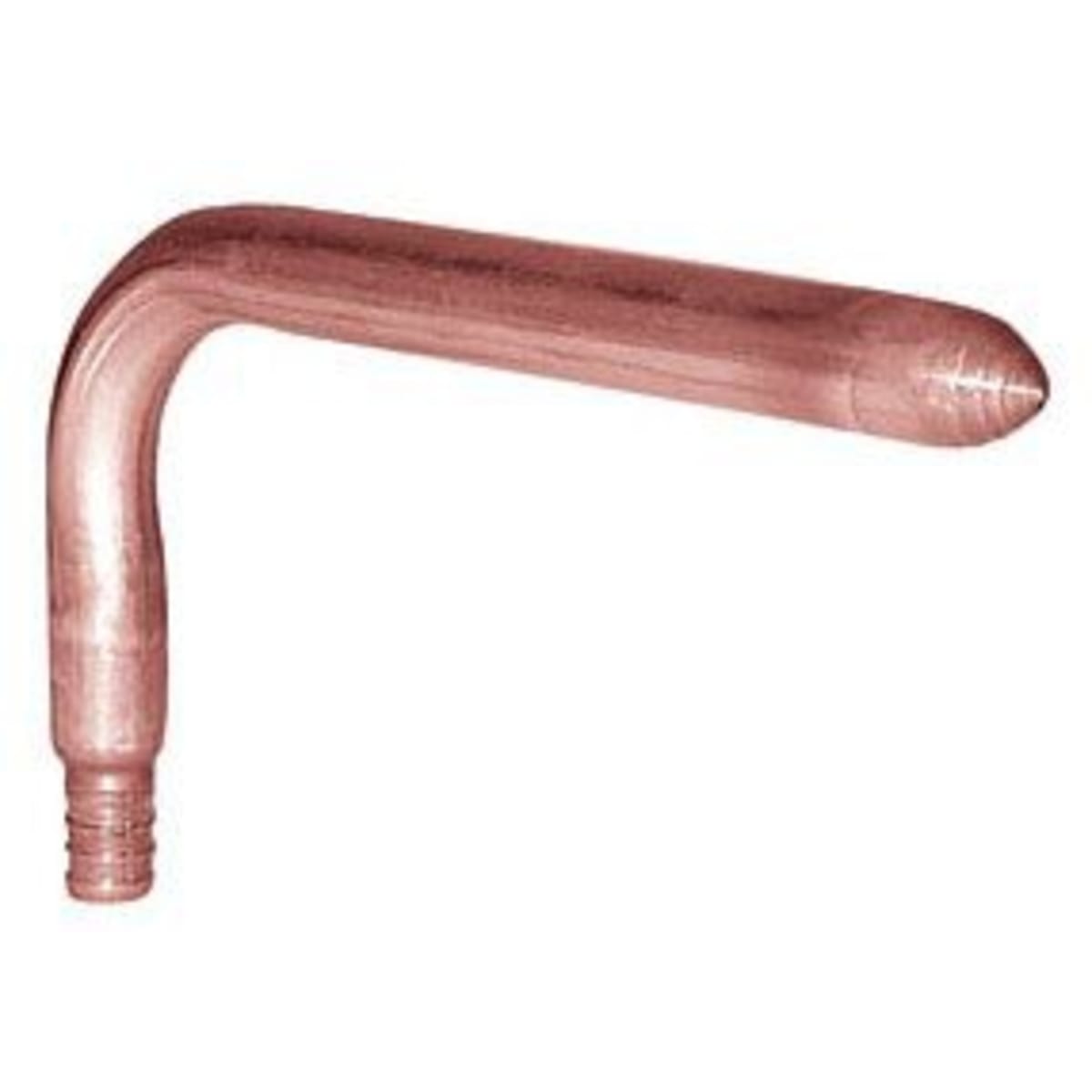

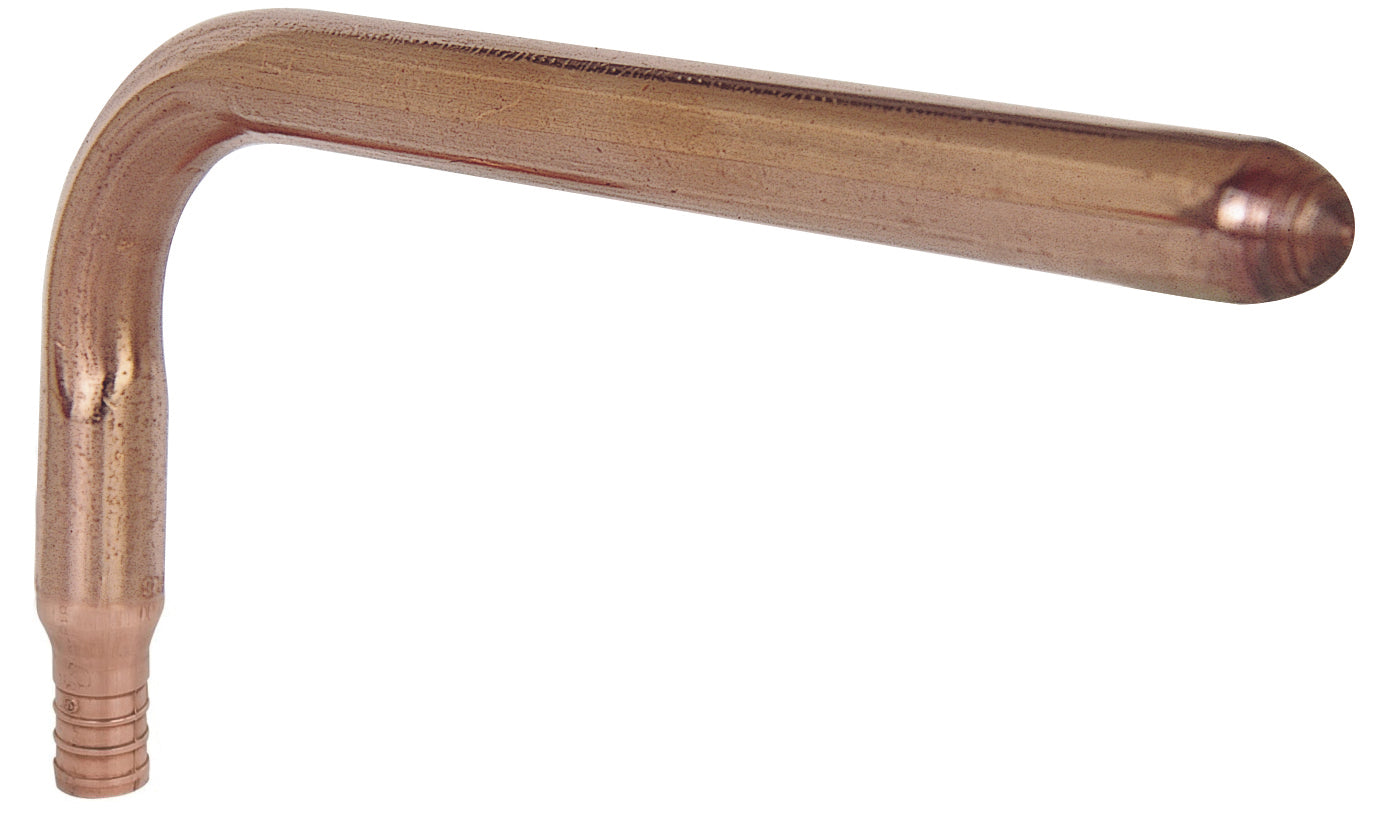

Sioux Chief 630X248 PowerPex 1/2 in x 8 in. F1807 Copper Brass Stub Out Elbow

Product Description

The SIOUX CHIEF 630X248 combines easy adapting of copper stub outs with easy installation of PEX. It accepts sweat, push-fitting, and compression stop valves. Multiple mounting holes allow for installations on sides, bottom, or top. This stub out elbow is made of no-lead type L copper.

• Combines easy adapting of copper stub outs with easy installation of PEX
• Square o straps affix easily to bracket or any backing board to provide solid installations
• Accepts sweat, push-fitting, and compression stop valves

Product Highlights

The SIOUX CHIEF 630X248 is ideal for transitioning between PEX tubing and copper pipes. Its design allows for pressure testing before stop valve installation, preventing debris from entering pipes during construction.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630X248
• Country of Origin: US

Technical Specifications

• Nominal Size: 1/2 inch
• Connection Type: PEX
• Material: No-Lead Type L Copper
• Standards: ASTM F1807
• Angle: 90 deg
• End Style: F1807 PowerPEX Crimp x CTS
• Fitting/Connector Type: 90 deg Elbow
• Length: 3-1/4 in
• Type: 1-Piece Standard
• Connection Size: 1/2 in CTS
• Item Name: Stub Out Elbow
• Sub Brand: PowerPEX
• Tube Size: 1/2 Inch
• End Type: ASTM F1807 PEX
• Application: Hot and Cold Water Distribution System, Hydronic Heating
• Applicable Standard: NSF 14, CUPC, CSA
• Lead-Free: True
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 1/2 IN
• Connection 2 Type: Closed
• Height: 3-1/2 IN
• Length 2: 8 IN
• Material Specification: ASTM F1807
• Bend Angle: 90 Deg
• Bend Radius: 1-1/4 inch
• Pressure Rating: 160 psi
• Temperature Rating: 200 Deg F
• Domestic/Import: Domestic
• Copper pipe size: 1/2"
• Inlet: 1/2" PEX, crimp style
• Stub-out length: 8"
• Height (part with PEX outlet): 3.5"
