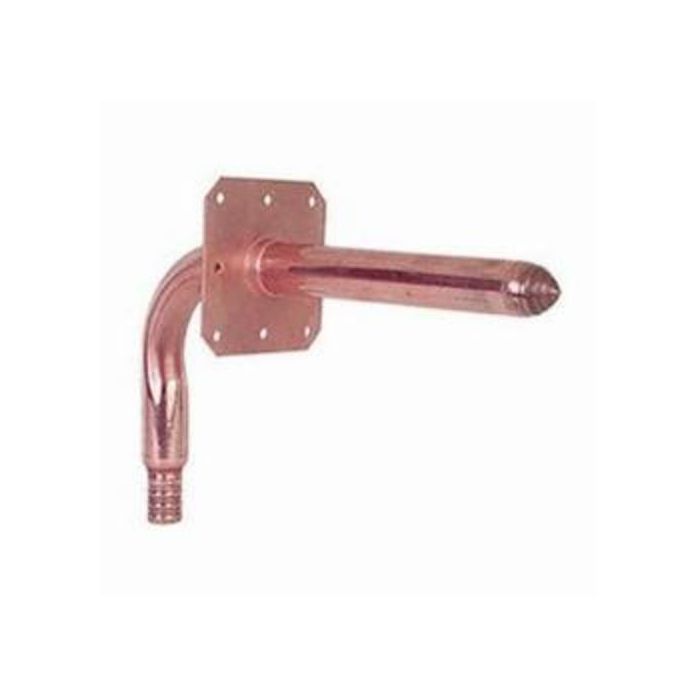

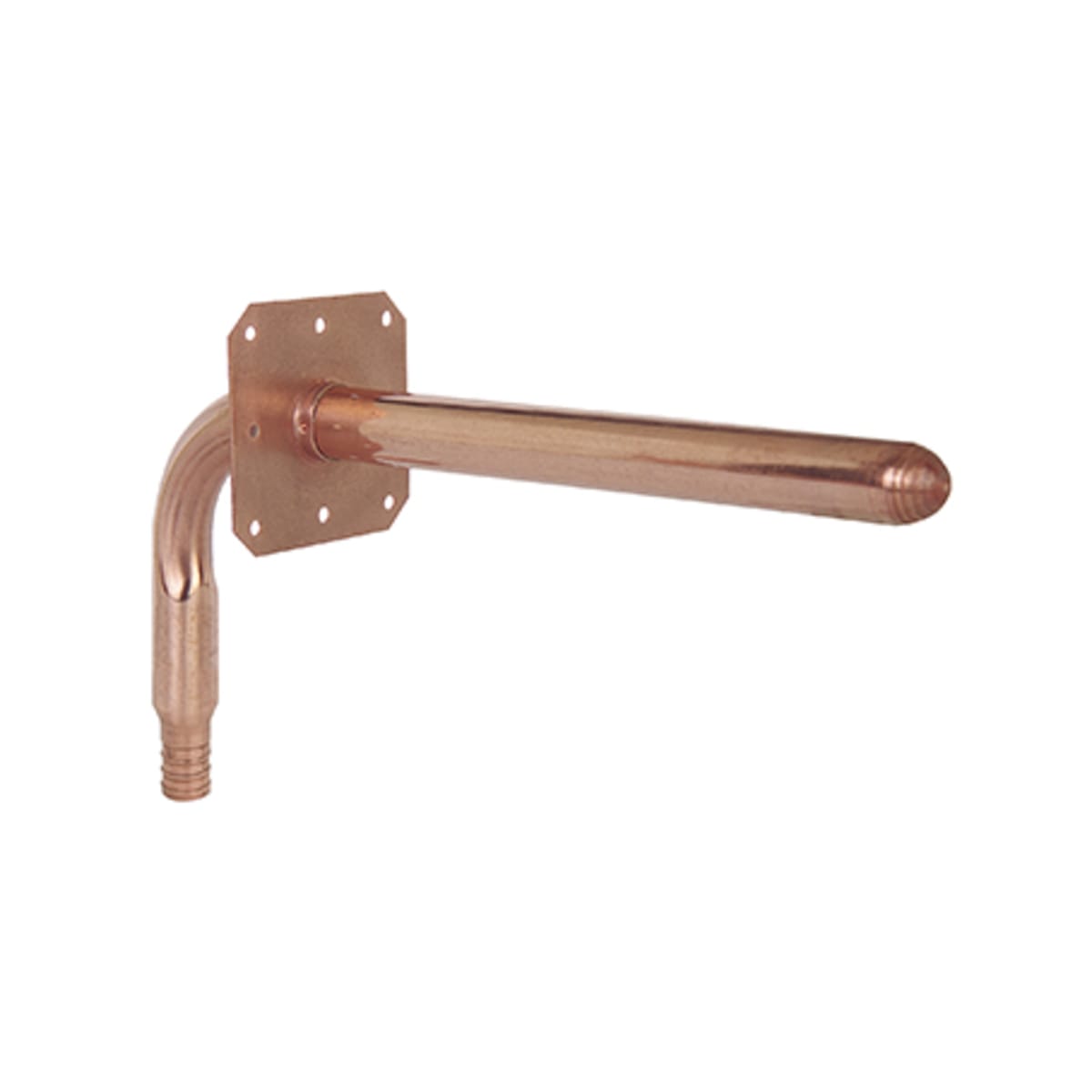

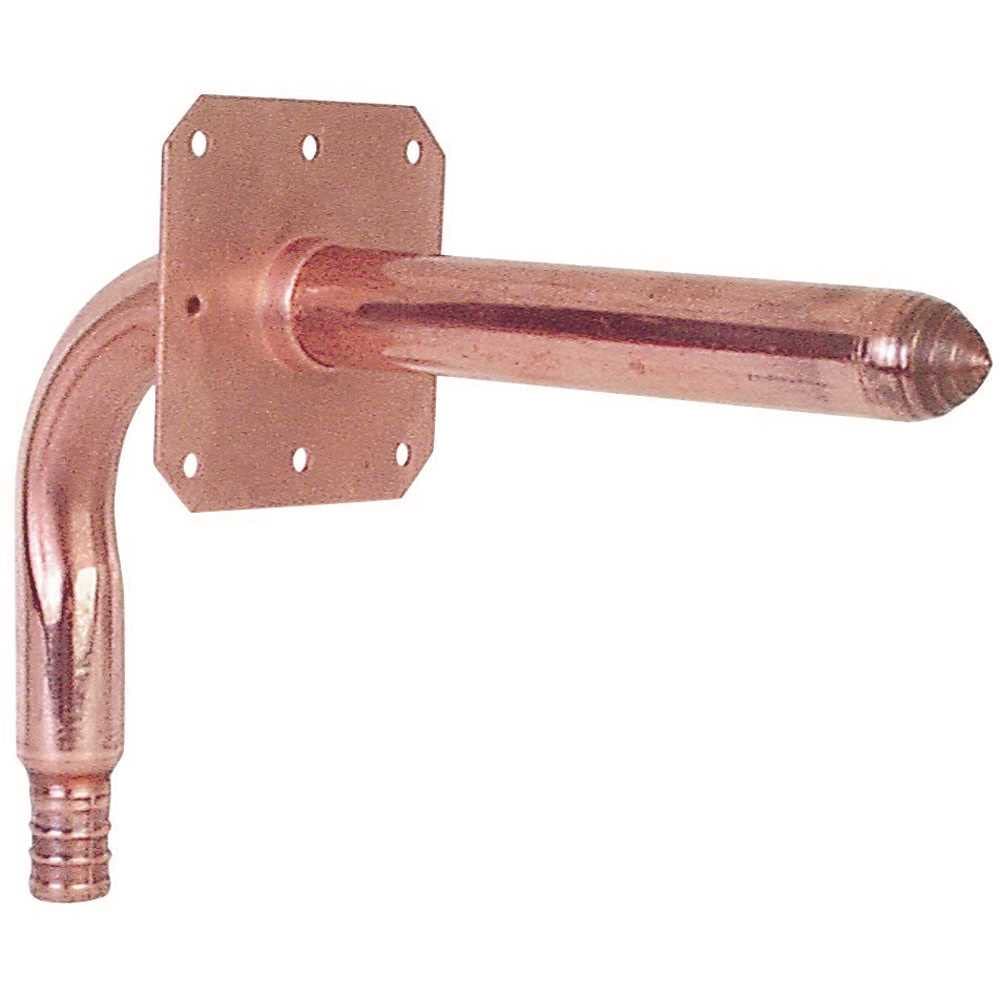

Sioux Chief 630X246E Copper Stub Out Elbow for 1/2 inches PEX tubing, with Ear, 6 inches x 3.5 inches

Product Description

The SIOUX CHIEF 630X246E is a copper stub out elbow designed for 1/2" PEX tubing, featuring an ear for mounting. It facilitates the transition between PEX tubing and copper pipes, ideal for stubbing out of walls or floors. The spin-closed outlet allows pressure testing and prevents debris from entering during construction.

• Features a square O-strap (ear) with pre-drilled holes for mounting.
• Compatible with sweat, push-fitting, and compression valves.
• Made from Type L copper.

Product Highlights

This copper stub out elbow combines easy adapting of copper stub outs with easy installation of PEX systems.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630X246E
• Country of Origin: US

Technical Specifications

• Color: Copper
• Connector Type: Elbow
• Exterior Finish: Copper
• Batteries Included?: No
• Batteries Required?: No
• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection: PEX Barb x PEX Barb
• Material: Copper
• Brand: SIOUX CHIEF
• Inlet: 1/2" PEX (F1807)
• Outlet: Spin closed
• Pipe Size: 1/2" copper pipe size
• Features: Square O-strap (ear) with pre-drilled holes
• Country of Origin: US
• Dimensions: 6 in W
• Domestic/Import: Domestic
• End Style: F1807 PowerPEX Crimp x CTS
• Fitting/Connector Type: Elbow
• Length: 3-1/2 in
• Mfg Standards/Approvals: ASTM F1807
• Nominal Size: 1/2 in
• Type: Square O-Strap
• Size: 1/2" x 3-1/2" x 6"
• Connection_Type: F1807 (Crimp)
• Angle: 90 deg
• Connection Size: 1/2 in CTS
• Connection Type: PEX
• Height: 3-1/2 in
• Item Name: Stub Out Elbow with Square O Strap
• Material Specifications: ASTM F1807
• Sub Brand: PowerPEX
• Item: Stub-Out Elbow
• Pressure Rating: 160 psi
• Bend Radius: 1-1/4 inch
• Bend Angle: 90 Deg
• Length 1: 3-1/2 inch
• Length 2: 6 inch
• Item Dimensions L x W: 12.25"L x 9.06"W
• Item Weight: 0.25 Pounds
• Unit Count: 1.0 Count
• Number of Items: 1
• Material Type: solid
• Tube Size: 1/2 Inch CTS
• End Type: ASTM F1807 PEX
• Application: Plumbing
• Inclusions/Features: Square O-Strap
• Lead-Free: Yes
• Radius: 1-3/4 Inch
• Packaging Type: Bulk
• Fitting Type: 90 deg Elbow
• Standards/Approvals: ASTM F1807
