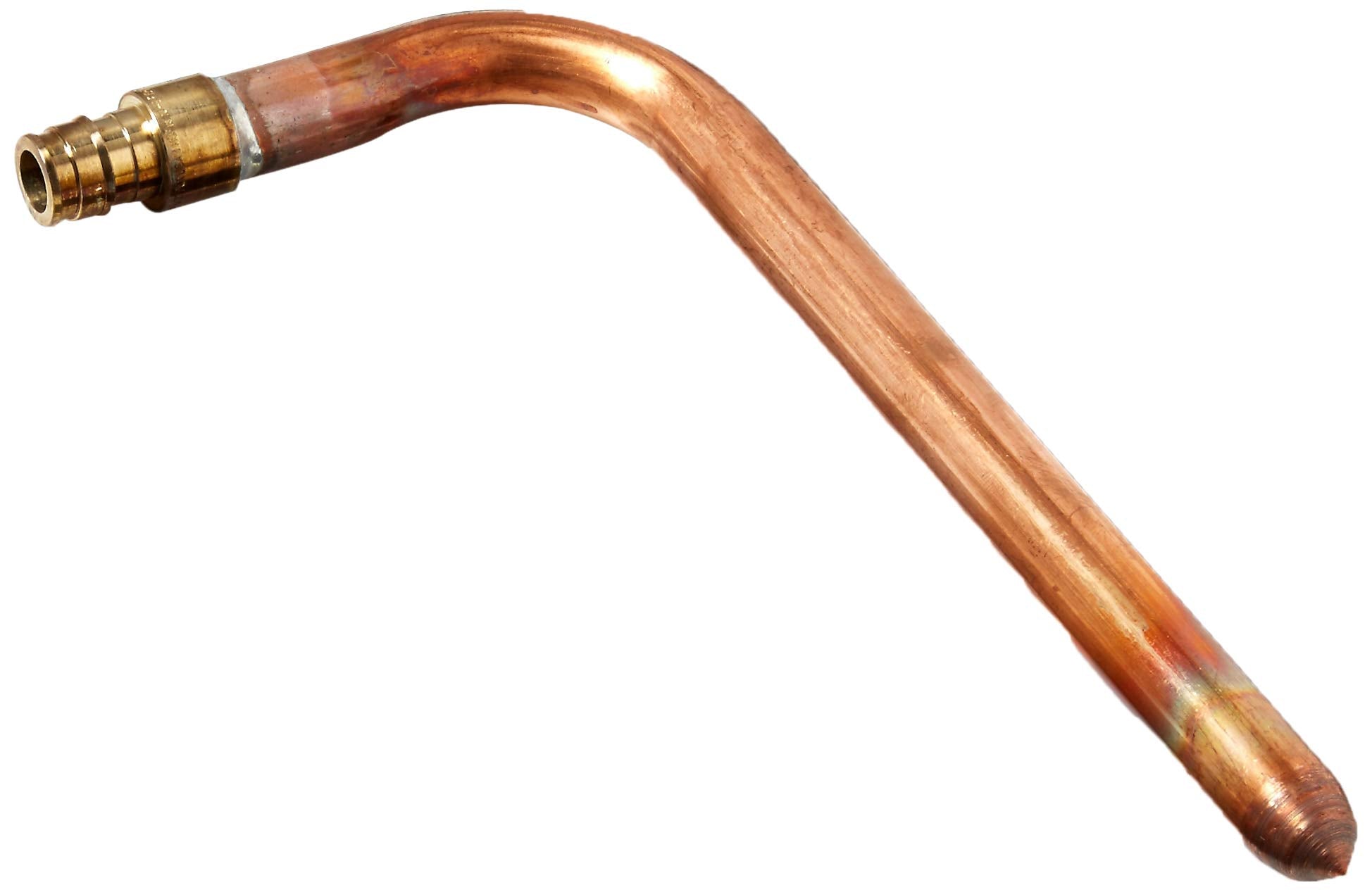

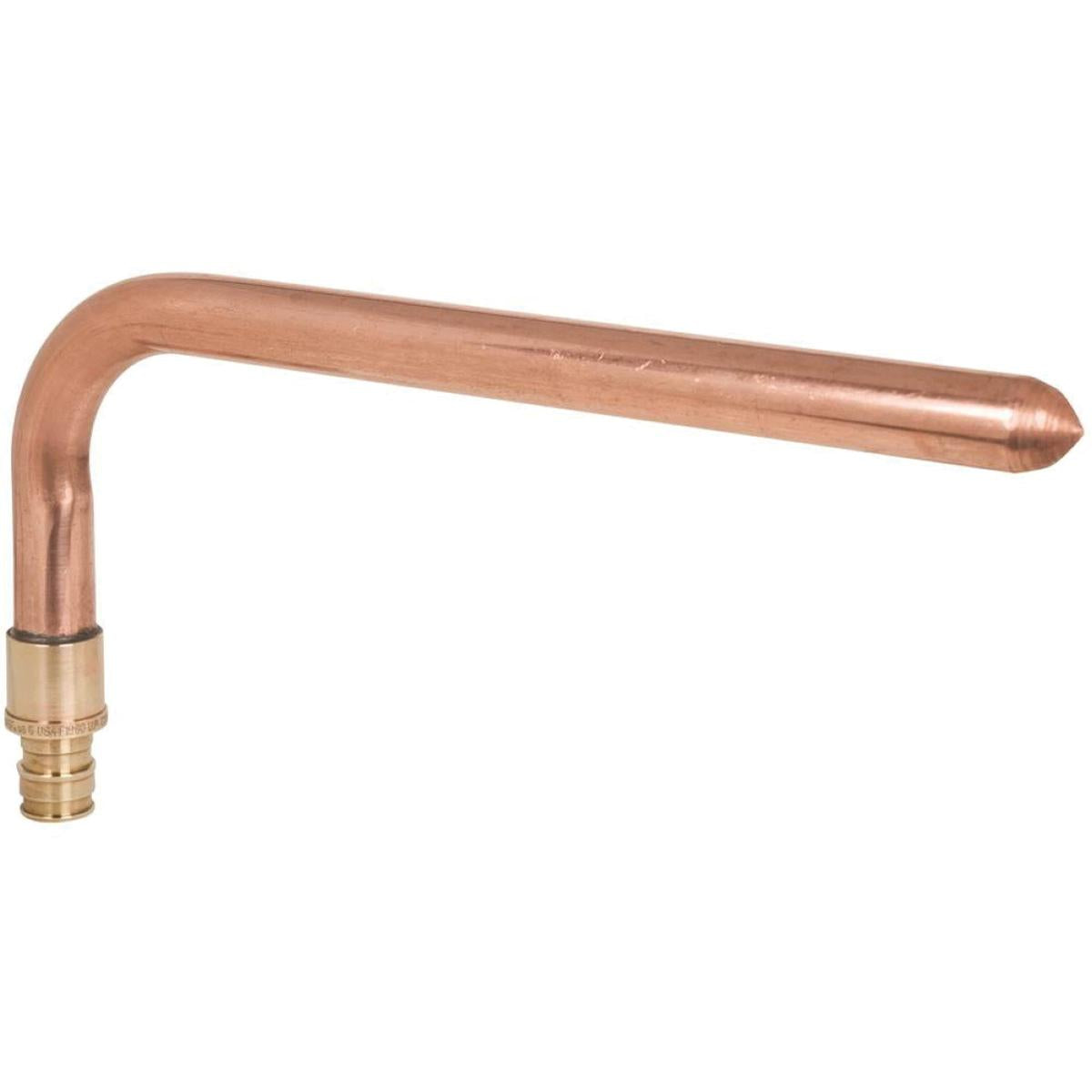

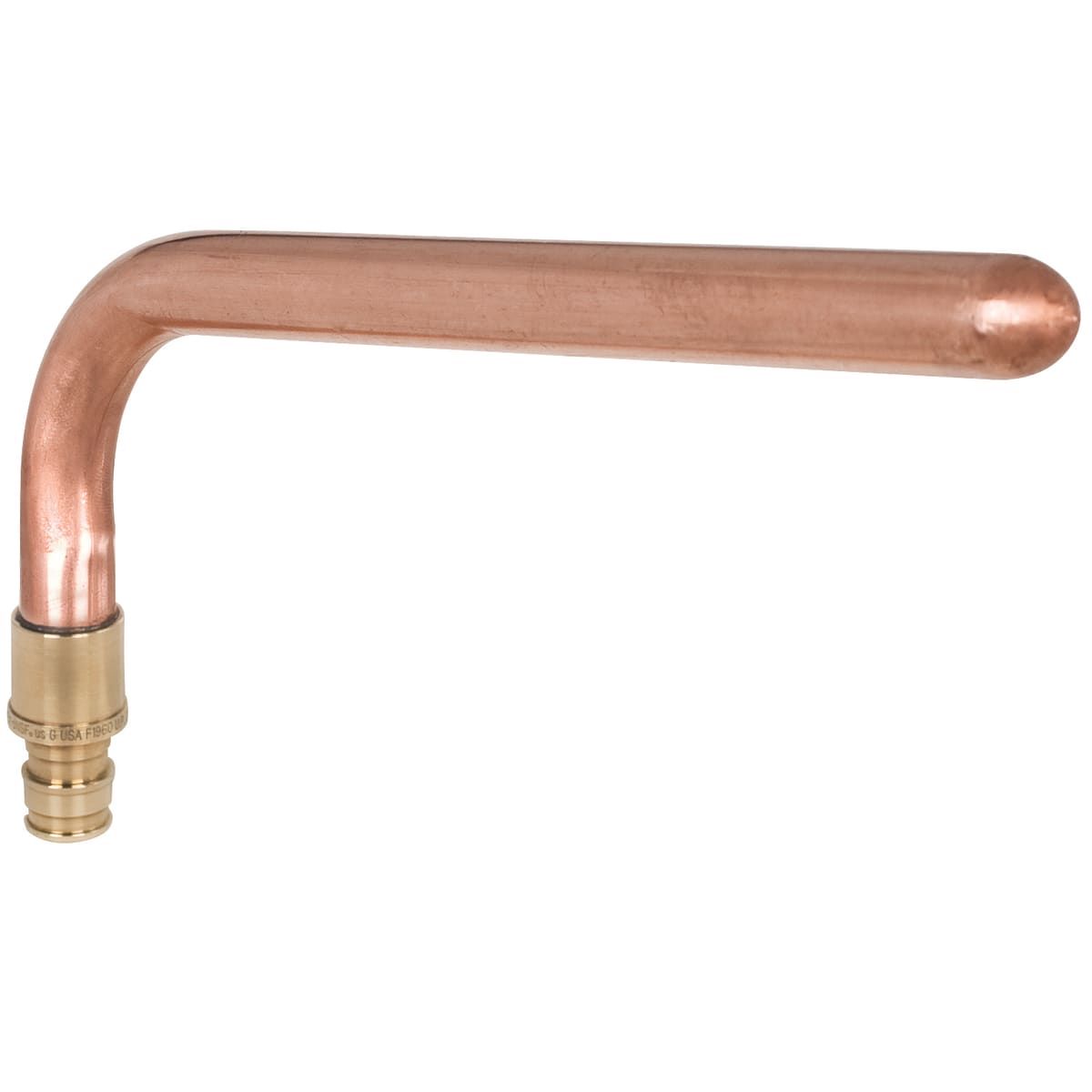

Sioux Chief 630WG248 PowerPEX 1/2 x 8 in. PEX Expansion x Elbow Stub End Copper Elbow Stub Out

Product Description

The Sioux Chief 630WG248 PowerPEX copper elbow stub out combines easy adapting of copper stub outs with easy installation of PEX. It accepts sweat, push-fitting, and compression stop valves. Square o straps affix easily to bracket or any backing board to provide solid installations. Multiple mounting holes allow for installations on sides, bottom, or top.

• Accepts sweat, push-fitting, and compression stop valves
• Combines easy adapting of copper stub outs with easy installation of PEX
• Square o straps affix easily to bracket or any backing board to provide solid installations
• Multiple mounting holes allow for installations on sides, bottom, or top

Product Highlights

This PowerPEX copper elbow allows for adapting to copper stub outs with easy PEX installation. It provides solid installation with square o straps and multiple mounting holes.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630WG248
• Country of Origin: US

Technical Specifications

• ASTM: ASTM F-1960, ASTM F-876
• Collection: PowerPEX®
• End Connection 1: PEX Expansion
• End Connection 2: Stub End
• End Connections: PEX Expansion x Stub End
• Fitting Size 1: 1/2
• Fitting Size 2: 1/2
• Fitting Sizes: 1/2 in
• Fitting Type: Stub Out
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Copper
• NSF: NSF 14
• NSF Certified: Yes
• UPC: 739236404633
• Vendor: Sioux Chief
• Product: Elbow
• Model Number: 630WG248
• Product Category: PVF
• Product GTIN/EAN: 0739236404633
• Application: Stub Out Elbow
• Size: 1/2 in
• Connection Type: F1960 PEX
• Lead-Free: Yes
• Country of Origin: US
• End Style: CTS
• Fitting/Connector Type: Elbow
• Mfg Standards/Approvals: ASTM F1960
• Nominal Size: 1/2 in
• Series: 630
• Type: Standard
• Connection Size: 1/2 in
• Item Name: Stub Out Elbow
• Material Specifications: ASTM F1960
• Sub Brand: PowerPEX
• Radius: 1-1/4 inch
• Standards/Approvals: ASTM F1960
• Inlet: 1/2" PEX (F1960, expansion style)
• Copper pipe size: 1/2"
• Bend Radius: 1-1/4 inch
• Bend Angle: 90 Deg
• Pressure Rating: 160 psi
• Temperature Rating: 200 Deg F
• Item Type: Copper Stub Out Elbows
• Tube Size: 1/2 Inch
• Mfr. Name: Sioux Chief
• APR Part #: 1839612
