Sioux Chief 630-C248 Stub Out Ell 1/2 inch

Product Description

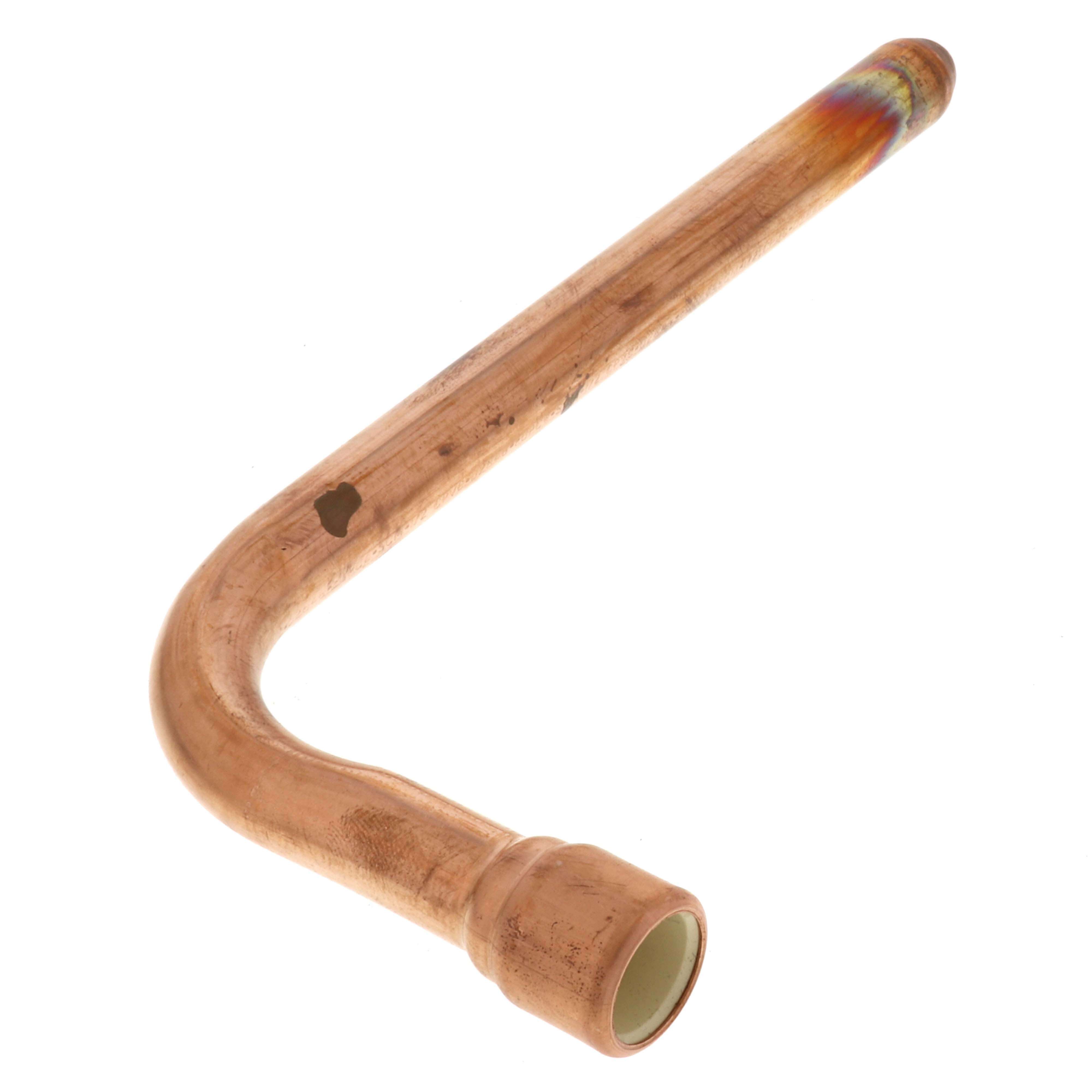

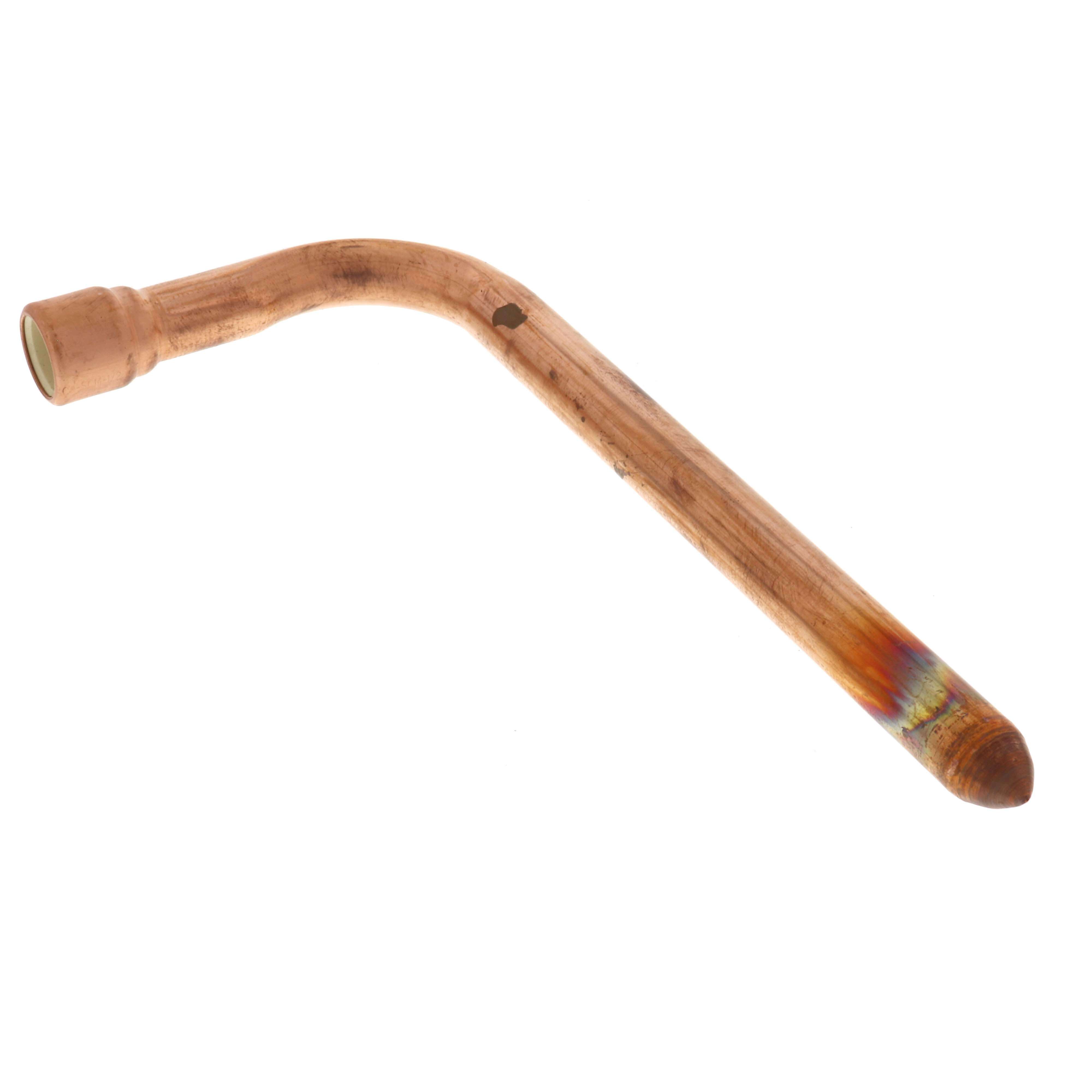

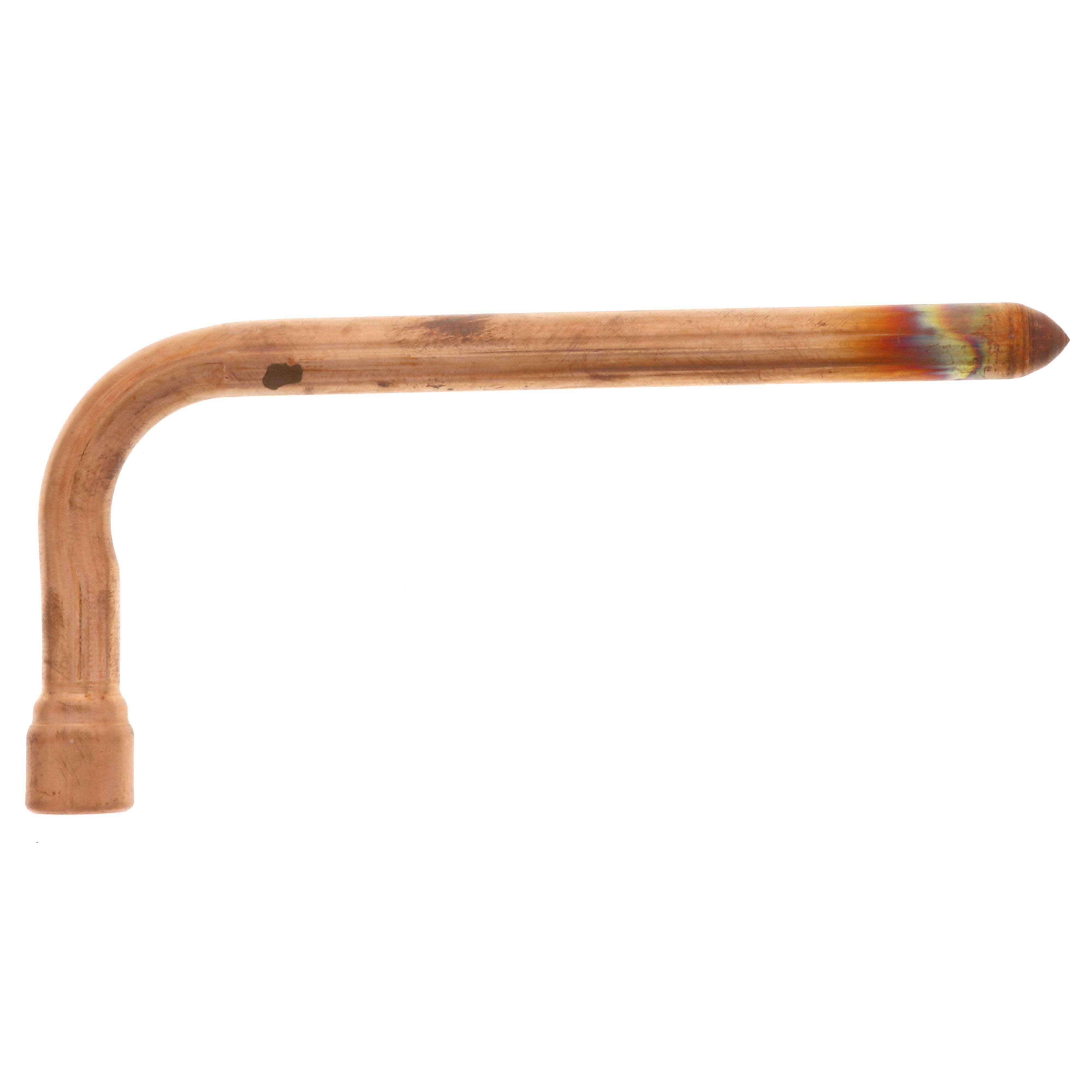

The SIOUX CHIEF 630-C248 stub out ell combines CPVC installation ease with copper's strength. It accepts sweat, push-fitting, and compression stop valves. The spin closed ends are guaranteed leak proof. This stub-out elbow is suitable for domestic applications and features a 1/2 inch nominal size.

• Combines CPVC and copper materials
• Guaranteed leak-proof spin closed ends
• Accepts sweat, push-fitting, and compression stop valves

Product Highlights

This stub out elbow combines elbow and cap in one fitting. It features a 1-1/4 inch radius bend for decreased turbulent flow and noise.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 630-C248
• Country of Origin: US

Technical Specifications

• Part Number: 630-C248
• Item Package Quantity: 1.0
• Batteries Included?: No
• Batteries Required?: No
• Nominal Size: 1/2 in
• Material: CPVC Socket, Copper
• Series: 630
• Fitting/Connector Type: 90 deg Elbow
• End Style: CPVC Socket
• Application: Domestic
• Size: 1/2"
• Connection Type: Socket
• Supply Connection: CPVC x Spin Closed
• Country of Origin: US
• Product: Elbow
• Product UPC: 739236401977
• UNSPSC Code: 40172800
• Model Number: 630-C248
• Product Category: PVF
• Product GTIN/EAN: 0739236401977
• Tube Size: 1/2 Inch
• Applicable Standard: ASME/ANSI B16.22, UPC/IAPMO, IPC/ICC
• Lead-Free: Lead-Free
• Radius: 1-1/4 Inch
• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Bend Radius: 1-1/4 inch
• Bend Angle: 90 Deg
• Pressure Rating: 160 psi
• Temperature Rating: 200 Deg F
• Item: Stub-Out Elbow
• Type: L, Standard
