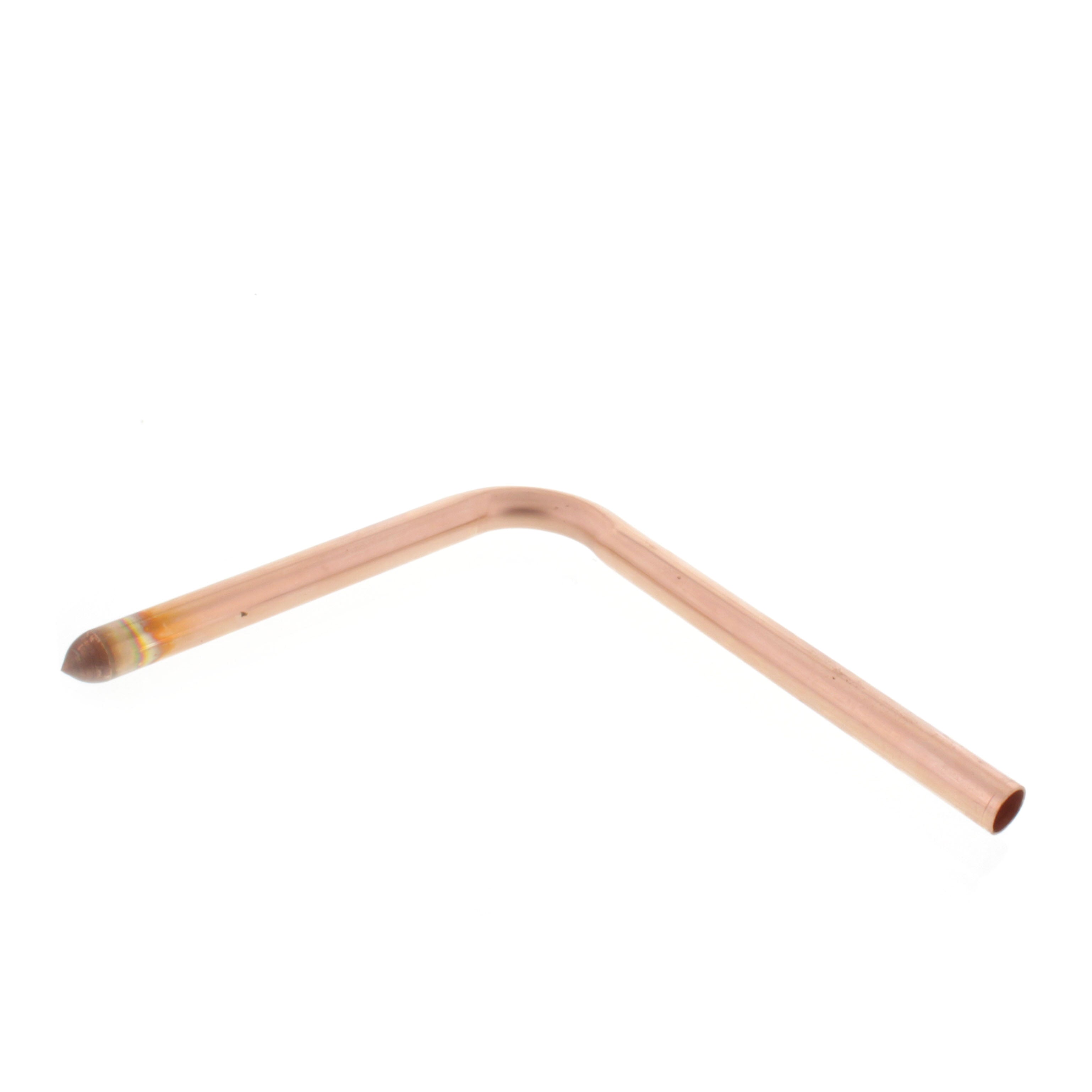

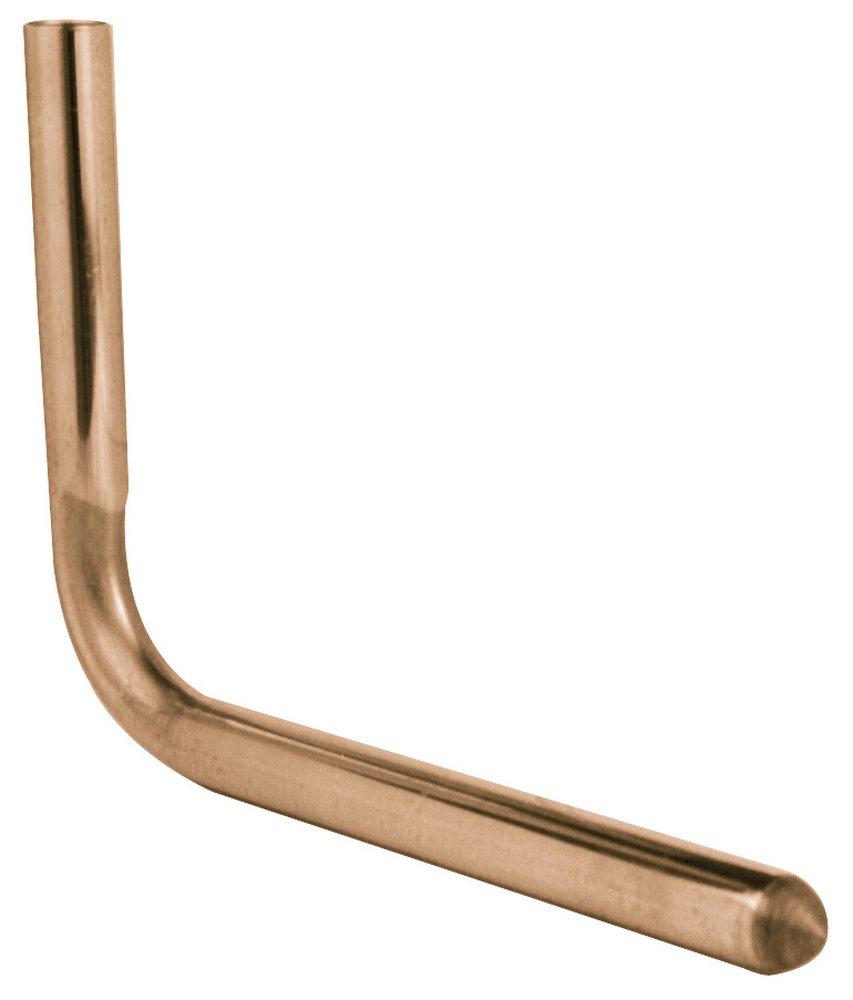

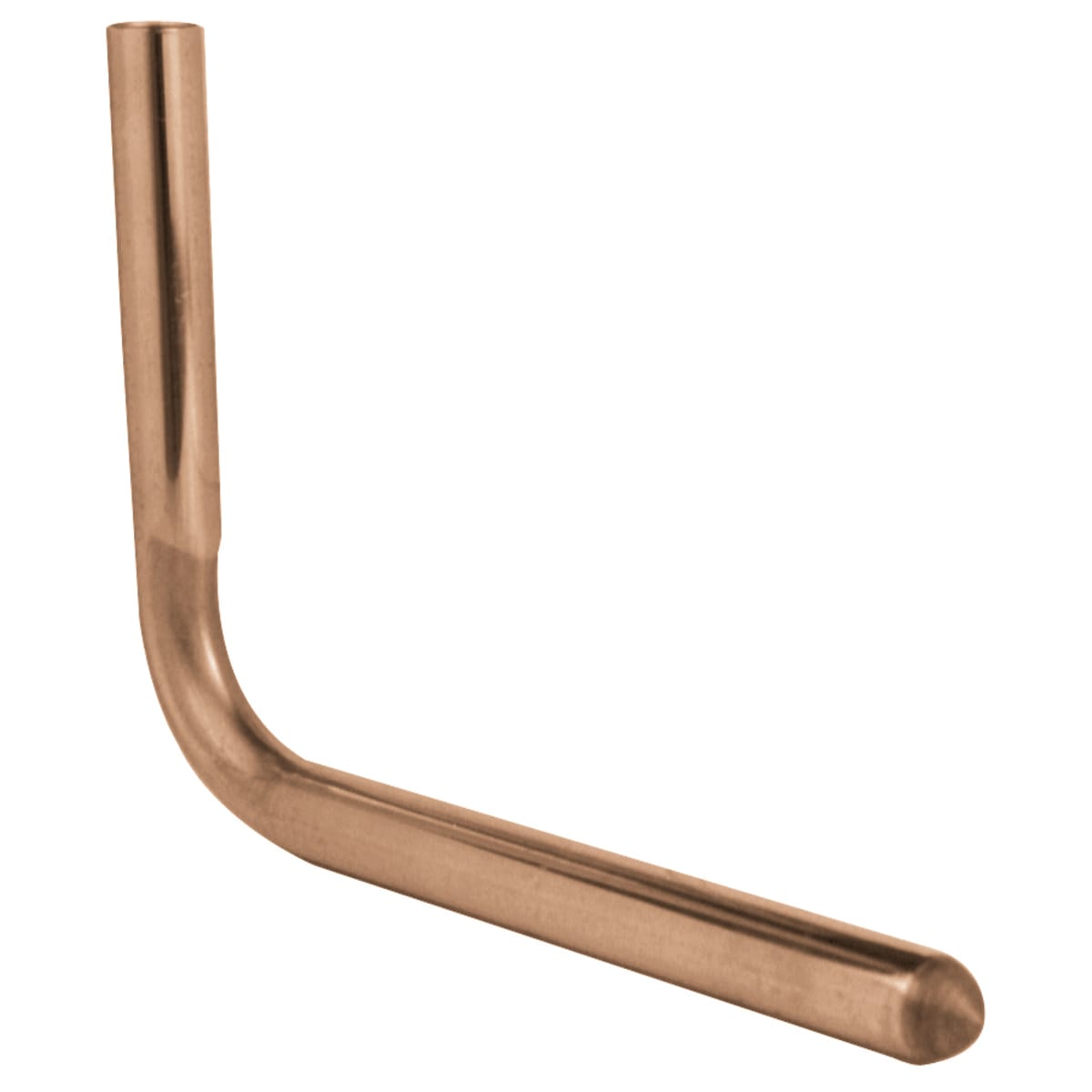

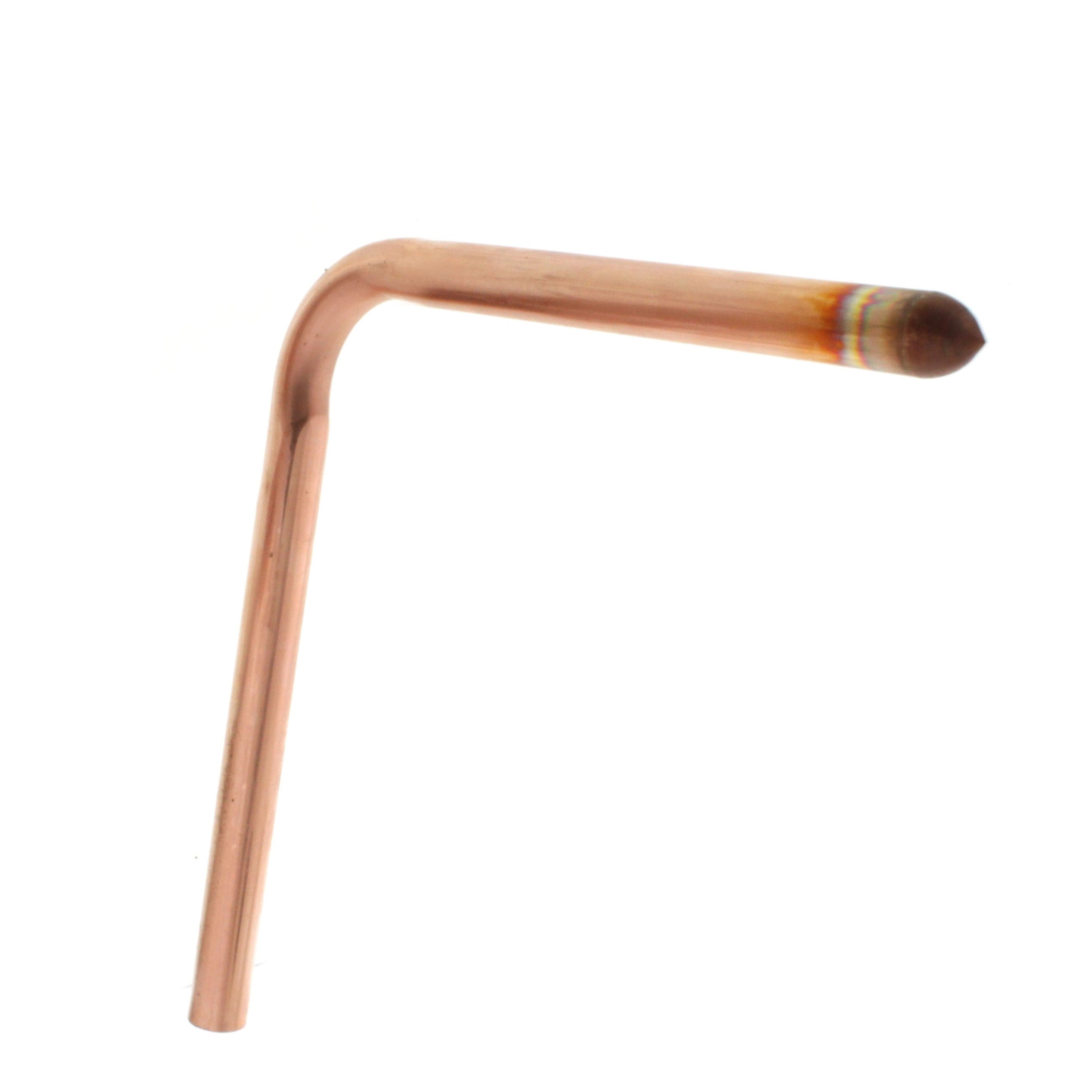

Sioux Chief 613-87 Tub Stub Out With Square Strap 1/2 feet' 8 feet' x 7 feet'

Product Description

The SIOUX CHIEF 613-87 tub stub out with square strap is designed for connecting a tub valve to a spout nipple. This elbow fitting is constructed from preformed copper and features a male soldered end type. It conforms to ASME/ANSI B16.22, UPC/IAPMO, and IPC/ICC standards.

• Features a 1/2 Inch CTS tube size
• Constructed from preformed copper
• Lead-free and suitable for potable water use

Product Highlights

This tub spout elbow simplifies the installation of bath tub spouts and saves on labor and installation costs.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 613-87
• Country of Origin: USA

Technical Specifications

• Material: Copper
• Size: 1/2 Inch
• Tube Size: 1/2 Inch CTS
• End Type: Male Soldered
• Applicable Standard: ASME/ANSI B16.22, UPC/IAPMO, IPC/ICC
• Lead-Free: True
• Radius: 1-1/4 Inch
• Type: L
• Connection: Male Sweat
• Nominal Size: 1/2 inch CTS
• Pressure Rating: 160 psi
• Bend Radius: 1-1/4 inch
• Bend Angle: 90 Deg
• Connection Type: CTS Male Sweat
• Temperature Rating: 200 Deg F
