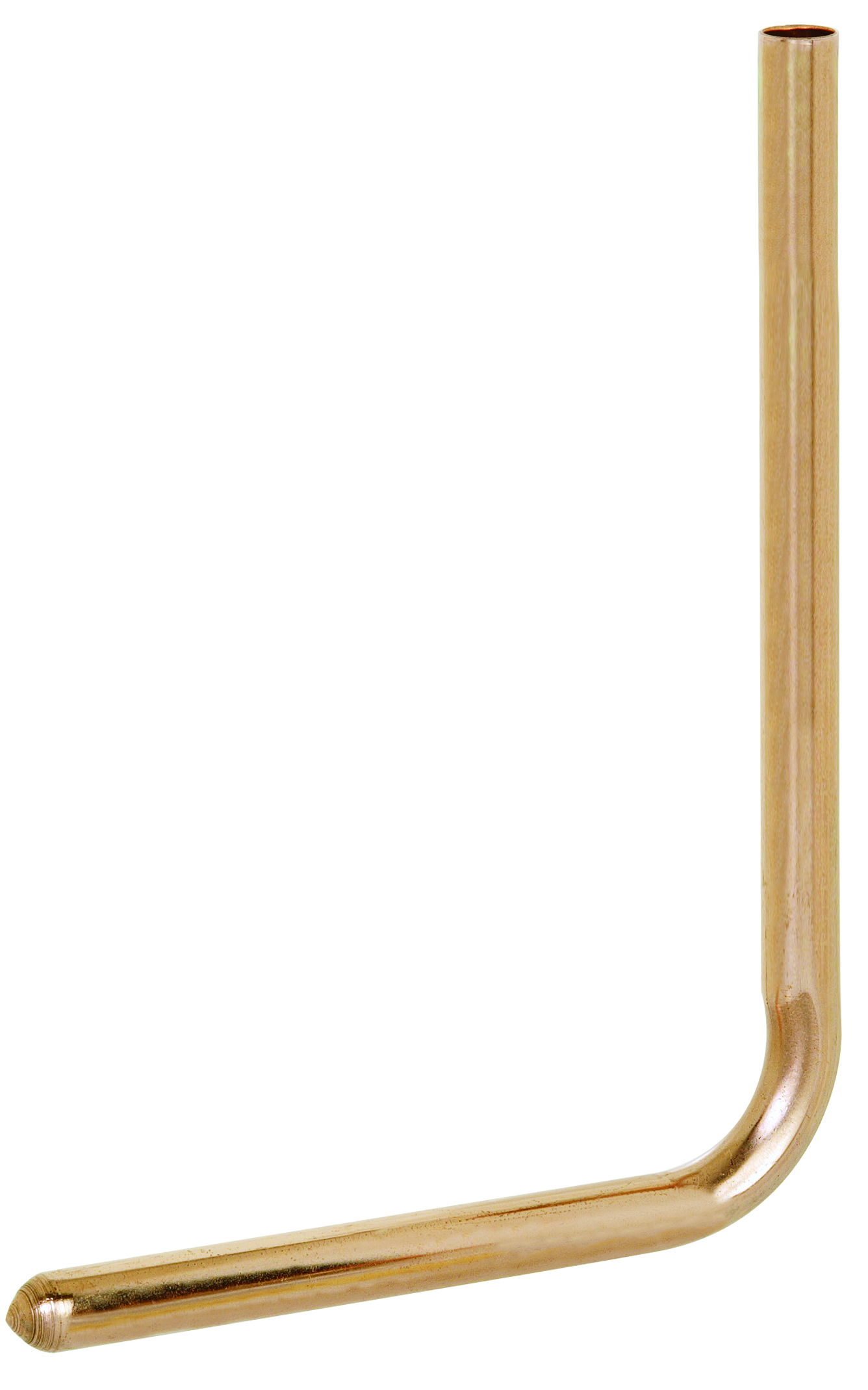

Sioux Chief 613-139 Tub Spout Elbow 13 X 9.5 in

Product Description

The SIOUX CHIEF 613-139 is a rough-in-rough tub spout elbow designed for bathtub rough-in plumbing applications. This male-sweat fitting provides the angled transition needed to properly position a tub spout supply stub-out from the wall framing. With a 13-inch by 9.5-inch rough-in dimension, it accommodates standard framing offsets encountered in residential tub installations. Licensed plumbers and trim-out crews rely on this fitting during new construction and remodel work where precise spout positioning is required.

This elbow is used in residential bathtub rough-in applications where the supply line must be routed and positioned at the correct horizontal and vertical offset for the finished tub spout. It is suited for new construction framing and remodel projects where wall cavity dimensions call for a 13-inch by 9.5-inch rough-in configuration. The fitting is installed during the rough-in phase before wall finish materials are applied.

Key Features

• Rough-in-rough elbow configuration for accurate tub spout stub-out positioning
• 13-inch by 9.5-inch rough-in dimensions suit standard residential framing offsets
• Male-sweat (MS) end connection for soldered copper supply line attachment
• Designed for installation during the rough-in phase prior to wall finish

Compatibility

Designed as an OEM-style rough-in fitting for residential bathtub spout supply installations requiring a 13-inch by 9.5-inch rough-in-rough elbow configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before soldering or making any connections. Use appropriate flux and solder rated for potable water systems when making sweat connections. Inspect the joint for leaks before closing the wall cavity.

Technical Specifications

• Rough-In Dimension: 13 x 9.5 inches
• Connection Type: Male Sweat (MS)
• UPC: 739236401083

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 613-139
