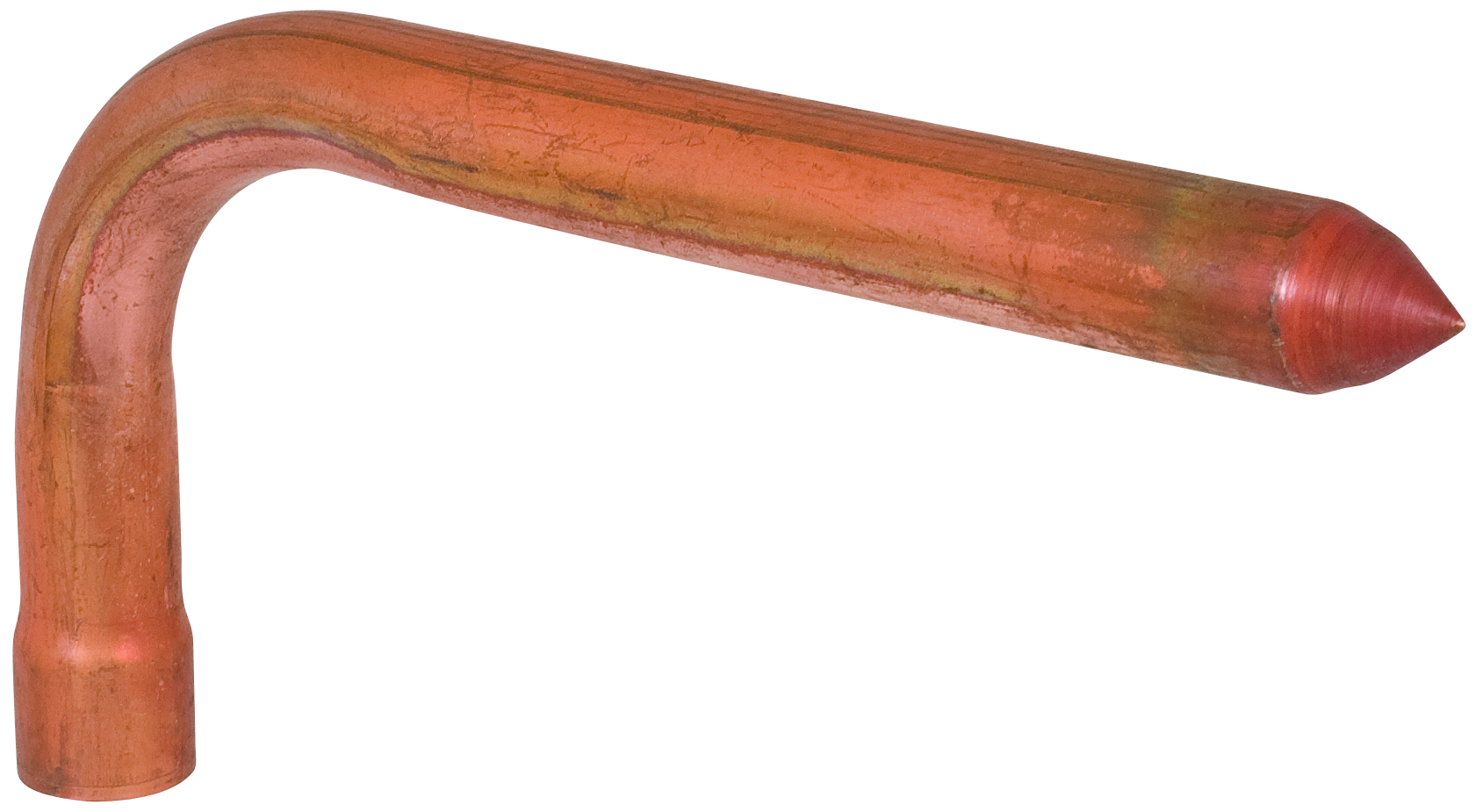

Sioux Chief 609-L4812 Copper Stub Out Elbow 1x8x12

Product Description

The SIOUX CHIEF 609-L4812 is a copper sweat ring-in-ring stub out elbow used in residential and light commercial plumbing rough-in applications. This fitting accepts a 1-inch copper connection and provides an 8-inch horizontal stub and a 12-inch vertical leg, giving installers precise positioning for fixture supply lines. The ring-in-ring (R-in-R) design allows the elbow to be secured directly to framing or blocking, keeping the stub out rigid and properly located behind drywall. Licensed plumbers and pipefitters install this fitting as part of the rough-in stage before wall close-up.

This stub out elbow is suited for residential bathroom, laundry, and utility rough-in work where a sweat-connected copper supply line must terminate at a fixed point in the wall framing. The 8-inch by 12-inch leg dimensions allow the fitting to span standard framing layouts and bracket directly to studs or blocking. It is used where a clean, supported stub out is required for a valve or fixture connection at finish stage.

Key Features

• Ring-in-ring bracket design for direct attachment to wall framing or blocking
• Copper sweat connections for reliable, soldered joints
• 1-inch connection size with 8-inch horizontal and 12-inch vertical legs
• Holds stub out position through drywall installation and finish work
• Compatible with standard copper sweat fittings and supply valves

Compatibility

Designed as an OEM-style rough-in fitting for residential copper plumbing systems using 1-inch sweat connections where a bracketed stub out elbow is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before soldering. The ring-in-ring bracket should be fastened securely to framing or backing before the wall is closed. Avoid applying excessive heat to adjacent framing members during the sweat process.

Technical Specifications

• Connection Size: 1 inch
• Horizontal Leg: 8 inches
• Vertical Leg: 12 inches
• Connection Type: Copper Sweat
• Configuration: Ring-In-Ring Stub Out Elbow
• UPC: 739236401014

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 609-L4812
