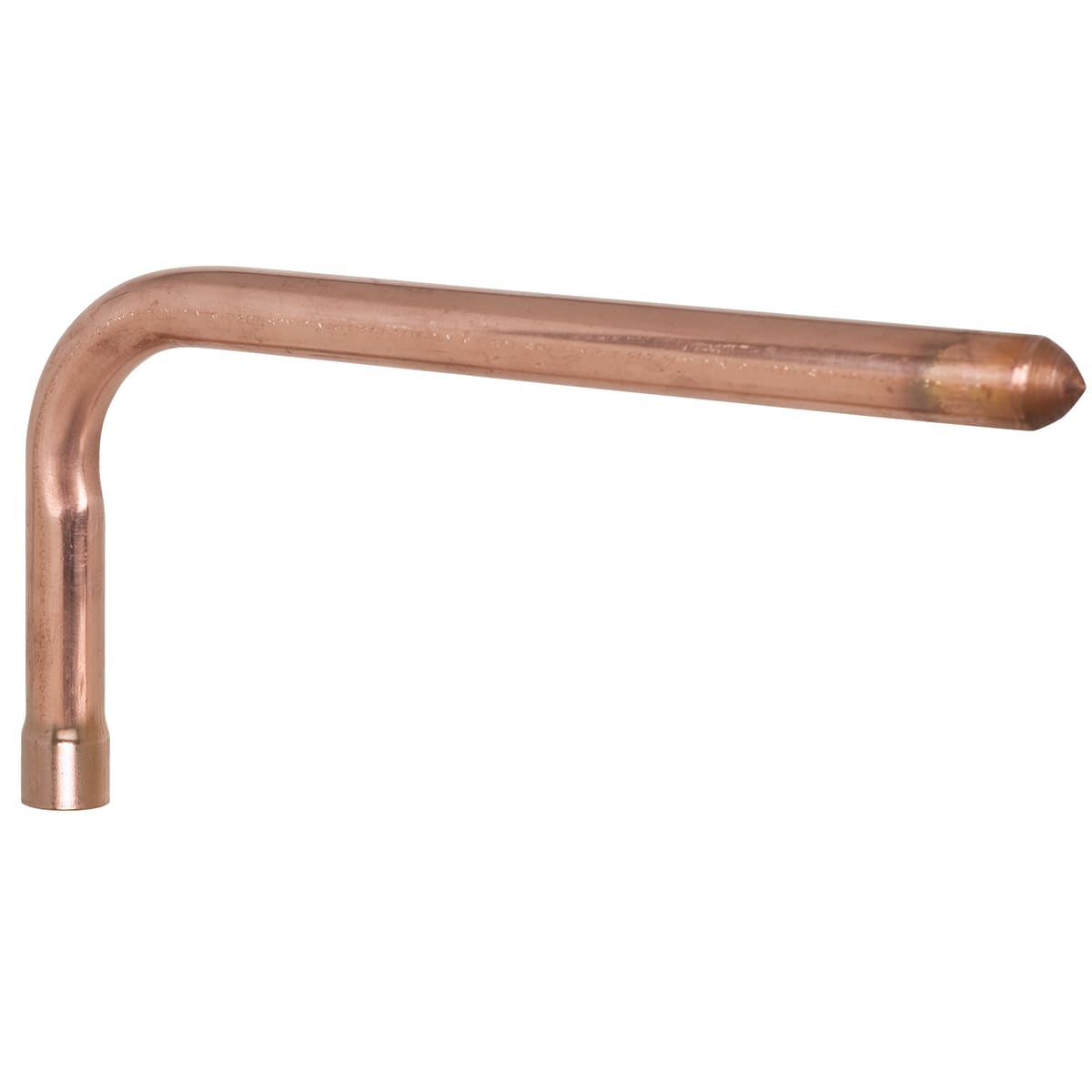

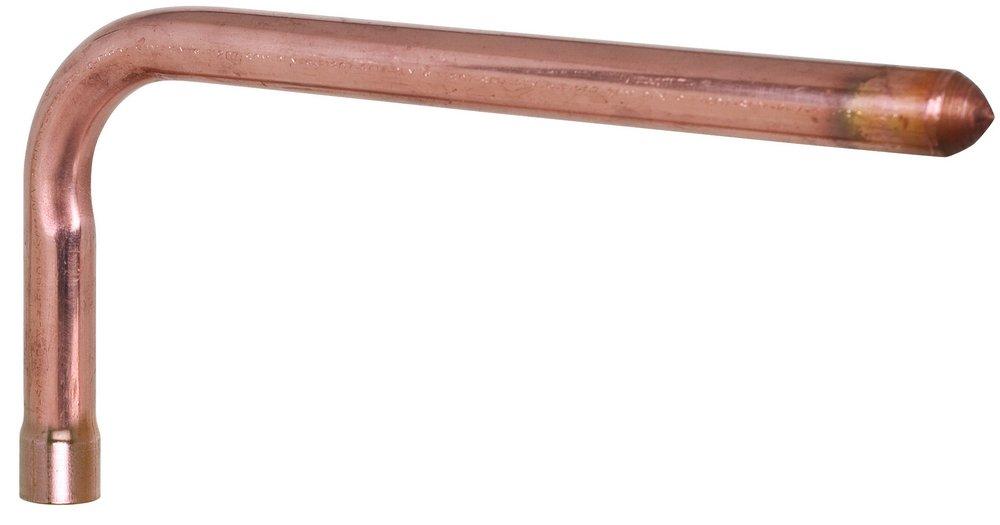

Sioux Chief 609-L248 Stub Out Elbow 1/2 inch, 3-1/2 inch x 8 inch x 1-1/4 inch

Product Description

The SIOUX CHIEF 609-L248 is a stub out elbow with square O strap and female sweat connection. This elbow fitting is full flow with no restrictions. It accepts sweat, push-fitting, and compression valves. It simplifies installation, saves costs and labor.

• Square O Strap is crimped onto tube for solid attachment to bracket or stud
• Full flow no restrictions
• Made from lead-free, 100% copper and approved for potable water use

Product Highlights

The SIOUX CHIEF Stub Out Elbow is a time-saving fitting with a one-piece solid body design. The spin closed outlet simplifies pressure testing.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 609-L248
• Country of Origin: USA

Technical Specifications

• Angle: 90
• Group: Pipe, Valves & Fittings
• Type 1: Stub-Out
• Vendor: Sioux Chief
• Category: Fittings
• Product UPC: 739236400888
• Model Number: 609-L248
• Product Type: Elbow
• Product Category: PVF
• Manufacturer Name: SIOUX CHIEF
• Brand: SIOUX CHIEF
• MPN: 609-L248
• Material: Copper
• Size: 1/2 inch, 3-1/2 inch x 8 inch x 1-1/4 inch
• Type: Stub Out Elbow with Square O Strap, Female Sweat
• Connection Type: C|C
• Length (Inches): 8"
• Width (Inches): 3-1/2"
• Supply Connection: Female Sweat x Spin Closed
• Thread Type: Female Sweat
• Height (part w/ PEX outlet): 3.5"
• Stub-out length: 8"
• Inlet: 1/2" female sweat (accepts 1/2" copper pipe)
• Copper pipe size: 1/2"
• ANSI: ANSI B-16.22
• ASME: ASME B-16.22
• ASTM: ASTM B-88-03
• CSA Certified: CSA B-137.5
• Collection: Series 609
• End Connection 1: Female Sweat
• End Connection 2: Female Sweat
• End Connections: Female Sweat
• Fitting Size 1: 1/2
• Fitting Size 2: 1/2
• Fitting Sizes: 1/2 in
• Fitting Type: Elbow
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 8
• Material Type: Type L
• NSF: NSF-61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 2900 psig
• End Style: Female C x Female C
• Fitting / Connector Type: Elbow
• Material Construction: Lead-Free Wrot Copper
• Nominal Size: 1/2 in
• Dimensions: 3-1/2 in L x 8 in W
• Manufacturer: Sioux Chief
• Manufacturer #: 609-L248
• Series: 609
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: C
• Connection Type 2: C
• Pressure Rating: 2900 psi
• Additional Information: 3-1/2 in L Side A, 8 in L Side B, ASTM B88-03 Material Standard
