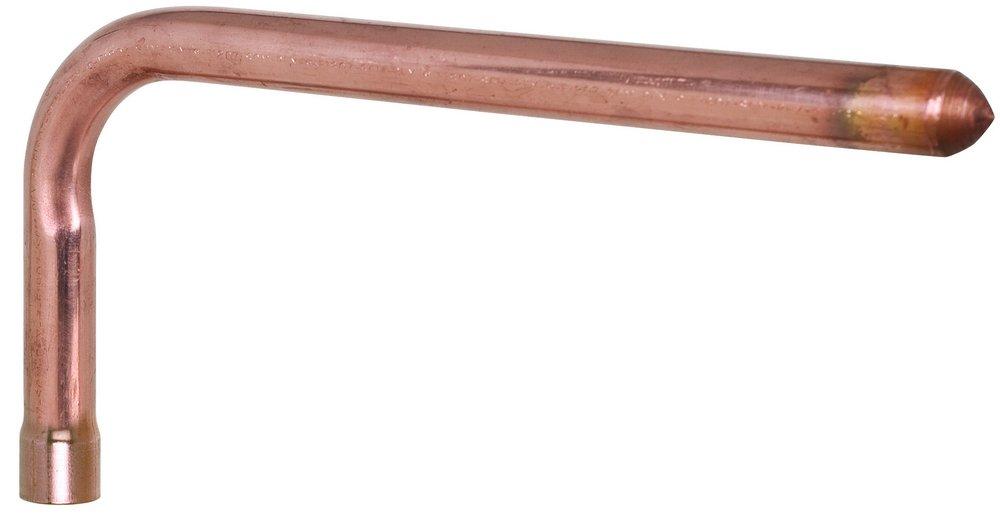

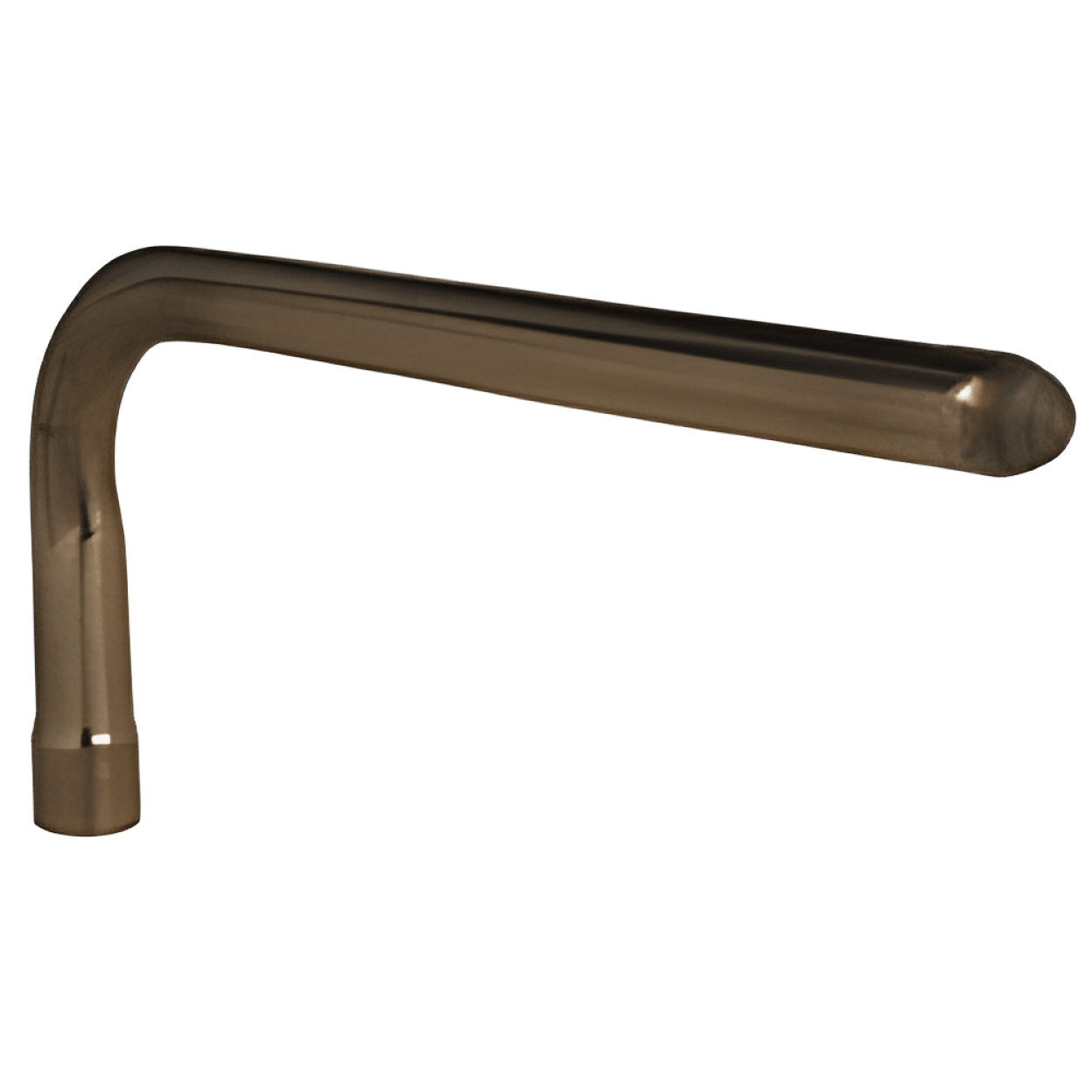

Sioux Chief 609-L246 Stub-Out Elbow, 90 Deg, 1/2 inch x 6 inch, Type L Copper

Product Description

The Sioux Chief 609-L246 is a stub-out elbow fitting designed for use in plumbing applications. This fitting features a female sweat connection and is made from type L copper material. It measures one half inch in nominal size and has dimensions of three and a half inches by six inches. It serves as a time-saving solution by combining a cap and elbow into one full flow fitting.

• Constructed from type L copper
• Combines stub out, cap, and elbow in one fitting
• Accepts sweat, push fitting, and compression valves

Product Highlights

This fitting is designed for tight radius applications with no thinning of the tube wall. It allows for maximum flow with no restrictions, making it ideal for both new installations and repairs.

Product Information

Standard Information

• Manufacturer: Sioux Chief Manufacturing
• MPN: 609-L246

Technical Specifications

• Nominal Size: 1/2 inch
• End Style: Female C x Female C
• Material: Copper
• Dimensions: 3-1/2 inches x 6 inches
• Pressure Rating: 2900 psig
• Bend Radius: 1-1/4 inches
• Bend Angle: 90 degrees
