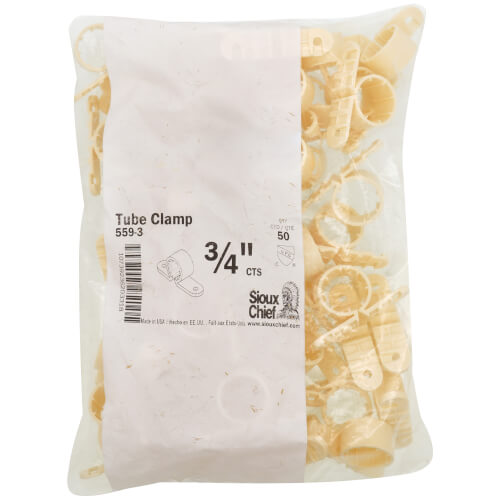

Sioux Chief 559-3 3/4 inch flat tube clamp box of 50

Product Description

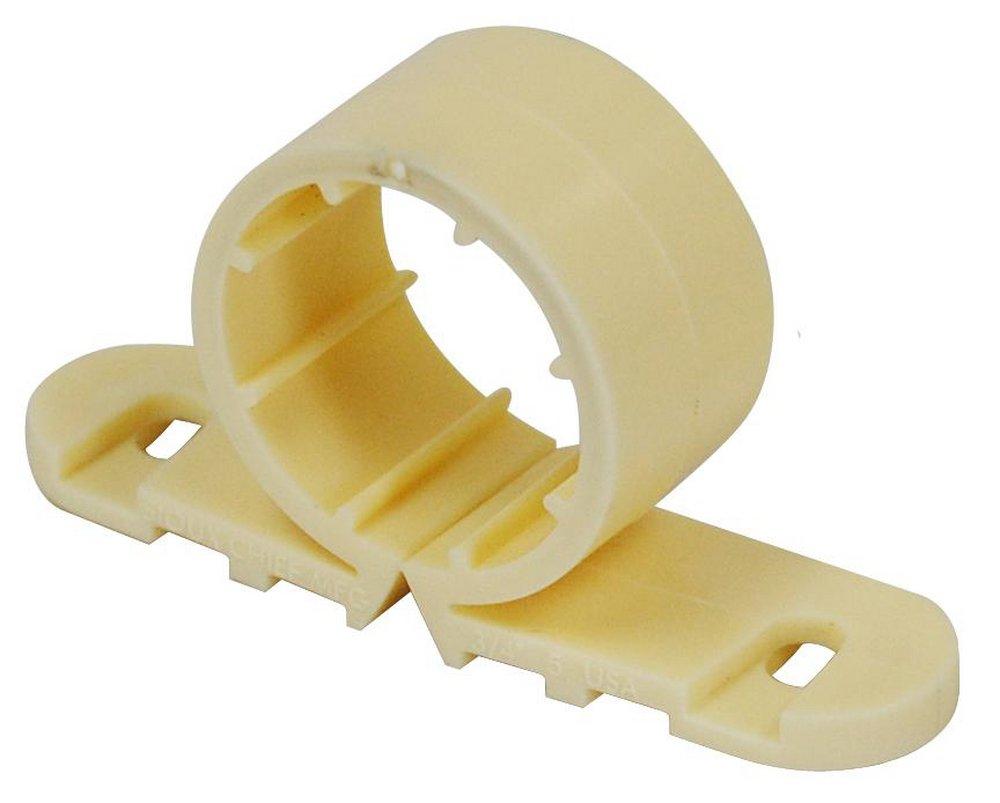

The Sioux Chief 559-3 is a 1-piece, 2-hole, split, ribbed tube clamp designed for 3/4 inch CTS pipe. Constructed from high impact polypropylene, it features a wall mount design with two screw/bolt holes. This clamp has a load rating of 25 pounds and a temperature rating of 140 degrees F. It is suitable for both commercial and residential applications, ensuring secure piping.

• Features a split, ribbed design for use after piping is run, allowing pipe to expand and contract.
• Suitable for both commercial and residential applications.
• Made in USA.

Product Highlights

Split, ribbed design for post-installation use, compatible with copper, PEX, or CPVC, and Plenum Safe models meet ASTM E84 25/50 flame/smoke spread.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 559-3
• Country of Origin: USA

Technical Specifications

• Style: Modern
• Material: High Impact Polypropylene
• Part Number: 559-3
• Applicable Standard: IAPMO, CUPC
• Load Rating: 25 lb
• Mounting Type: Wall Mount
• Number of Screw/Bolts: 2
• Pipe Size: 3/4 in CTS
• Temperature Rating: 140 °F
• Type: 1-Piece, 2-Hole, Split, Ribbed
• Hole Diameter: 0.188 in
• Mounting Hole Center Distance: 1.827 in
• Collection: EZ GLIDE
• Series: 559 Series
• Color: Ivory
• Domestic/Import: Domestic
