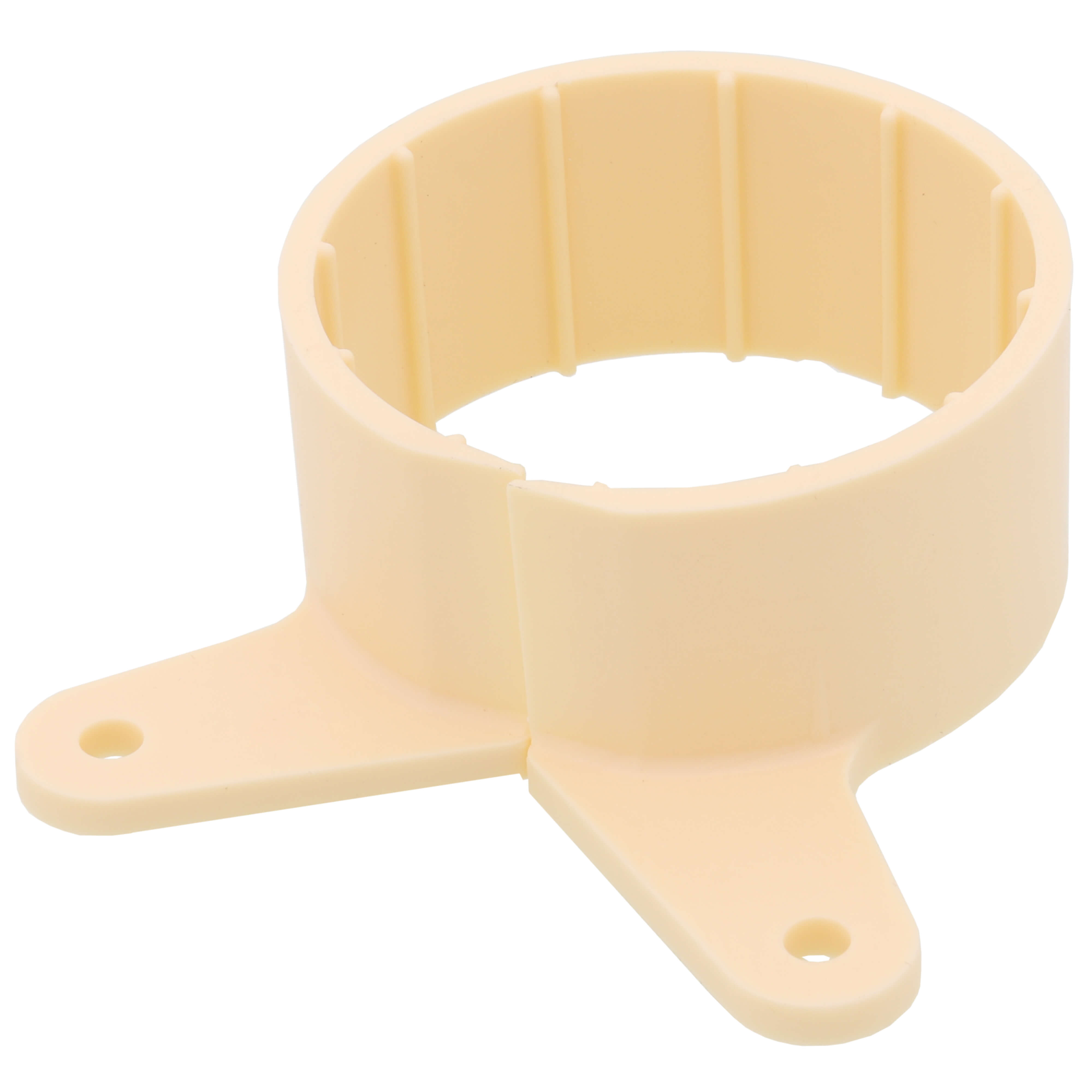

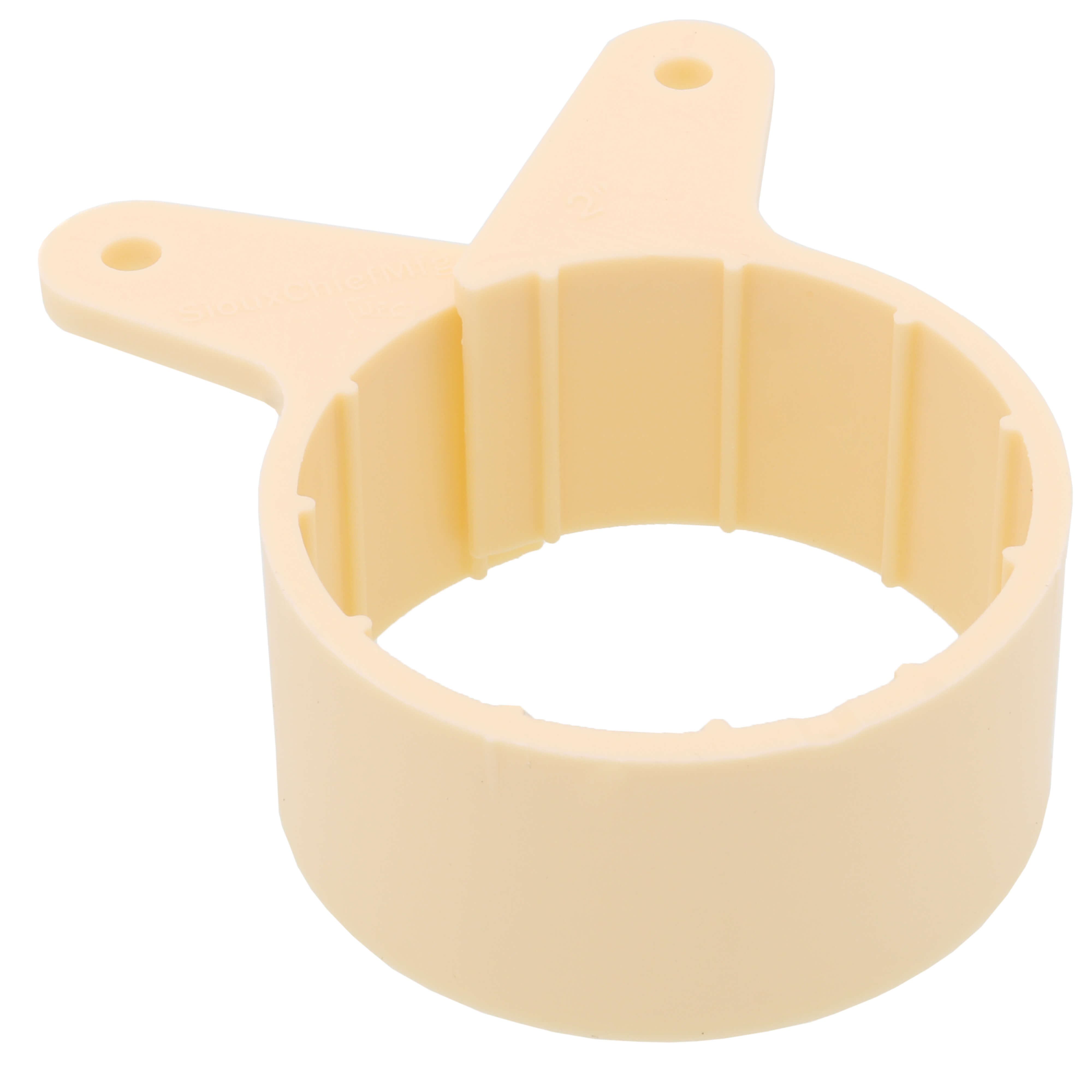

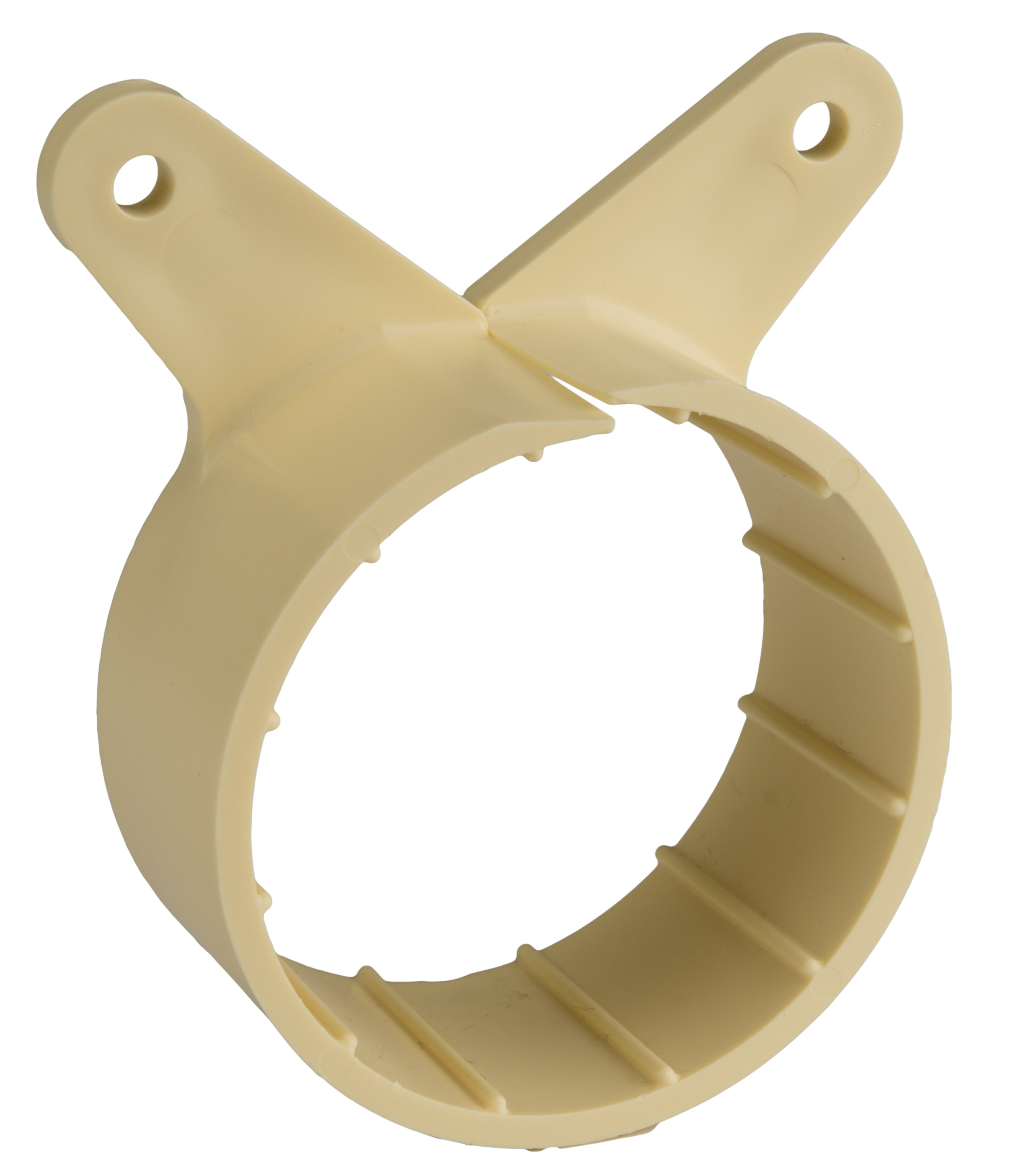

Sioux Chief 557-7 Suspension Clamp 2 Inch CTS

Product Description

The SIOUX CHIEF 557-7 tube suspension clamp is designed to secure or suspend CTS piping in residential or commercial applications. The split, ribbed, V-shape design allows for use after piping is run and to allow pipe to expand and contract. Compatible with CTS copper, PEX, and CPVC tube.

• Ribs allow pipe to glide easier and more silently when the pipe expands and contracts
• V-shaped split design for easy installations
• Made of high impact polypropylene

Product Highlights

Split design allows for use after piping run. Compatible with copper, PEX or CPVC. Ribbed design eliminates pipe noise from friction and thermal expansion.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 557-7
• Country of Origin: USA

Technical Specifications

• Type: Split, Ribbed, V-Shape
• Pipe Size: 2 Inch CTS
• Clamp Material: High Impact Polypropylene
• Width: 1.125 Inch
• Thickness: 0.15 Inch
• Mounting Type: Wall Mount
• Number of Screw/Bolts: 2
• Finish: Ivory
• Load Rating: 25 Pound
• Temperature Rating: 140 Deg F
• Applicable Standard: IAPMO, CUPC
• Hole Diameter: 0.188 Inch
• Mounting Hole Center Distance: 2.436 Inch
• Used On: CTS Copper, PEX, CPVC Tube
• Application: Residential, Commercial
• Brand: Sioux Chief
