Sioux Chief 557-6 suspension clamp 1-1/2 inch CTS

Product Description

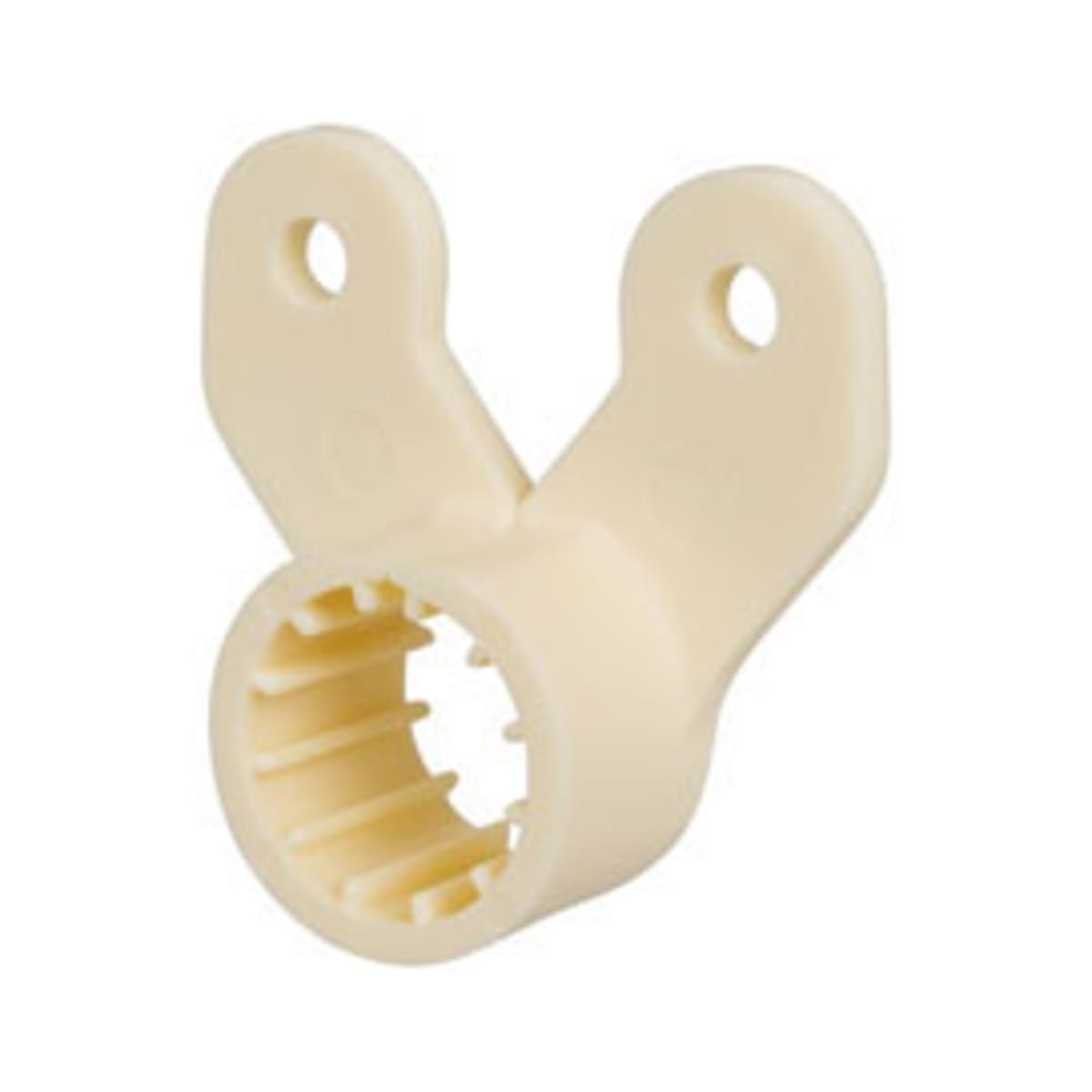

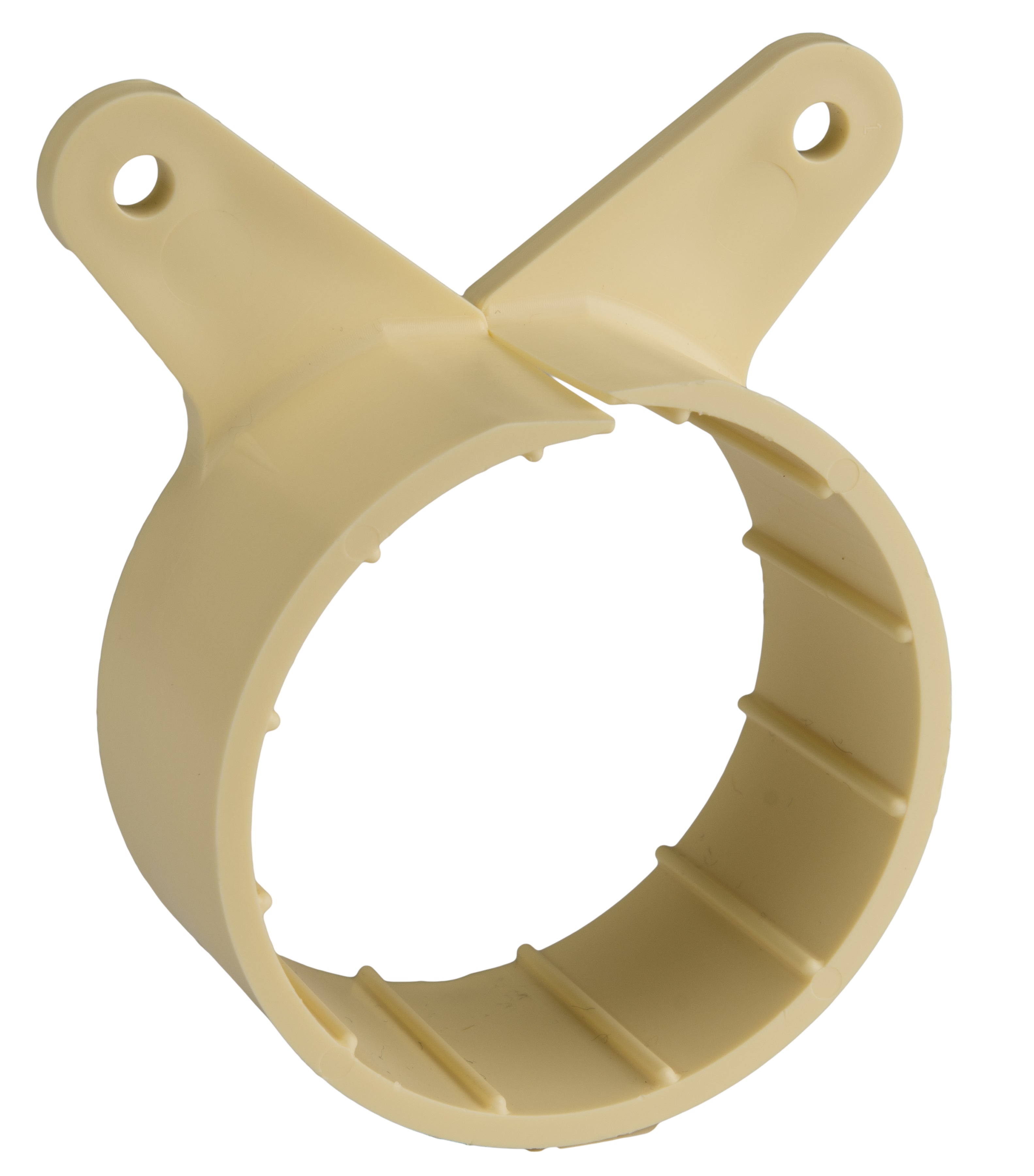

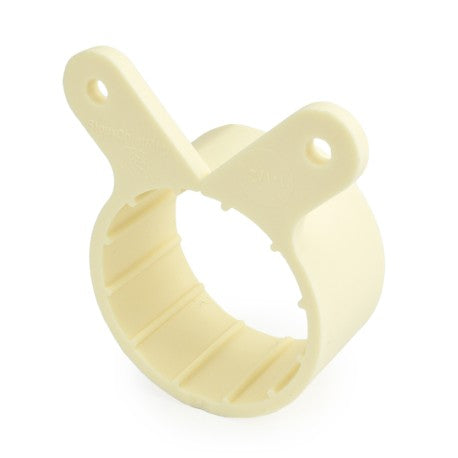

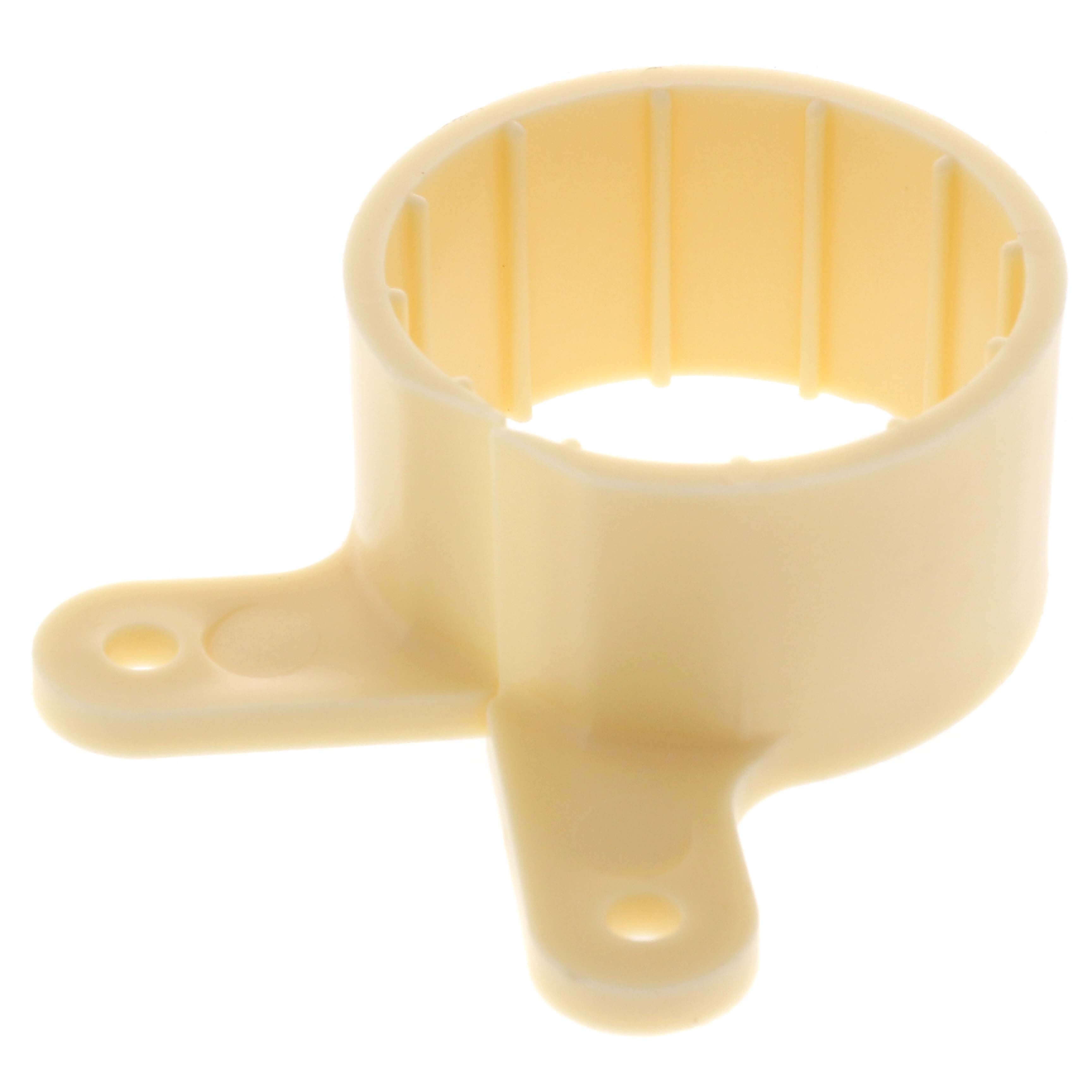

The Sioux Chief 557-6 tube suspension clamp features a split, ribbed, V-shape design for easy installation. Constructed from high-impact polypropylene, it supports 1-1/2 inch CTS copper, PEX, and CPVC tubing. This clamp is suitable for residential and commercial applications, with a load rating of 25 pounds and a temperature rating of 140 degrees Fahrenheit.

• Ribs allow pipe to glide easier and more silently when the pipe expands and contracts
• V-shaped split design for easy installations
• Compatible with copper, PEX or CPVC

Product Highlights

Split, ribbed design allows for use after piping is run and to allow pipe to expand and contract.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 557-6
• Country of Origin: USA

Technical Specifications

• Applicable Standard: IAPMO, CUPC
• Clamp Material: High Impact Polypropylene
• Mounting Type: Wall Mount
• Number Of Screw/Bolts: 2
• Pipe Size: 1-1/2 Inch CTS
• Temperature Rating: 140 Deg F
• Thickness: 0.15 Inch
• Type: Split, Ribbed, V-Shape
• Width: 1.025 Inch
• Load Rating: 25 Pound
• Hole Diameter: 0.188 Inch
• Mounting Hole Center Distance: 1.827 Inch
• Used On: CTS Copper, PEX, CPVC Tube
• Application: Residential, Commercial
