Sioux Chief 557-6 1-1/2 Suspension Clamp

Product Description

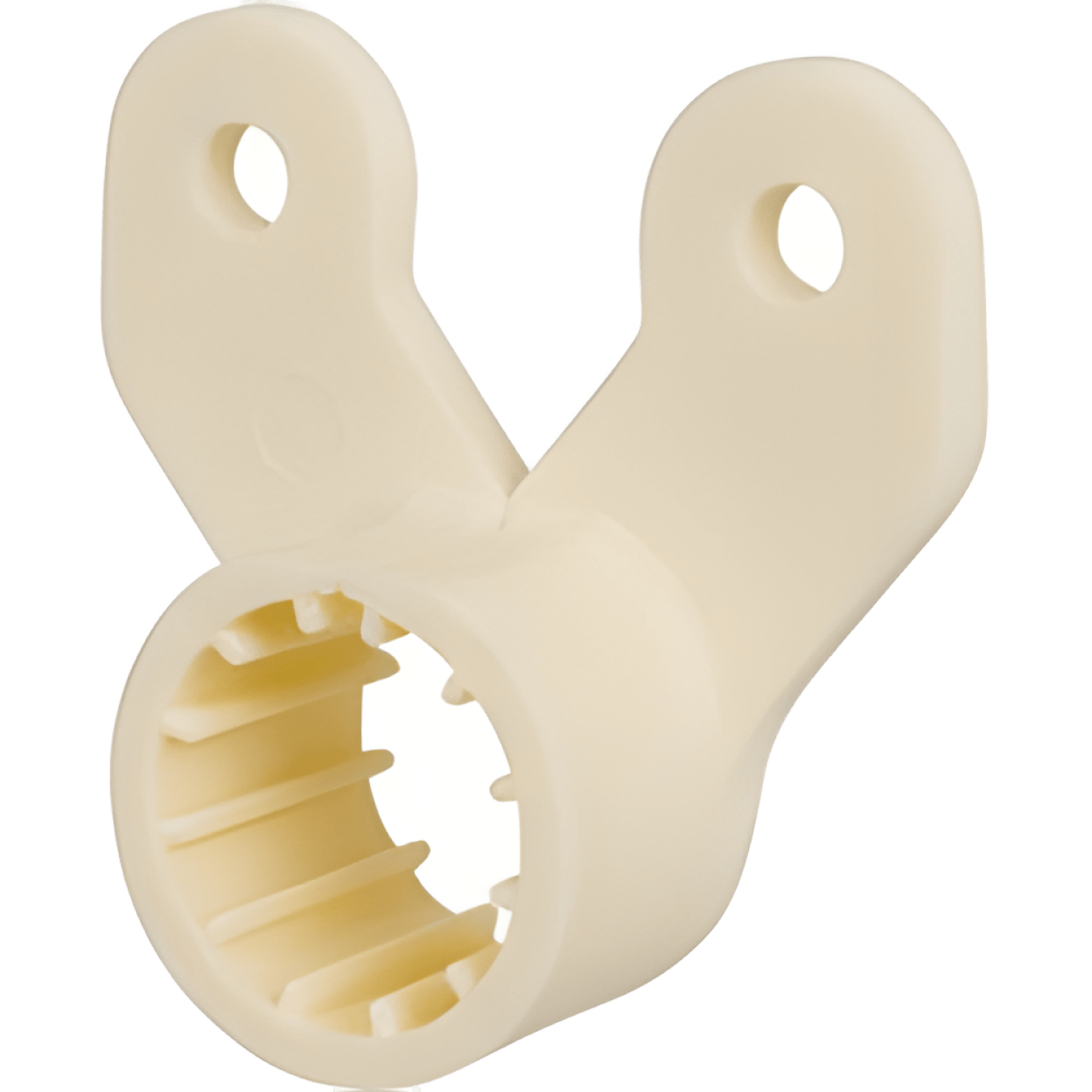

The Sioux Chief 557-6 is a 1-1/2 inch suspension clamp designed for effective pipe mounting. It features a split, ribbed, V-shape that allows for ease of installation and pipe expansion. This clamp is suitable for use with CTS copper, PEX, and CPVC tubes. The clamp is made from high impact polypropylene, which provides durability and longevity in various applications.

• Load rating of 25 pounds.
• Temperature rating of 140 degrees Fahrenheit.
• Includes two screws or bolts for secure mounting.

Product Highlights

This clamp provides effective support for piping systems in both residential and commercial settings. Its innovative design allows for quiet operation as pipes expand and contract during temperature changes.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 557-6

Technical Specifications

• Type: Split, Ribbed, V-Shape
• Pipe Size: 1-1/2 inch CTS
• Clamp Material: High Impact Polypropylene
• Width: 1.025 inches
• Thickness: 0.15 inches
• Load Rating: 25 pounds
• Temperature Rating: 140 degrees Fahrenheit
• Overall Dimension: 1.025 inches Depth x 2.639 inches Height
• Mounting Type: Wall Mount
• Number of Screws/Bolts: 2
• Applicable Standards: IAPMO, CUPC
