Sioux Chief 557-4 suspension clamp 1 inch CTS

Product Description

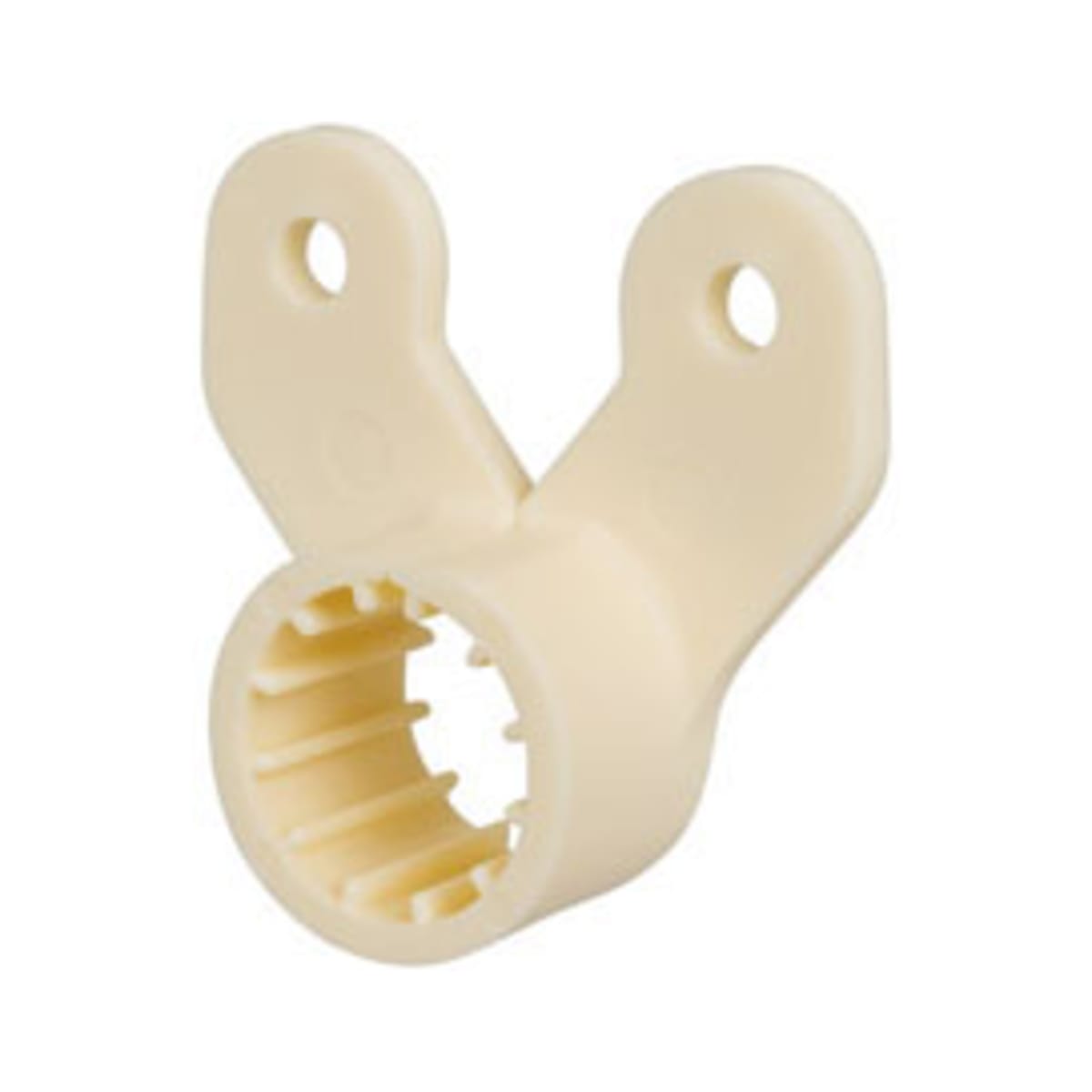

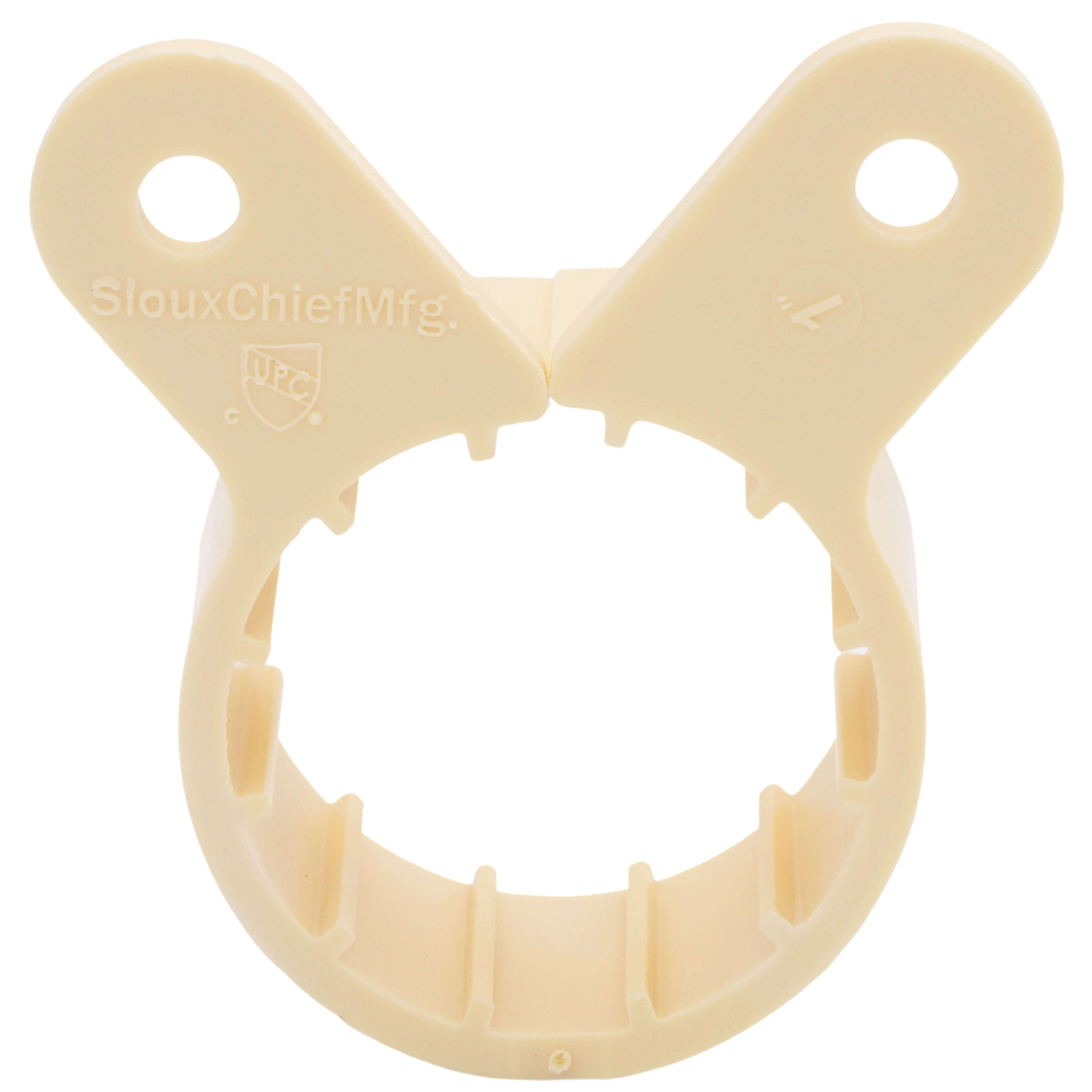

The Sioux Chief 557-4 suspension clamp is designed to secure or suspend CTS piping in residential and commercial applications. This 1-piece, 2-hole, split, ribbed clamp is made from high-impact polypropylene. It is compatible with copper, PEX, and CPVC tubing, allowing for pipe expansion and contraction.

• Split, ribbed design allows for use after piping is run
• Compatible with copper, PEX, and CPVC tube
• Suitable for residential and commercial applications

Product Highlights

This suspension pipe clamp is easy to install and provides secure support for various piping systems.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 557-4
• Country of Origin: US

Technical Specifications

• Type: 1-Piece, 2-Hole, Split, Ribbed
• Pipe Size: 1 Inch CTS
• Clamp Material: High Impact Polypropylene
• Thickness: 0.12 Inch
• Mounting Type: Wall Mount
• Number of Screw/Bolts: 2
• Load Rating: 25 Pound
• Temperature Rating: 140 Deg F (Continuous)
• Applicable Standard: IAPMO, CUPC
• Application: Residential, Commercial
• Brand: SIOUX CHIEF
• MPN: 557-4
• Hole Diameter: 0.188 Inch
• Mounting Hole Center Distance: 1.421 Inch
• Packaging Type: Bulk
• Tube Size: 1 in
• Material: Polypropylene
• Series: 557
• Load Capacity: 25 lb
• For pipe sizes: 1" CTS (1-1/8" OD) PEX, Copper or CPVC pipe
• Safe Working Load: 25 lbs
• Working Temperature: 0-140°F
