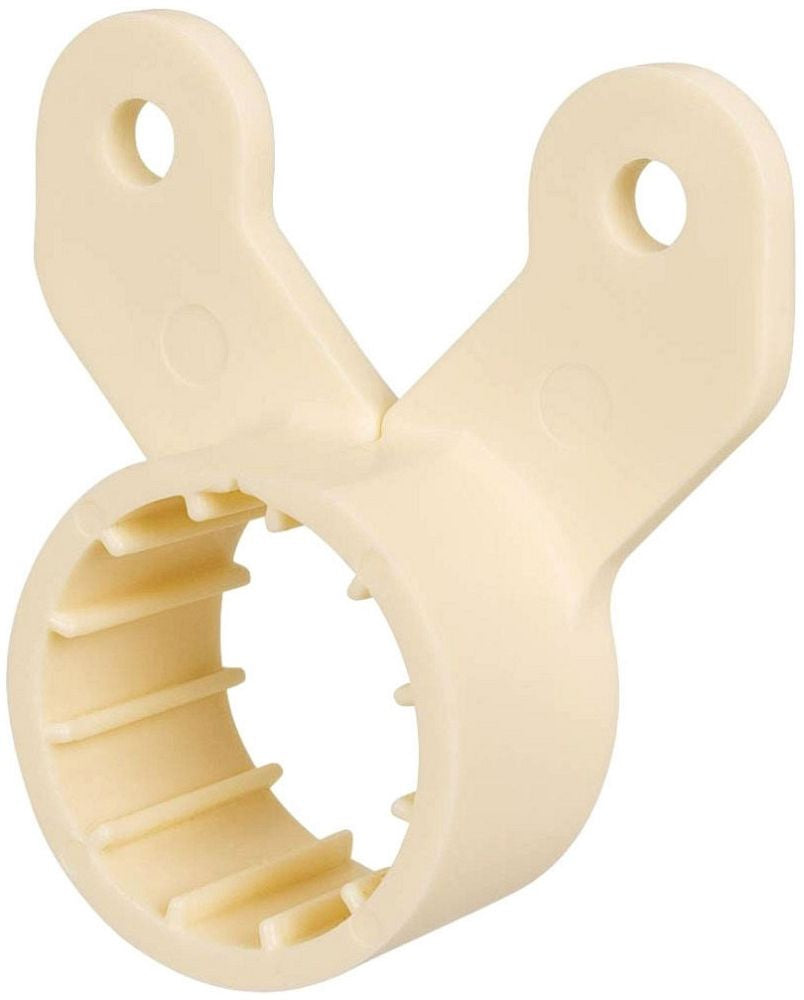

Sioux Chief 557-3 Suspension Clamp, 3/4 in Tube, 25 lb Load, Polypropylene

Product Description

Sioux Chief 557-3 is a suspension clamp designed for securing and supporting 3/4 inch CTS piping. This clamp is made from high impact polypropylene and provides a reliable solution for both residential and commercial applications. The clamp features a split design that allows for easy installation after piping has been installed, accommodating pipe movement due to expansion and contraction.

• Compatible with copper, PEX, and CPVC tubes.
• Rated for a load capacity of twenty-five pounds.
• Temperature rating of one hundred forty degrees Fahrenheit (continuous).

Product Highlights

This clamp offers excellent adaptability, ensuring pipes remain securely fastened while allowing for thermal expansion. It adheres to IAPMO and CUPC standards for compliance.

Product Information

Standard Information

• Brand: Sioux Chief
• Manufacturer Part Number: 557-3

Technical Specifications

• Clamp Type: 1-Piece, 2-Hole, Split, Ribbed
• Clamp Material: High Impact Polypropylene
• Color: Ivory
• Thickness: 0.12 inches
• Mounting Type: Wall Mount
• Number of Screws/Bolts: 2
• Load Rating: 25 pounds
• Temperature Rating: 140 degrees Fahrenheit (continuous)
• Overall Dimensions: 0.675 inches Depth x 1.998 inches Height
• Hole Diameter: 0.188 inches
• Mounting Hole Center Distance: 1.409 inches
• Packaging Type: Bulk
