Sioux Chief 557-2 Suspension Clamp, 1/2 CTS, Replacement MPN 557-2

Product Description

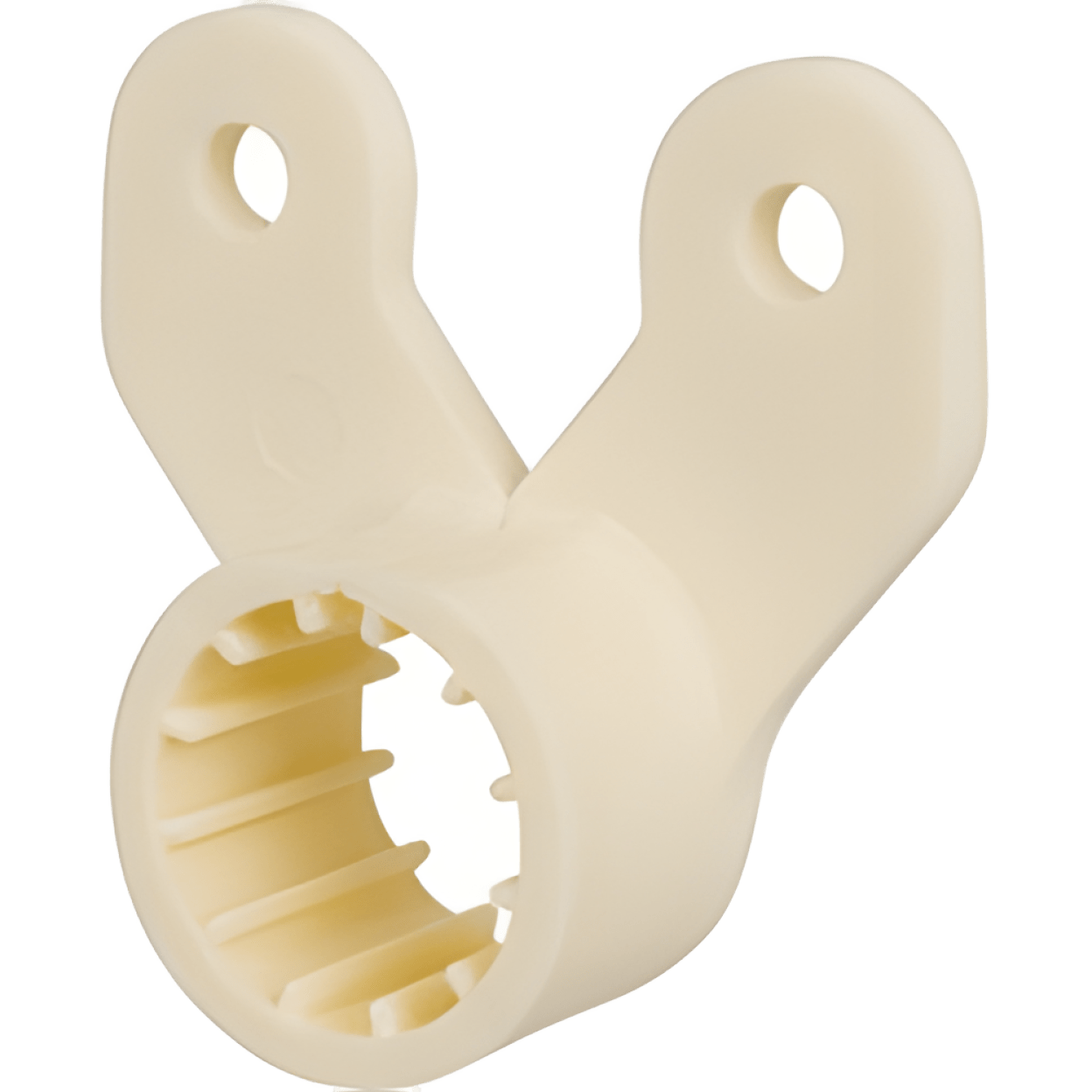

Sioux Chief Suspension Clamp 557-2 is designed for securing and suspending piping. This clamp is made of high impact polypropylene and it is suitable for 1/2 inch CTS (copper tube size). It features a ribbed design that allows for the pipe to glide during expansion and contraction. Installation is straightforward with two screws to secure the clamp to a wall.

• Compatible with copper, PEX, and CPVC tubes.
• Temperature rated up to 140 degrees Fahrenheit.
• Load capacity of 25 pounds.

Product Highlights

Use the Sioux Chief 557-2 for both residential and commercial applications. This pipe hanger allows for ease of installation thanks to its split design.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 557-2

Technical Specifications

• Type: 1-Piece, 2-Hole, Split, Ribbed
• Clamp Material: High Impact Polypropylene
• Thickness: 0.12 inch
• Finished Color: Ivory
• Overall Dimension: 1.703 inch height x 0.625 inch depth
• Hole Diameter: 0.188 inch
• Mounting Type: Wall Mount
• Number of Screws: 2
• Applicable Standards: IAPMO, CUPC
