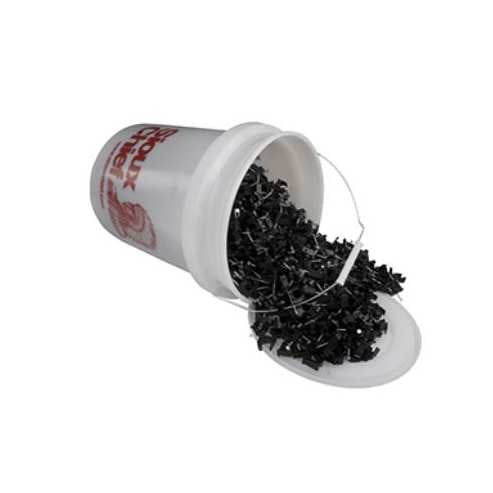

Sioux Chief 556-2BK PickUp Talon Nail Barb Clamp 1/2 inch 1600-piece Bucket

Product Description

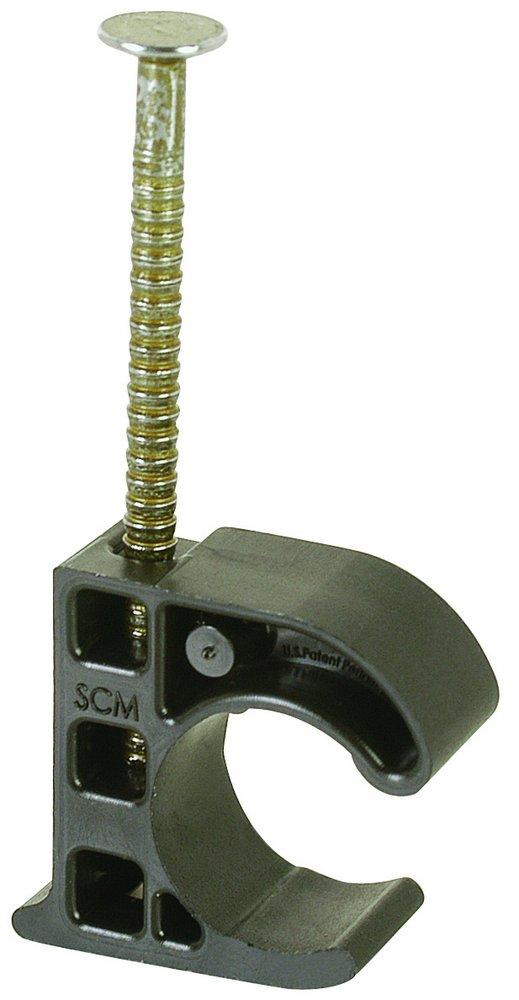

The SIOUX CHIEF 556-2BK PickUp Talon Nail Barb Clamp is a pipe fastener designed to secure 1/2 inch CTS copper, PEX, or CPVC tubing in piping systems. It features fast and easy installation, snapping onto the tube with preloaded nails or screws. This clamp helps keep tubing off mounting surfaces, reducing noise and protecting against abrasion. Made from HDPE, it is 100% corrosion-proof and UV resistant, with an operating temperature up to 160°F.

• Fast and easy installation; snaps onto tube with preloaded nails or screws.
• Compatible with copper, PEX, and CPVC tubing.
• Protects tube from abrasive mounting surfaces and helps eliminate ticking noises.

Product Highlights

Secures 1/2 inch CTS tubing, offering an isolating design that protects against abrasion and reduces noise.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 556-2BK
• Country of Origin: USA

Technical Specifications

• Brand: Sioux Chief
• MPN: 556-2BK
• Part Number: S5562BK
• Item Number: 3002455
• Product ID: 3002455
• Main Category: Hangers, Strut & Fasteners
• Sub Category 1: Brackets & Clamps
• Sub Category 2: Nail Barb Clamps
• Pipe Size: 1/2 in CTS
• Material: HDPE
• Product Type: Drive Hook
• Model Description: Bucket 1/2 Pickup Talon W/nail 1600
• Model Number: 556
• Finish: Zinc Coated (Nail), Zinc Plated (Screw)
• Load Rating: 12 Pound
• Application: Piping System
• Connection Type: CTS
• Includes: Nail
• Color: Black
• Compatible Tubing: Copper, PEX, CPVC
• Corrosion Proof: 100%
• UV Resistant: Yes
• Impact Resistance: To 0°F
• Operating Temperature: Up to 160°F
• Fastener Type: Preloaded nail or screw
• Nail/Screw Material: Rust resistant, zinc plated or stainless
• Nail Feature: Continuous rink shank
• Patent Number: 7,207,530
