Product Description

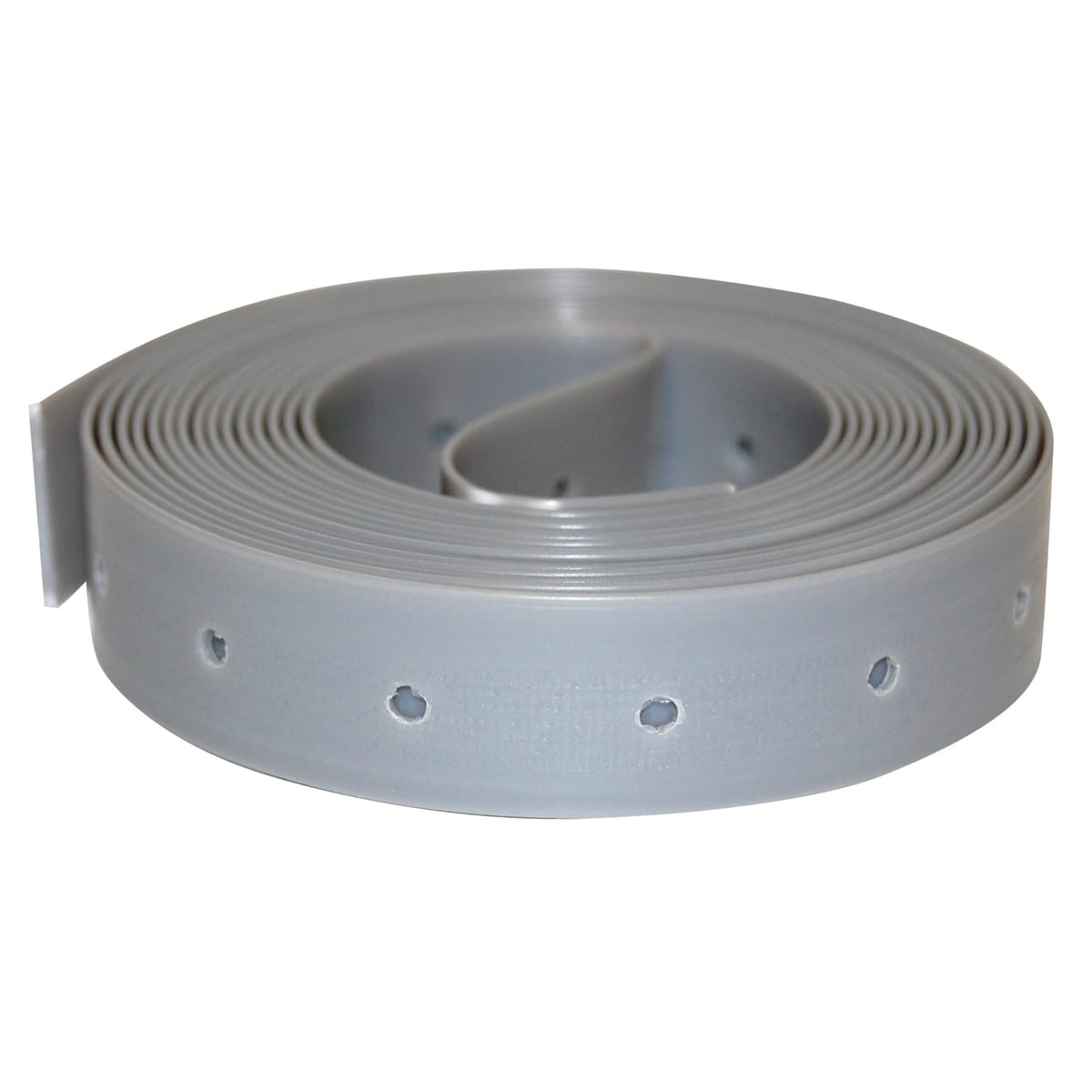

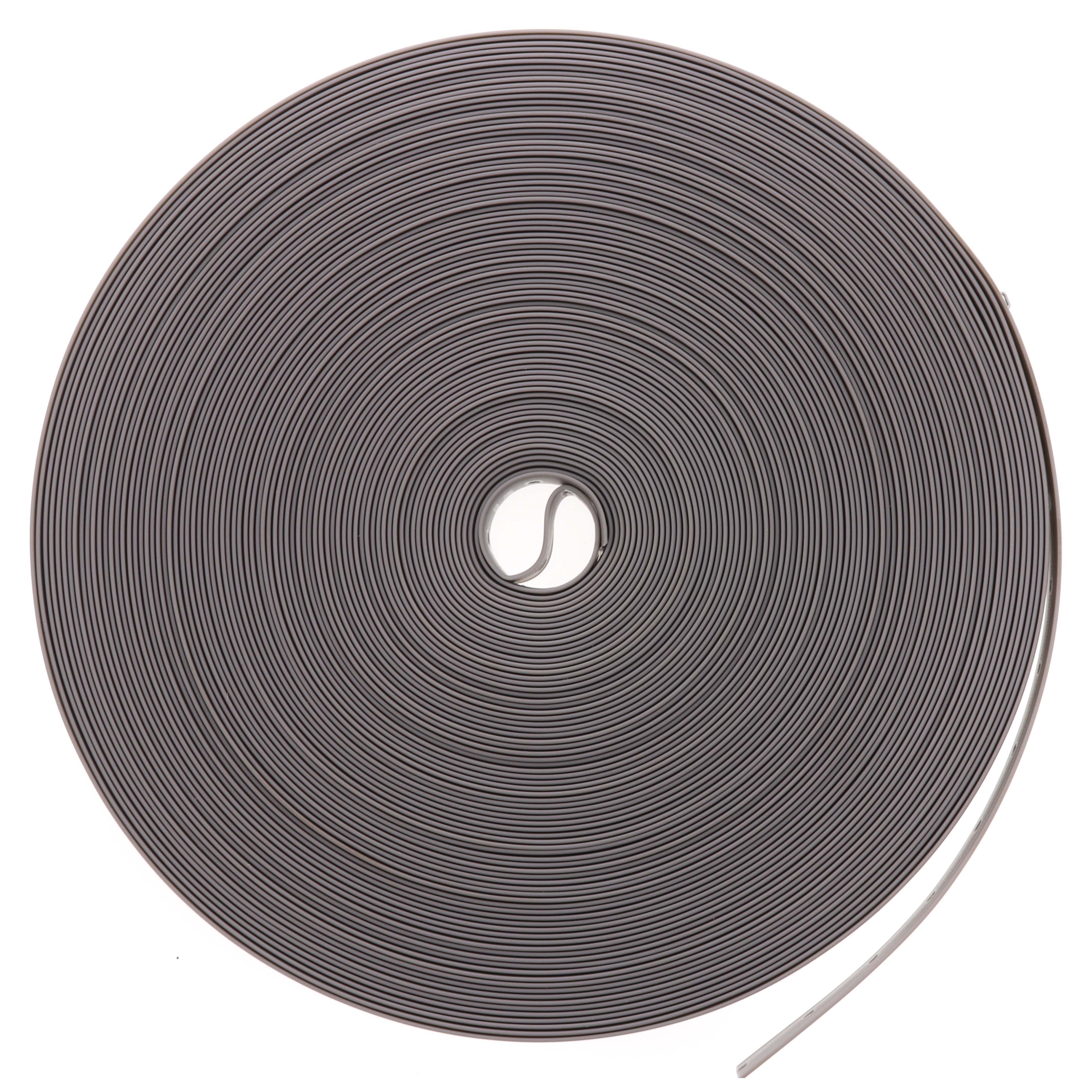

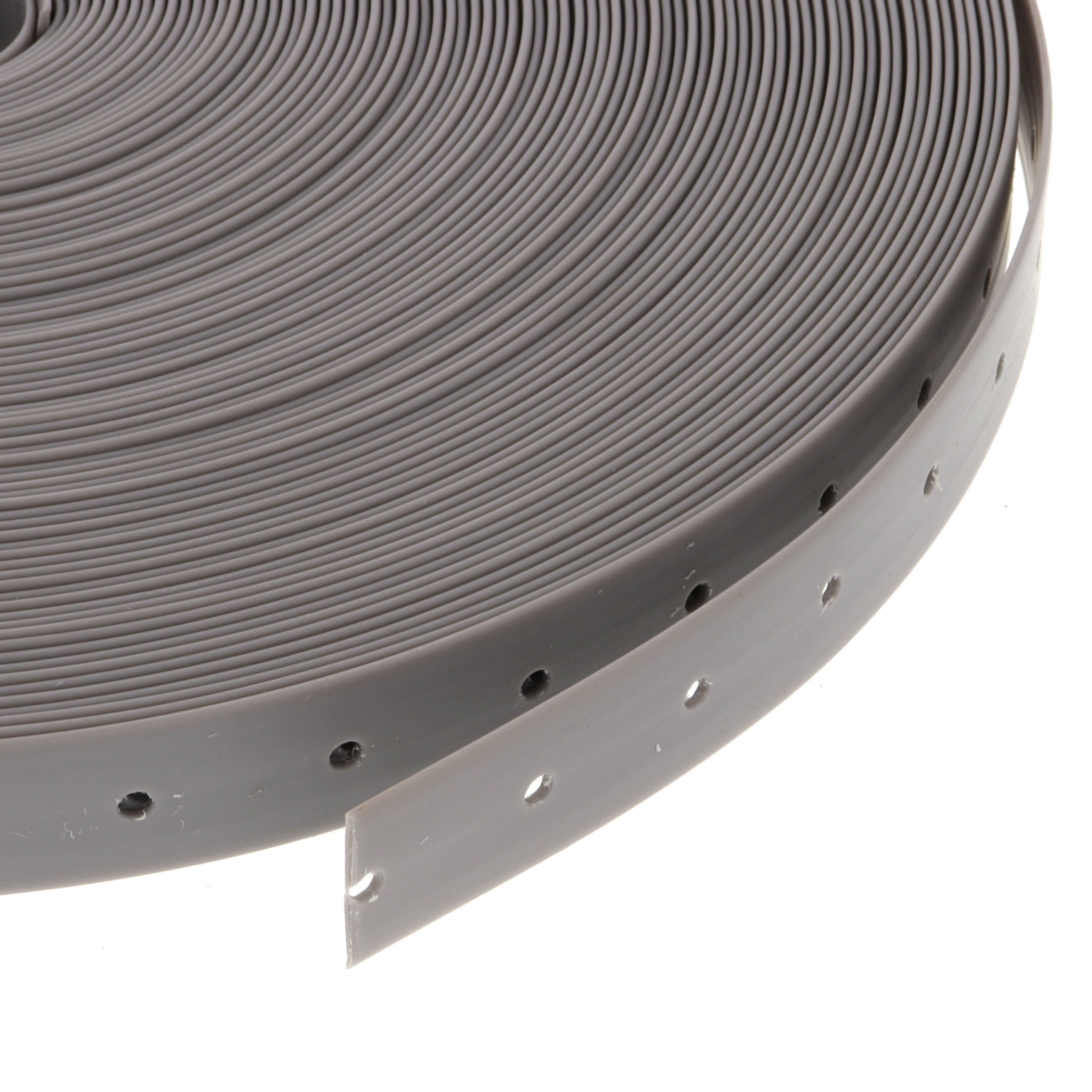

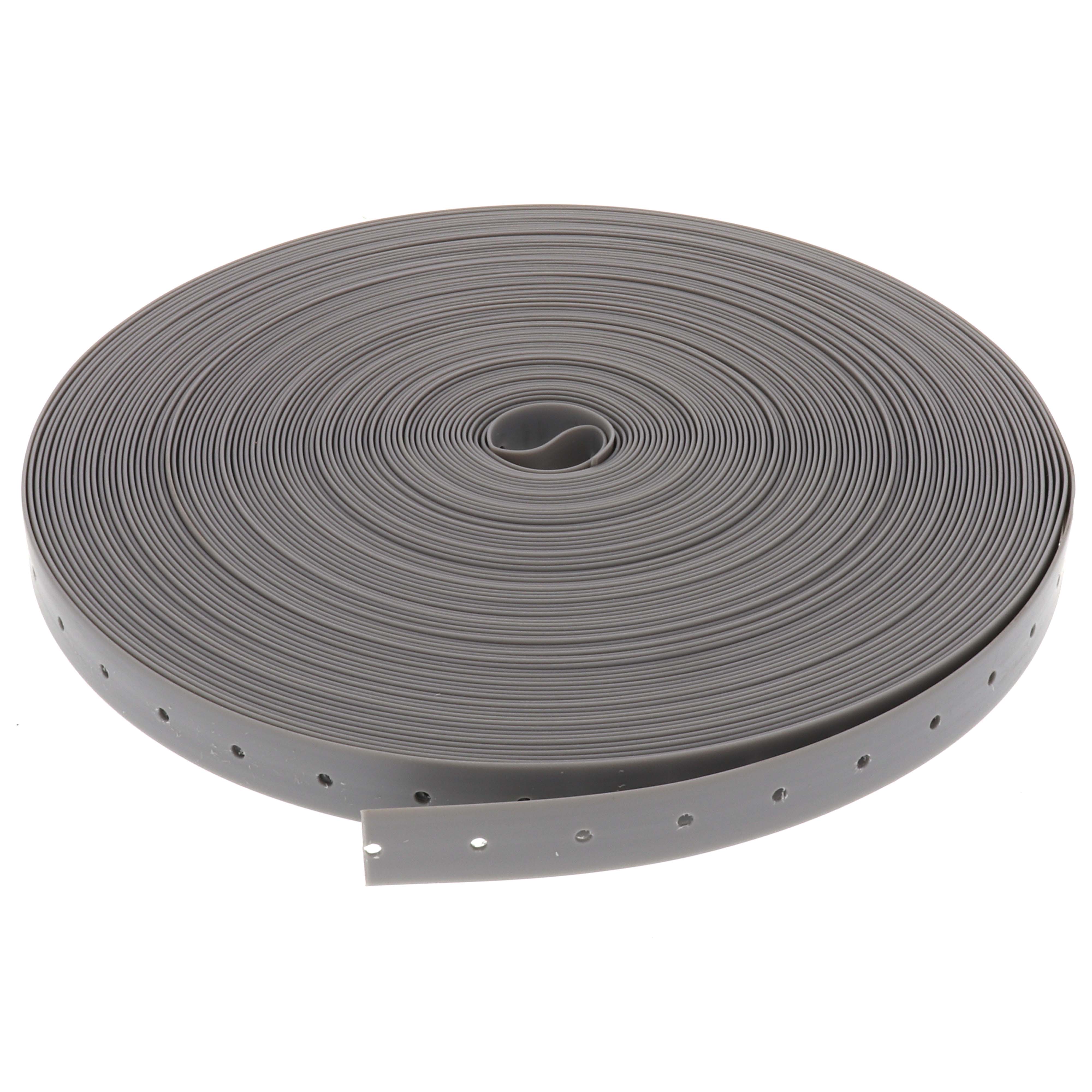

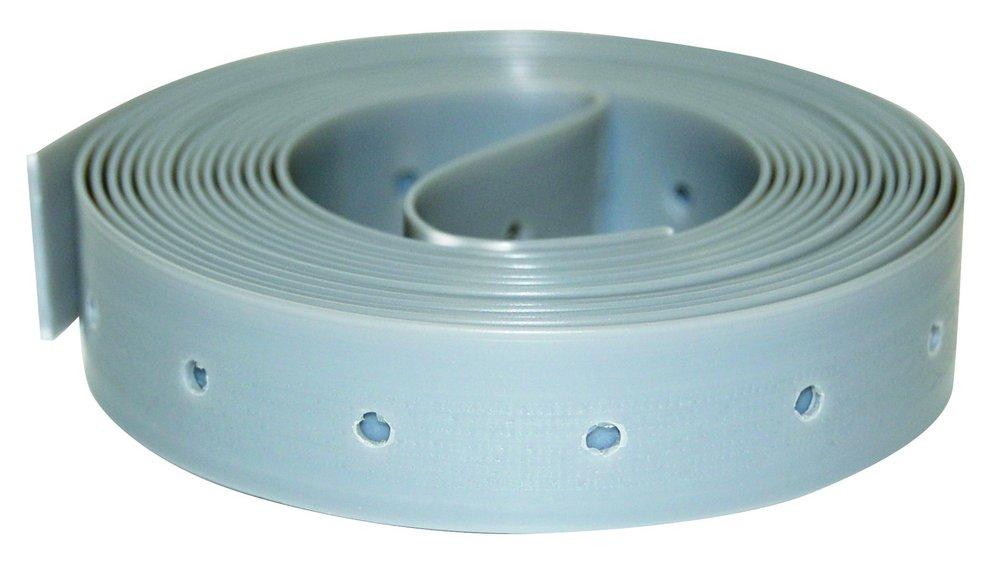

The SIOUX CHIEF 554-100 is a 3/4X100 FT polypropylene hanger strap with 1/8 holes. It is designed to support DWV pipe and should be installed according to national codes for hanger spacing and slope. This plastic hanger strap conforms to ASTM D-5857 standards. It is made in the USA.
- Features 1/8 inch diameter holes spaced 2-1/2 inch apart
- Used where necessary to support DWV pipe
- Installed in accordance with national codes pertaining to hanger spacing and slope requirements
Product Highlights
This hanger strap is ideal for supporting DWV pipe, featuring durable polypropylene construction and easy installation.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 554-100
-
Country of Origin: USA
Technical Specifications
-
Material: Polypropylene
-
Size: 3/4 in x 100 ft Coil
-
Length: 100 ft
-
Application: DWV pipe support
-
Hole Diameter: 1/8 in
-
Mfg Standards/Approvals: ASTM D5857
-
Series: 554
-
Width: 3/4 in
-
Country of Origin: US
-
Type: Straps
-
Description: 3/4 X 100ft Poly Hanger Strap 1/bag
-
Manufacturer: Sioux Chief
-
PDW MFR CAT: 554-100
-
Pittman #: 224845
-
Temperature Rating: 32 -120 deg F
-
Thickness: 3/4 in
-
Length (Feet): 100'
-
ASTM: ASTM D-5857
-
Residential: Residential
-
Collection: 554 Series
-
FM Approved: No
-
IAPMO Listed: No
-
NSF Certified: No
-
Product Type: Hanger Strap
-
UL Listed: No
-
Work Load Limit: 20
