Product Description

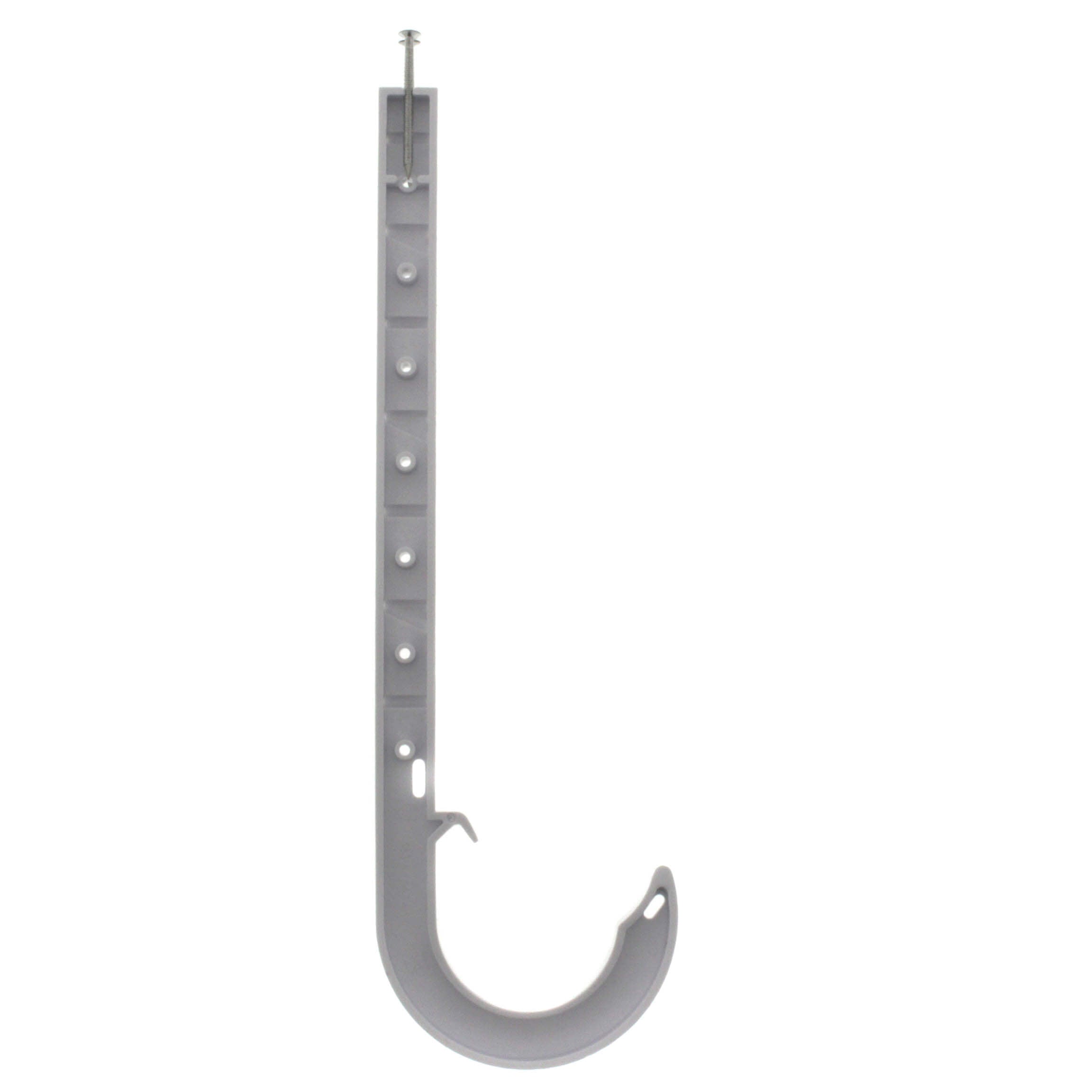

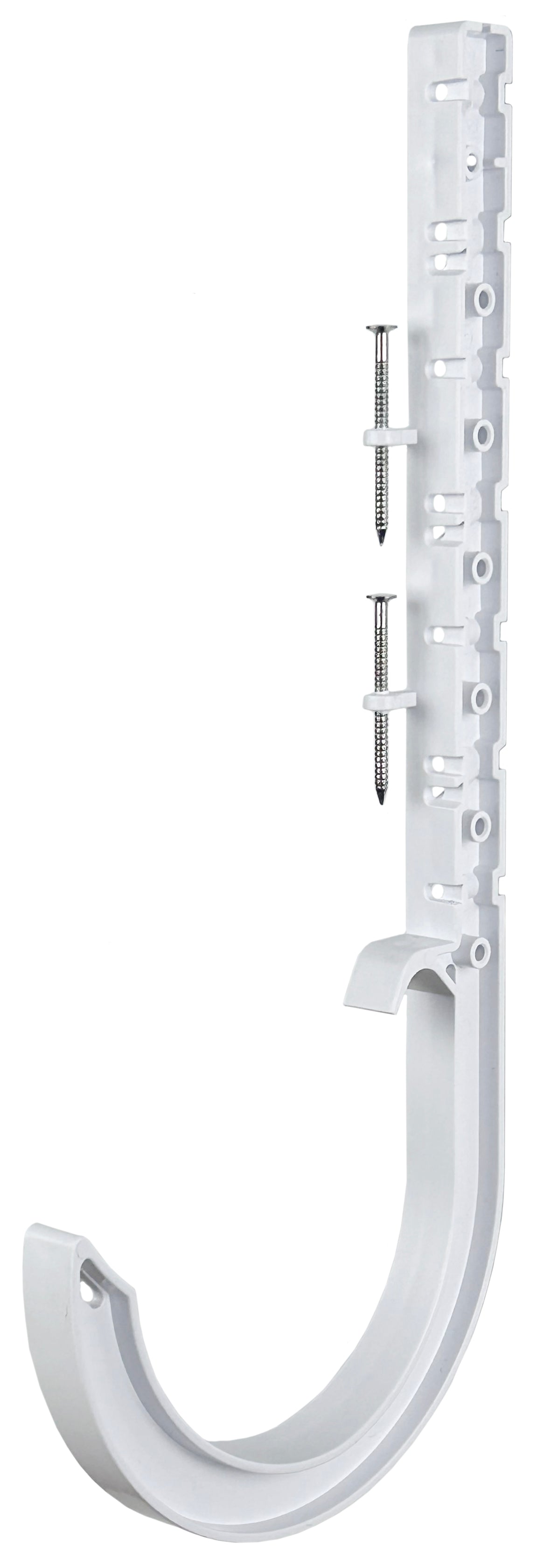

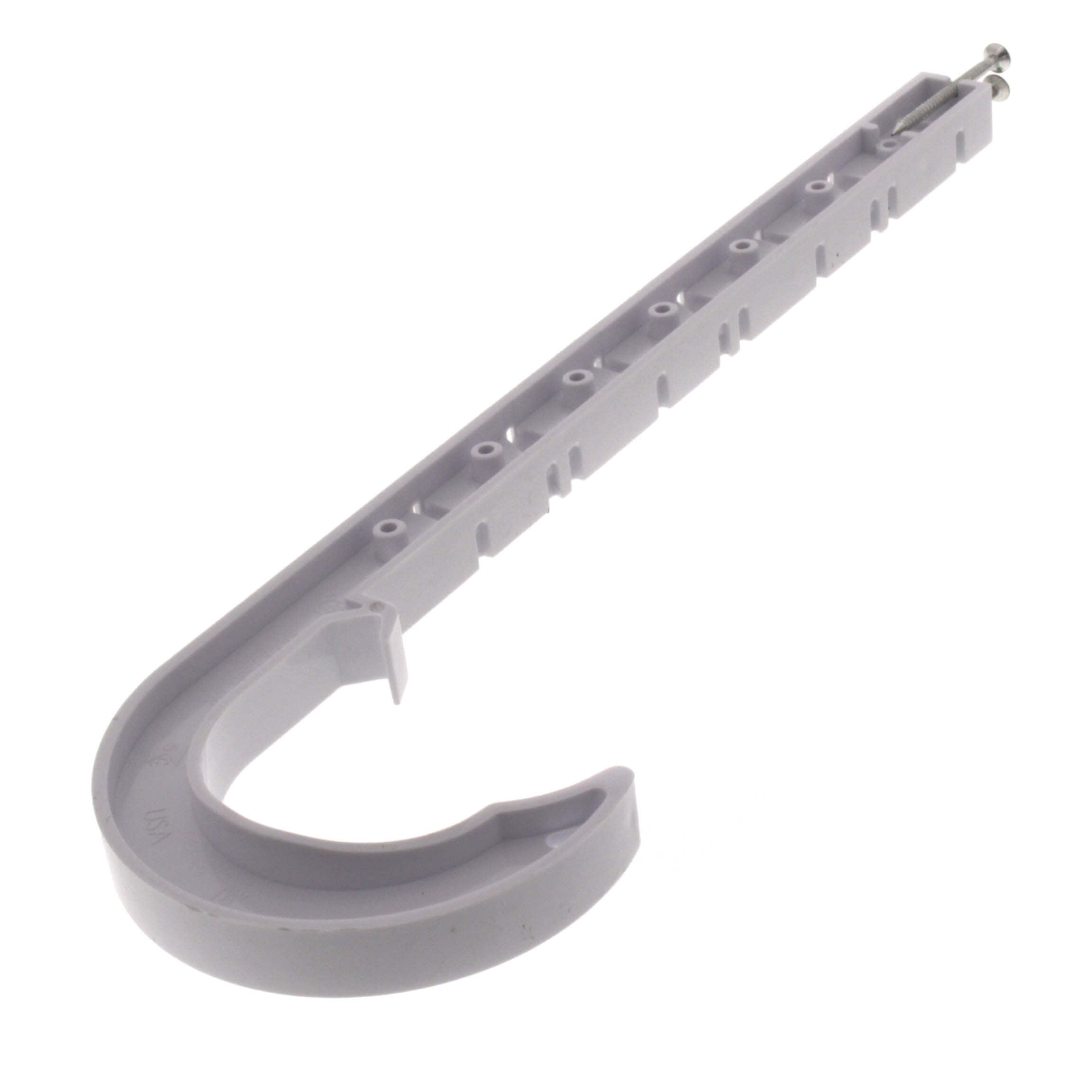

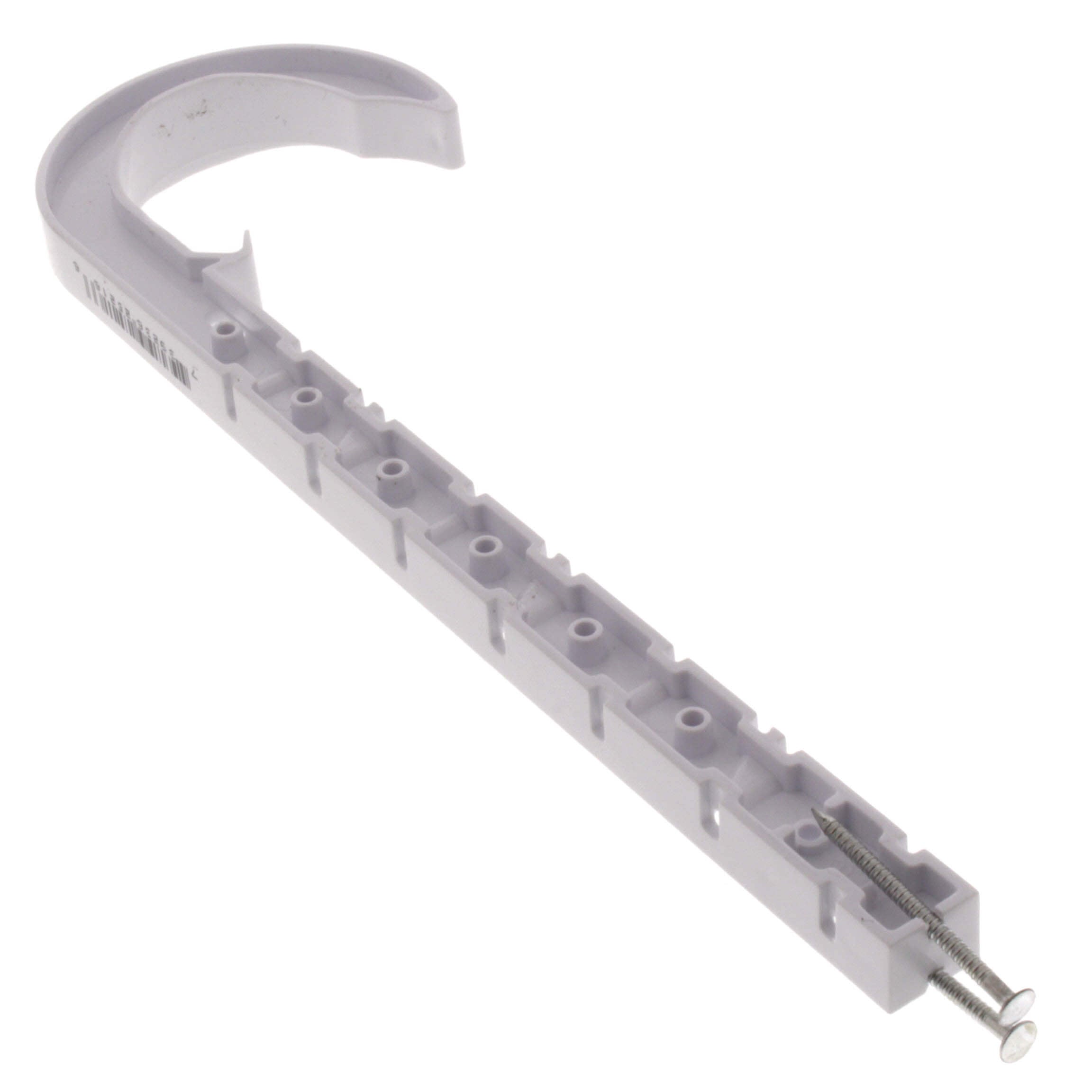

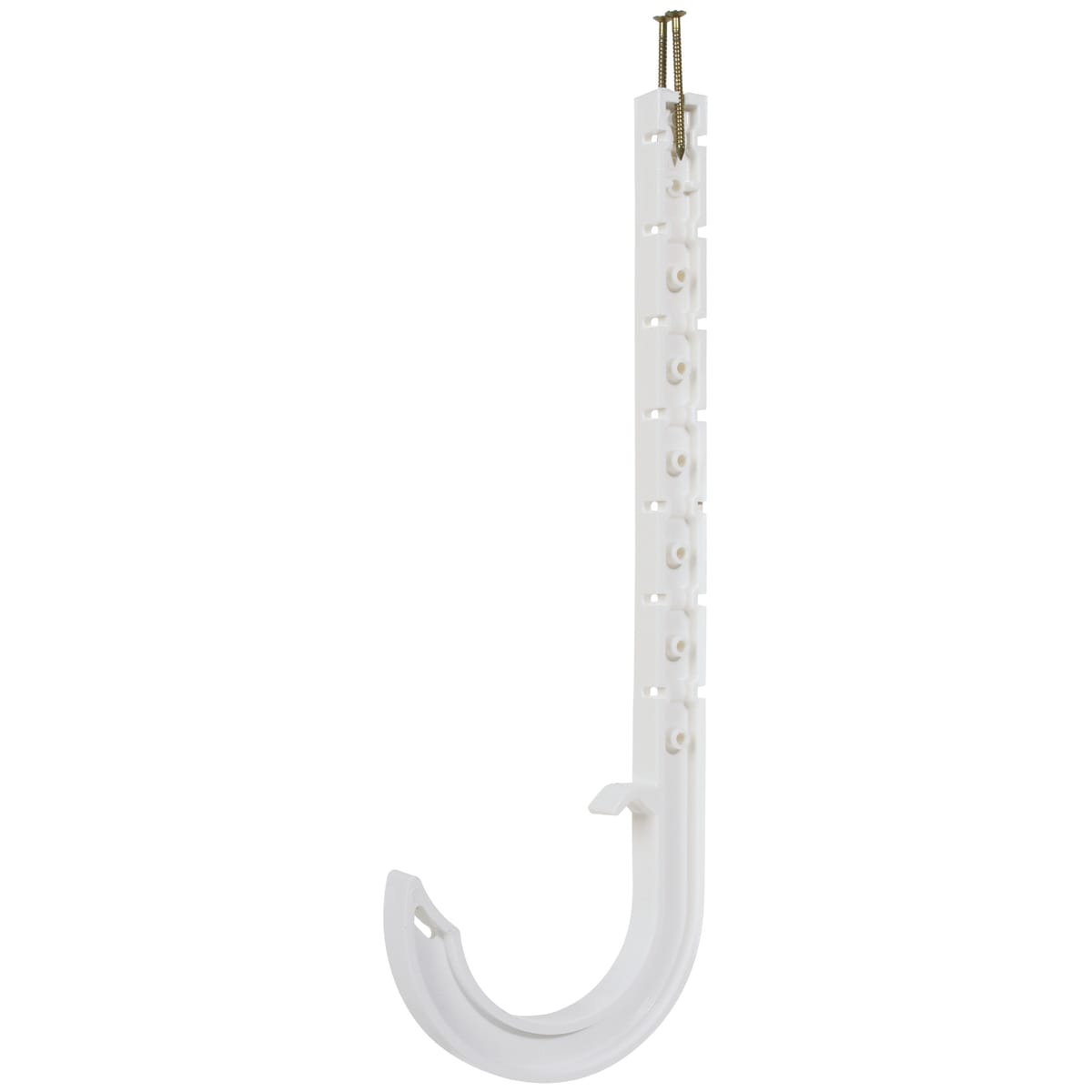

The SIOUX CHIEF 553-6W HangsTuff DWV pipe hanger is used to secure Schedule 40 DWV pipe. It is 100% corrosion proof and UV resistant. Impact resistant to 0 Deg F, it withstands temperatures up to 140 Deg F. It includes two preloaded rust resistant, zinc plated, ring shank nails for permanent installation.
- Compatible with Copper, PEX or CPVC, allow for thermal expansion and contraction
- Features I-beam design for strength and rigidity with a locking finger device
- Includes two preloaded rust Resistant, zinc plated, ring shank nails
Product Highlights
The Sioux Chief HangsTuff pipe hanger is corrosion proof, UV resistant and impact resistant. It is compatible with copper, PEX and CPVC.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 553-6W
-
Country of Origin: USA
Technical Specifications
-
Applicable Standard: IAPMO, CUPC
-
Brand Name: Sioux Chief
-
Series: 553
-
Type: I-Beam, J
-
Minimum Pipe Size: 1-1/2 Inch
-
Maximum Pipe Size: 1-1/2 Inch
-
Height: 10 Inch
-
Material: ABS Plastic (Body), Zinc Plated (Nail)
-
Finish: White
-
Load Rating: 40 Pound (Cradle), 15 Pound (Inverted)
-
Temperature Rating: 140 Deg F
-
Schedule: 40
-
Length to Center of Pipe: 8-5/8 Inch
-
Length to Gripping Finger: 7-1/2 Inch
-
Distance Between Nailways: 1 Inch
-
Application: DWV
-
Constructional Feature: UV-Resistant, Corrosion Proof, Impact Resistant
-
Pipe Tube Size: 1-1/2 in
-
Load Capacity: 40 lb Cradle/15 lb Inverted
-
Suitable For Use With: SCH 40/STD Pipe
-
Nominal Size: 1-1/2 in
-
Rod Size: 1-1/2 inch
-
Temperature Range: 0 - 140 Deg F
-
Maximum Load: 40 lb. (Cradle), 15 lb. (Inverted)
-
Maximum Temperature: 140 Deg F
-
Overall Height: 10 inch
-
Nail Length: 1-5/8 inch
-
Standards: ASTM D 3965-88, ASTM D 648-82, ASTM D 638-90
-
Compatible with: 1-1/2" CTS copper pipes, PEX, CPVC
-
Hanger material: ABS (UV- and impact-resistant)
-
Nail: rust-resistant 1-5/8"
-
Max. ambient temperature: 140F
-
MPN: 553-6W
-
Country of Origin: United States
